Greisinger GMH3851 Moisture meter Building moisture reading range 0 up to 0.5 vol% Wood moisture reading range 0 up to 1
EAN:
Part number:
Item no:
Number
Total (€ 410.92 / piece)
€ 410.92
plus VAT.
Only 2 Piece(s) available
Highlights & Details

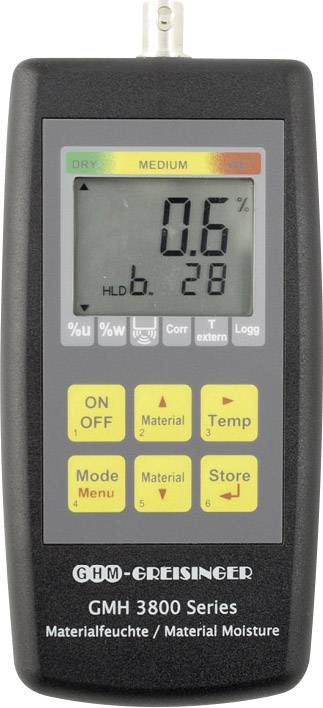

Greisinger resistive material humidity and temperature measuring device GMH 3851
- Suitable for
Technical specifications
- Measuring principle humidity: Resistive material moisture measurements according to DIN EN 13183-2:2002
- Measuring principle temperature: external (thermocouple, NiCr-Ni (type K)) internal (NTC)
- Characteristics: 494 material characteristics
- Measuring range: Humidity: 0.0... 100% u (material humidity) 0.0… 50% w (water content (depending on the respective material characteristics)
- Temperature measurement range: -40,0 ... +200.0°C (-40,0 ... +392,0°F)
- Moisture evaluation: in 9 level (wet... dry)
- Solution: 0.1% or 0.1 °C (0.1 °F)
- Device accuracy (at nominal temperature) Wood: ± 0.2% material humidity (deviation from the respective characteristic in the range 6 ... 30%)
- Device accuracy: ± 0.2% (at nominal temperature) construction material humidity (deviation from the respective characteristic)
- Device accuracy (at nominal temperature) Temperature: (external) ± 0.5 % v. MW ± 0.3 °C
- Temperature compensation automatic or manual
- Sensor connection humidity: BNC
- Temperature sensor connection: thermal voltage free NiCr-Ni-socket
- Permissible operating temperature: -25 ... 50 °C
- Display: two 4-digit LCD displays (12.4 mm or 7 mm high), as well as further note arrows
- Output: 3-pin. Jack socket Ø 3.5 mm, optional serial port or analogue output
- Serial interface: electrically isolated interface converter 3100, GRS 3105 or USB 3100N (accessory) directly to the RS232 or USB interface of a PC can be connected
- Analogue output. 0 - 1 V freely scalable
- Power supply: 9V battery, additional power supply socket for external 10,5-12 V DC power supply (suitable power supply: GNG 10/3000)
- Power consumption: approx. 2.5 mA
- Housing: Shock-resistant ABS, front IP65, integrated suspension/Mounting Bracket
- Data logger: Yes
- Product type
Moisture meter
Manufacturer's standards (no certificate)
- Dim
(W x H) 71 mm x 26 mm
- Weight
285 g
- Features
Temperature reading
- Building moisture reading range (max.)
0.5 vol%
- Building moisture reading range (min.)
0 vol%
- Wood moisture reading range (max.)
100 vol%
- Wood moisture reading range (min.)
0 vol%
- Moisture reading range (max.) (misc.)
100 %
- Moisture reading range (min) (misc.)
0 %
- Width
71 mm
- Height
26 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1305335 Greisinger GMH3851 Moisture meter Building moisture reading range 0 up to 0.5 vol% Wood moisture reading range 0 up to 1
Description
The GMH 3830 and GMH 3851 offer decisive advantages in handling, user-friendliness, functional scope and accuracy. The absolute material moisture from 494 materials is displayed and can be convert automatically to the water content. The annoying use of conversion tables is now a thing of the past. The displayed humidity value, you will receive in addition a moisture evaluation (wet/moist/dry), which you informed about the state of the measured material.
This text is machine translated.
This text is machine translated.
Features
- Automatic-off function
- Automatic hold
- Battery status indicator
- Location
