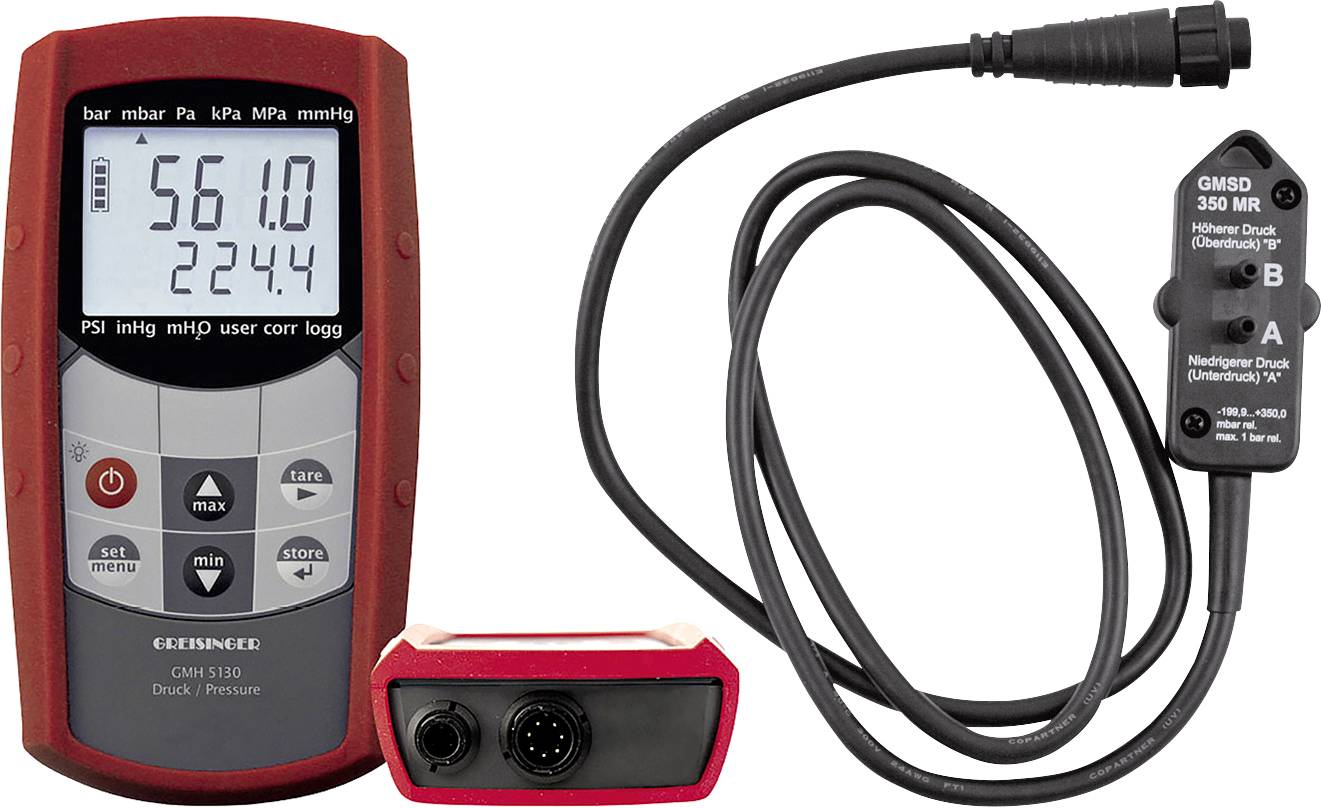

Greisinger GMH5130 Pressure gauge Calibrated to (ISO standards) Air pressure 0 - 1000 bar
EAN:
Part number:
Item no:
Technical specifications
- Handheld meter
- Sensor connections 1
- Suitable sensors: GMSD/MSD sensors, available measuring ranges (resolution) from -1.999 … 2.500 mbar (0.001 mbar) to 0 … 1000 bar (1 bar)
- Display units: * Depending on measurement range selection (sensor dependent): Mbar, bar, Pa, kPa, MPa, mmHg, inHg, PSI, mH2O
- Measurement frequency: 4 measurements / s or 1000 measurements / s.
- Mean filter: Adjustable: 1 ... 120 s
- Accuracy ± 0.1 % FS ± 1 digit
- Sensor connection: 1x 7-pin Bayonet connection
- Output 4-pin Bayonet connection for serial interface
- 4 ½-digit 7-segment display, illuminated (white)
- Working conditions: -25 ... 50 °C, 0 ... 95 % RH (non-condensing)
- Protection class IP65/IP67
- Dimensions: 160 x 86 x 37 mm (H x W x D) including Silicone protection cover (red)
- Hand-held measuring pressure sensor
- Measuring range: -199.9...+350.0 mbar
- Overload max. bar
- Resolution 0.1mbar
- Hysteresis / linearity: ± 0.2 % FS
- Temperature influence (from 0 - 50 °C)± 0.4 % FS
- Sensor: Piezoresistive pressure sensor
- 2 pins made of nylon for 6 x 1 mm 1 tubes
- Working temperature: 0 ... +50 °C
- Relative humidity: 0 ... +95 % r.F. (non-condensing)
- Storage temperature: -25 ... +70 °C
- ABS casing with suspension loop
- Power supply (details)
2x AAA battery
- Product type
Pressure gauge
- Reading range
0 - 1000 bar
- Unit of measurement
Air pressure
- Pneumatic connection
External sensor
- Reading range
-1,999 mbar up to 1000 bar
ISO standards
- Display range
-19999 to +19999
- Print resolution
1 bar
- Sensor
7-pin Bayonet connection
IP65
IP67
- Dim
(L x W x H) 160 x 86 x 160 mm
- Weight
340 g
- Accuracy
0.1 %
- Reading range (max.)
1000 bar
- Reading range (min.)
0 bar
- Width
86 mm
- Height
160 mm
- Length
160 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3014298 Greisinger GMH5130 Pressure gauge Calibrated to (ISO standards) Air pressure 0 - 1000 bar
Information
Information 3014298 Greisinger GMH5130 Pressure gauge Calibrated to (ISO standards) Air pressure 0 - 1000 bar
Description
The handheld meter for AC sensors supports you with demanding pressure measurement tasks. Extremely robust connectors, the silicone protection sleeve, background lighting and the waterproof construction also permit the use in harsh industrial and field conditions. Plastic pressure sensor with hose connection for GMH 5xxx series. 1 m PVC connection cable, shielded with molded 6-pin mini DIN plug and lock.
This text is machine translated.
This text is machine translated.
Features
- Auto-Off-Function
- Battery change display
- Hold function
- Min-/Max-Wertspeicher.
- Tare function
- Peak-detect (peak value storage)
- Offset-/slope correction
- Relative pressure sensors for over/under and differential pressure measurements
- Board with amplifier and data storage for sensor data (measuring range, calibration, etc.) is integrated in the sensor housing
Scope of delivery
- Batteries
- Hand-held measuring pressure sensor
- Operating instructions
- Protective sleeve
