Greisinger GOF 175 Surface probe -70 up to 200 °C Sensor type Pt1000
EAN:
Part number:
Item no:
Total (€ 77.30 / piece)
€ 77.30
plus VAT.
14-day return policy included
Highlights & Details
Greisinger surface sensor for solid surfaces GOF 175-KS
- Sensor type Pt1000
- -70 up to 200 °C
- 3.5 mm jack
Technical specifications
- Temperature sensor Pt1000
- Measuring range: -70 to +200 °C
- With 3.5 mm jack plug
- Product type
Surface probe
- Sensor type
Pt1000
- Pick-up time (details)
15 s
- Temperature reading range (min.)
-70 °C
- Temperature reading range (max.)
200 °C

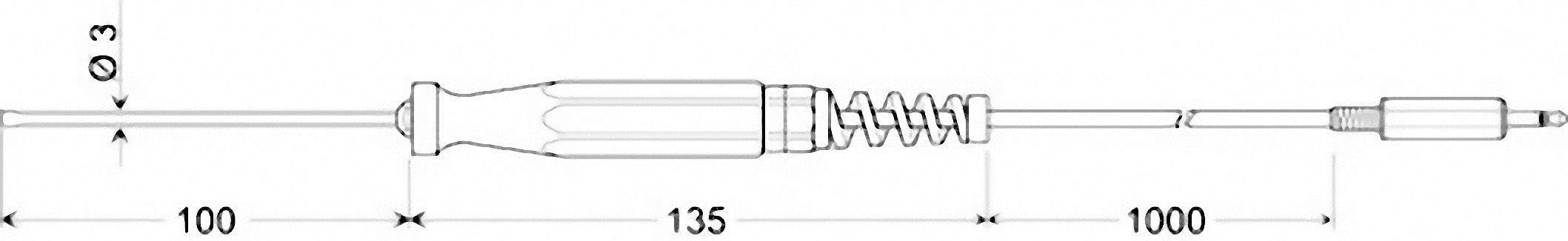

- Dim
(Ø x L) 3 mm x 235 mm
- Probe length
100 mm
Manufacturer's standards (no certificate)
- Connector
3.5 mm jack
- Temperature reading range
-70 up to 200 °C
- Temperature accuracy
± 0,3 °C
- Compatible with (details)
Suitable for all Greisinger temperature measuring devices with connection for Pt1000-sensor with 3.5mm jack plug
- Length
235 mm
- (Ø)
3 mm
- Connection
Jack plug, 3.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 649975 Greisinger GOF 175 Surface probe -70 up to 200 °C Sensor type Pt1000
Description

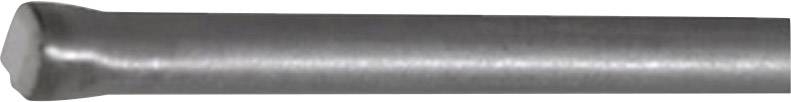

Surface probe with inscribed on the verbautem Pt1000-ceramic sensor. The sensor consists of a VA 4-tube with a diameter of 3 mm with flattened ends. The 1 m long silicone cable with gold-plated 3.5mm jack plug offers flexibility in a variety of situations.
This text is machine translated.
This text is machine translated.
Features
- Ceramic plates for the support on the surface
- 1m silicone cable
- 3.5mm gold plated jack plug
