Greisinger GPHU 014 MP/BNC pH meter pH
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 326.89 / piece)
€ 326.89
plus VAT.
Highlights & Details

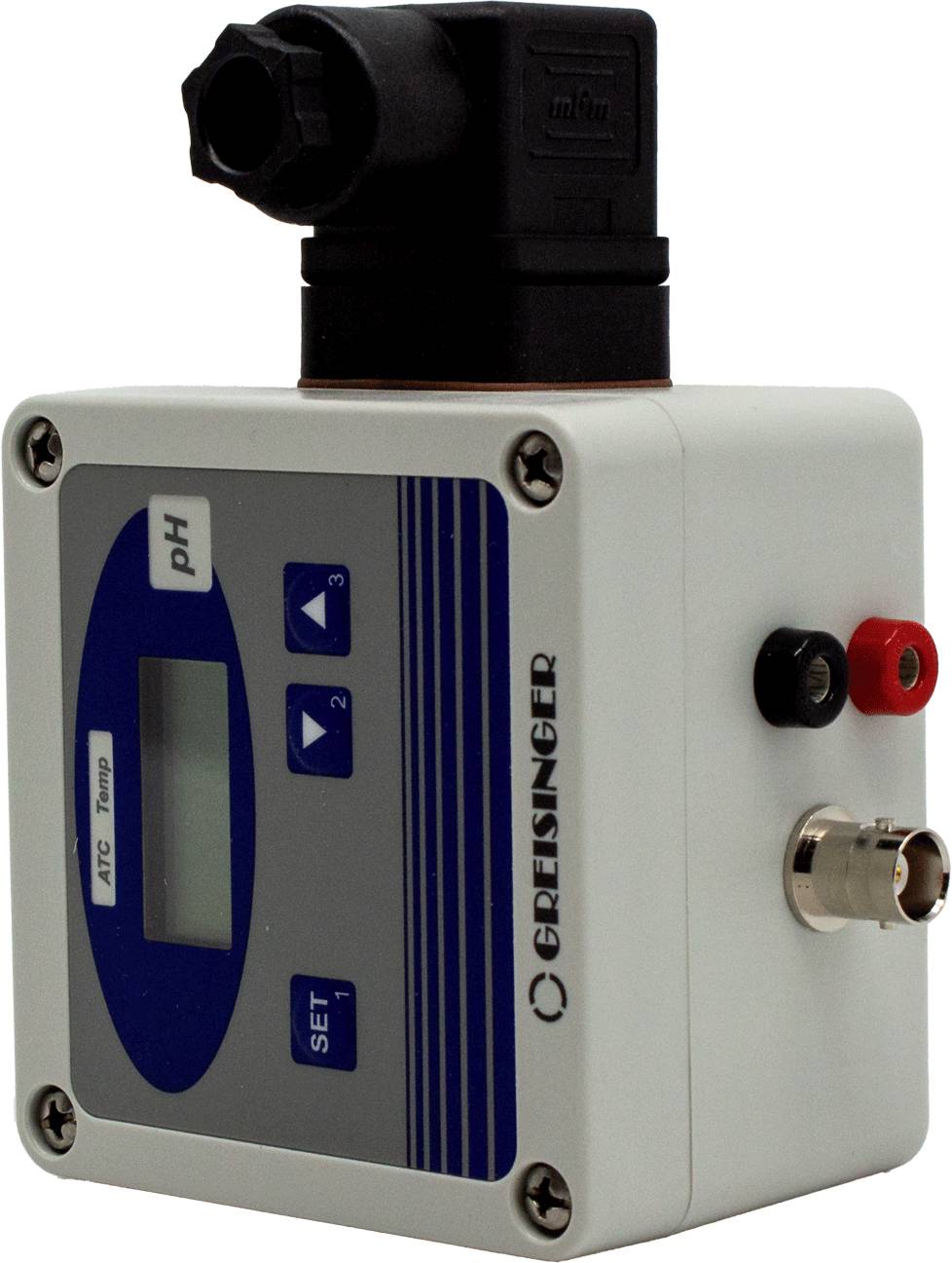

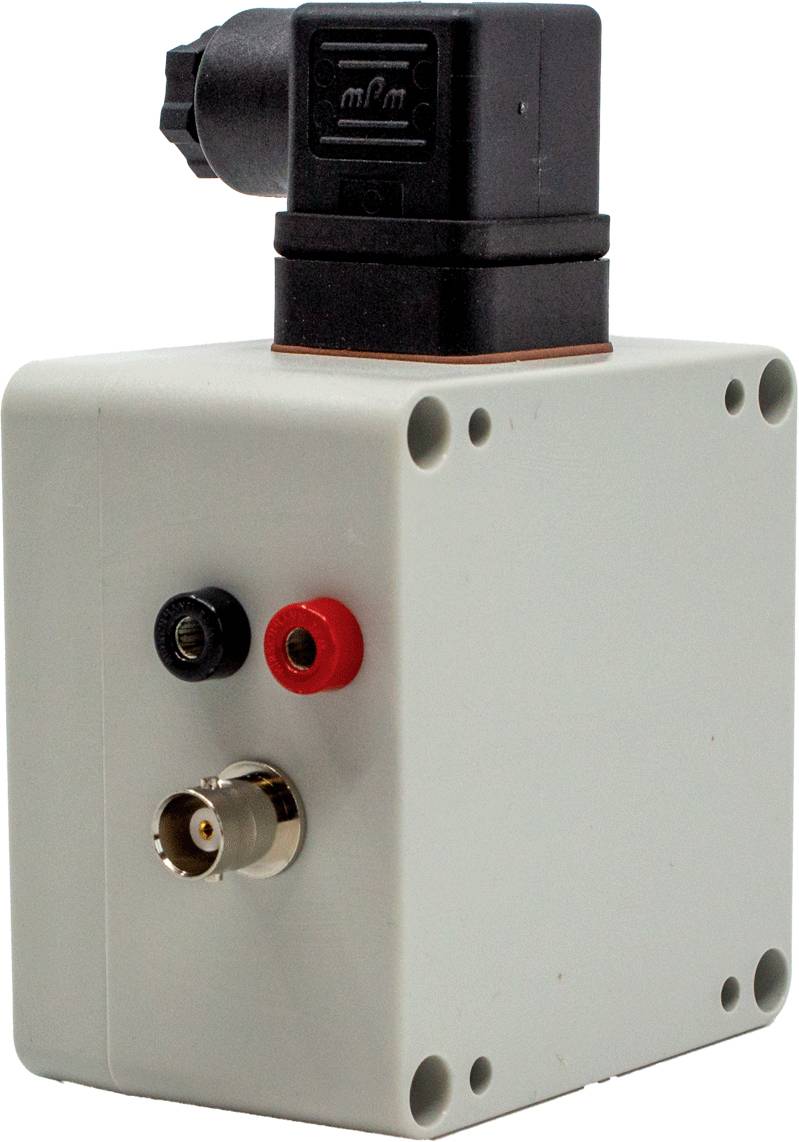

Greisinger pH-measuring transducer with display GPHU 014 MP-BNC
- On-site display
- Automatic or manual temperature compensation
- 2-point calibration
Technical specifications
- Output signal: 4 - 20 mA (2-wire, standard)
- Input isolated
- Power supply: 12 to 30 V DC
- Permissible load: RA [Ω] ≤ (UV [V] - 12 V)/0.02 A
- Suitable for any standard electrode (not included)
- Product type
pH meter
- Reading type
pH
- Display
Digital
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 55 x 82 x 80 mm
- pH reading range
0.00 - 14.00 pH
- pH reading range (max.)
14.00 pH
- pH reading range (min.)
0.00 pH
- Width
82 mm
- Height
80 mm
- Length
55 mm
Documents & Downloads
Datasheet
Datasheet 650869 Greisinger GPHU 014 MP/BNC pH meter pH
User & Safety Instructions
User & Safety Instructions 650869 Greisinger GPHU 014 MP/BNC pH meter pH
Description
High-quality pH measuring transducer with automatic temperature compensation (in the case of infected temperature sensor). The device is capable of calibration and the sensor input is galvanically isolated.
This text is machine translated.
This text is machine translated.
Features
- Sensor input: BNC
- For external Pt1000 sensors with BNC connector
- Sensor can be connected
Hints
Sensors and sensor not included in delivery
