Greisinger GTF 401 1/10DIN Immersion probe -50 up to 400 °C Sensor type Pt100
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Temperature sensor GTF 401 1/10DIN
- Sensor type Pt100
- -50 up to 400 °C
- Mini DIN connector
Technical specifications
- Specified accuracy of 1/10 DIN in the range: 0 100 ºC
- Accuracy range 0 100 ºC: 1/10 DIN
- Class B ± (0.03 + 0.0005 x t)
- Accuracy remaining range: DIN class B ± (0.3 + 0.005 x t) herein is the amount of the temperature in ºC
- Product type
Immersion probe
- Sensor type
Pt100
- Temperature reading range (min.)
-50 °C
- Temperature reading range (max.)
400 °C
- Dim
(Ø x L) 3 mm x 150 mm
Manufacturer's standards (no certificate)
- Connector
Mini DIN connector
- Temperature reading range
-50 up to 400 °C
- Length
150 mm
- (Ø)
3 mm
- Temperature
-50 to +400 ºC
- Connection
Mini-DIN
Documents & Downloads
Datasheet
Datasheet 121536 Greisinger GTF 401 1/10DIN Immersion probe -50 up to 400 °C Sensor type Pt100
User & Safety Instructions
User & Safety Instructions 121536 Greisinger GTF 401 1/10DIN Immersion probe -50 up to 400 °C Sensor type Pt100
Description
Immersion sensor for gases and liquids with 1 m PVC cable and mini DIN connector.
Features
- Sensor tube V4A

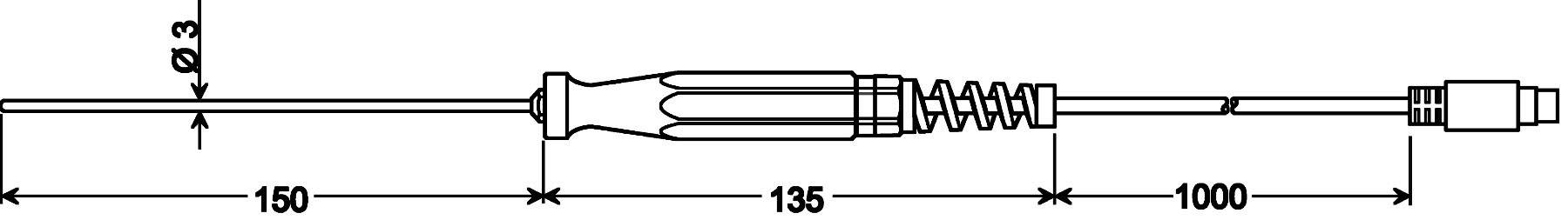

- Nominal length 150 mm, Ø 3 mm.
