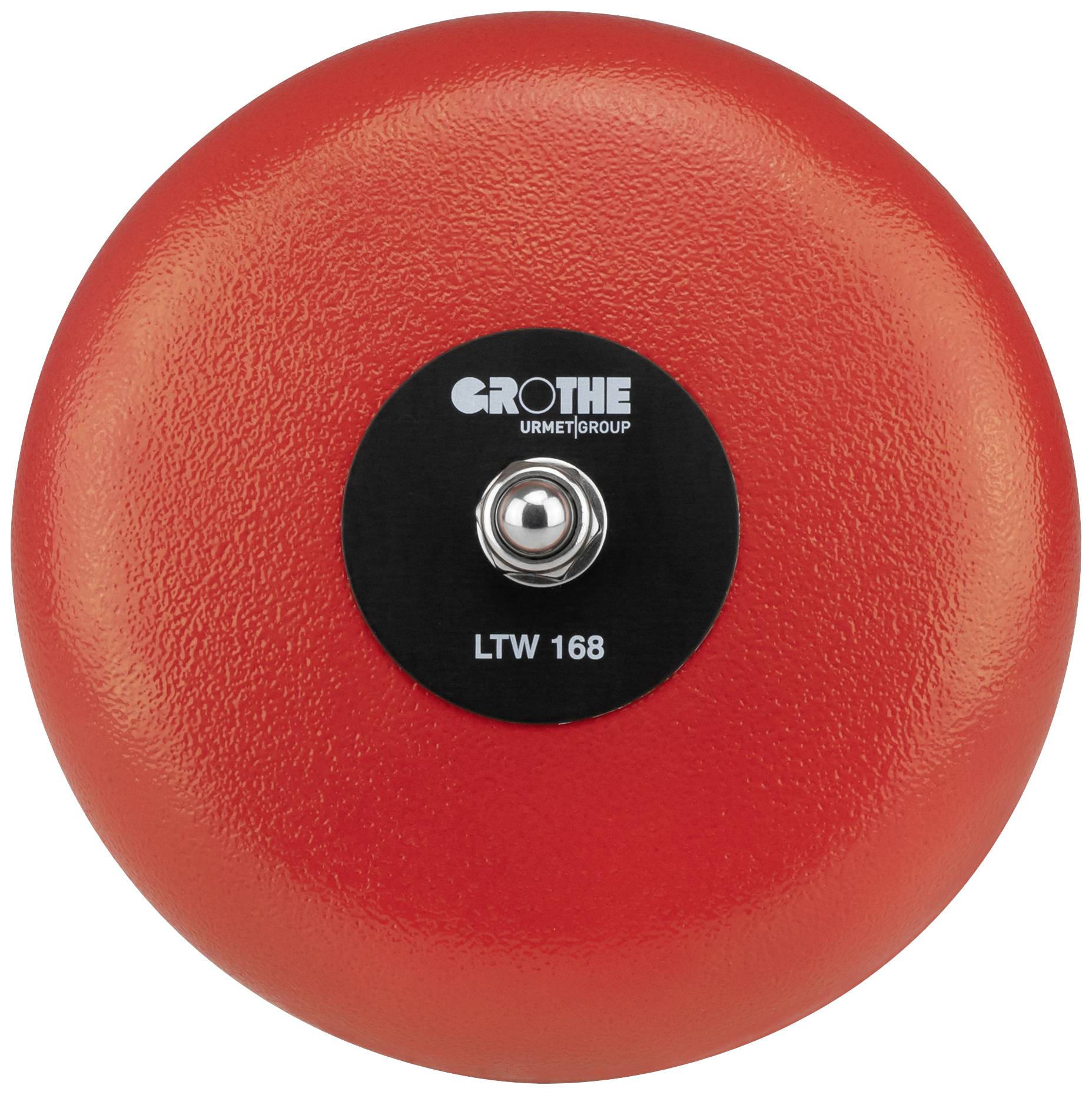

Grothe 22562 Bell apparatus 100 dBa Red
EAN:
Part number:
Item no:
Highlights & Details
Grothe large-alarm bell LTW 168 RT 12V AC
- Large-alarm bell 12 V AC/860 mA
- Continuous operation
- IP66
Technical specifications
- IP66 protection rating
- Protection class: II
- Sound bowl: Painted steel
- Mounting hole spacing 91 mm
- Operating mode: Continuous operation
- Product type
Bell apparatus
- Operating voltage
12 V AC
- Current consumption
860 mA
- Volume
100 dBa
- Factory colour
Red
- Mounting type
Fixing holes
- Depth
78 mm
- (Ø)
168 mm
- Dim
(Ø x D) 168 mm x 78 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2903425 Grothe 22562 Bell apparatus 100 dBa Red
Description
The robust and compact "LTW 168" series from Grothe is specially designed for the application in industrial and civil service and has a high degree of protection (IP66). These products are therefore suitable for indoor and outdoor use.
The electronic large-scale bell system is available in three different colors in order to meet the individual requirements during operation.
Within the series there are two variants with DC voltage and three variants with AC voltage.
The bell of the type "LTW 168 RT 12V AC" has a voltage supply of 12 V AC (860 mA), 50 Hz and a volume of maximum 100 dB(A).
The signal bell is particularly well suited for break signaling or start-up warning in production environments, schools or other places where regular acoustic signals are required.
This text is machine translated.
The electronic large-scale bell system is available in three different colors in order to meet the individual requirements during operation.
Within the series there are two variants with DC voltage and three variants with AC voltage.
The bell of the type "LTW 168 RT 12V AC" has a voltage supply of 12 V AC (860 mA), 50 Hz and a volume of maximum 100 dB(A).
The signal bell is particularly well suited for break signaling or start-up warning in production environments, schools or other places where regular acoustic signals are required.
This text is machine translated.
Scope of delivery
- Large bell
Hints
Not suitable for installation in vehicles.
