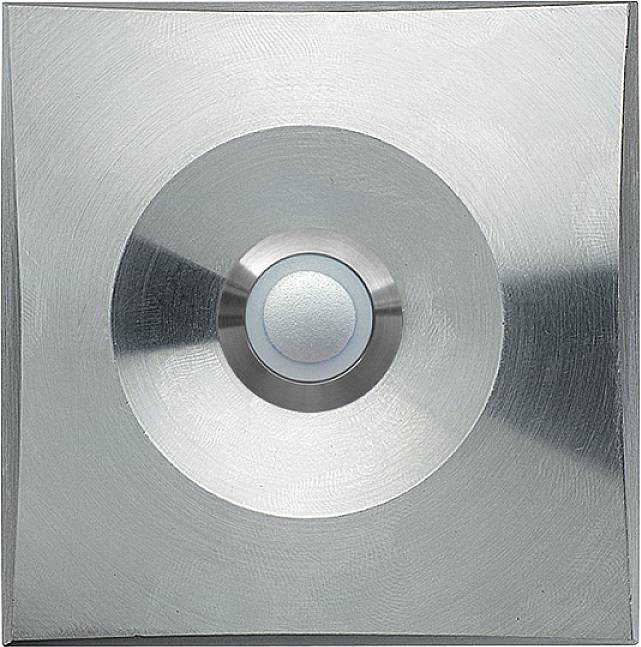

Grothe 55544 Bell Stainless steel
EAN:
Part number:
Item no:
Highlights & Details
LED floor plate ETA S200 LEDs
- Solid stainless steel
- Installation only on flush-mounted socket, installation depth approx. 10 mm
- Incl. PROTACT 230 LED
- This text is machine translated.
Technical specifications
- Switching power max. 12 V AC/DC 1.5 A
- Switching capacity min. 5 V / 1 mA
- Button: PROTACT 230 LED
- Product type
Bell
- Material
Stainless steel
- Factory colour
Stainless steel
- No. of keys
1 Buttons
- Backlit
Yes
IP40
- Mounting depth
13 mm
- Width
82 mm
- Height
82 mm
- Depth
16 mm
- Dim
(W x H x D) 82 x 82 x 16 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2386861 Grothe 55544 Bell Stainless steel
User & Safety Instructions 2386861 Grothe 55544 Bell Stainless steel
Description
Features
- Lighting: LED, white
- Representative stainless steel housing in solid design
- Bell contact in noble appearance, stainless steel, extremely vandal-proof through smooth contours and precise button guide
- Mounting on flush-mounted socket
- Including PROTACT 230 LED and pre-mounting plate.
