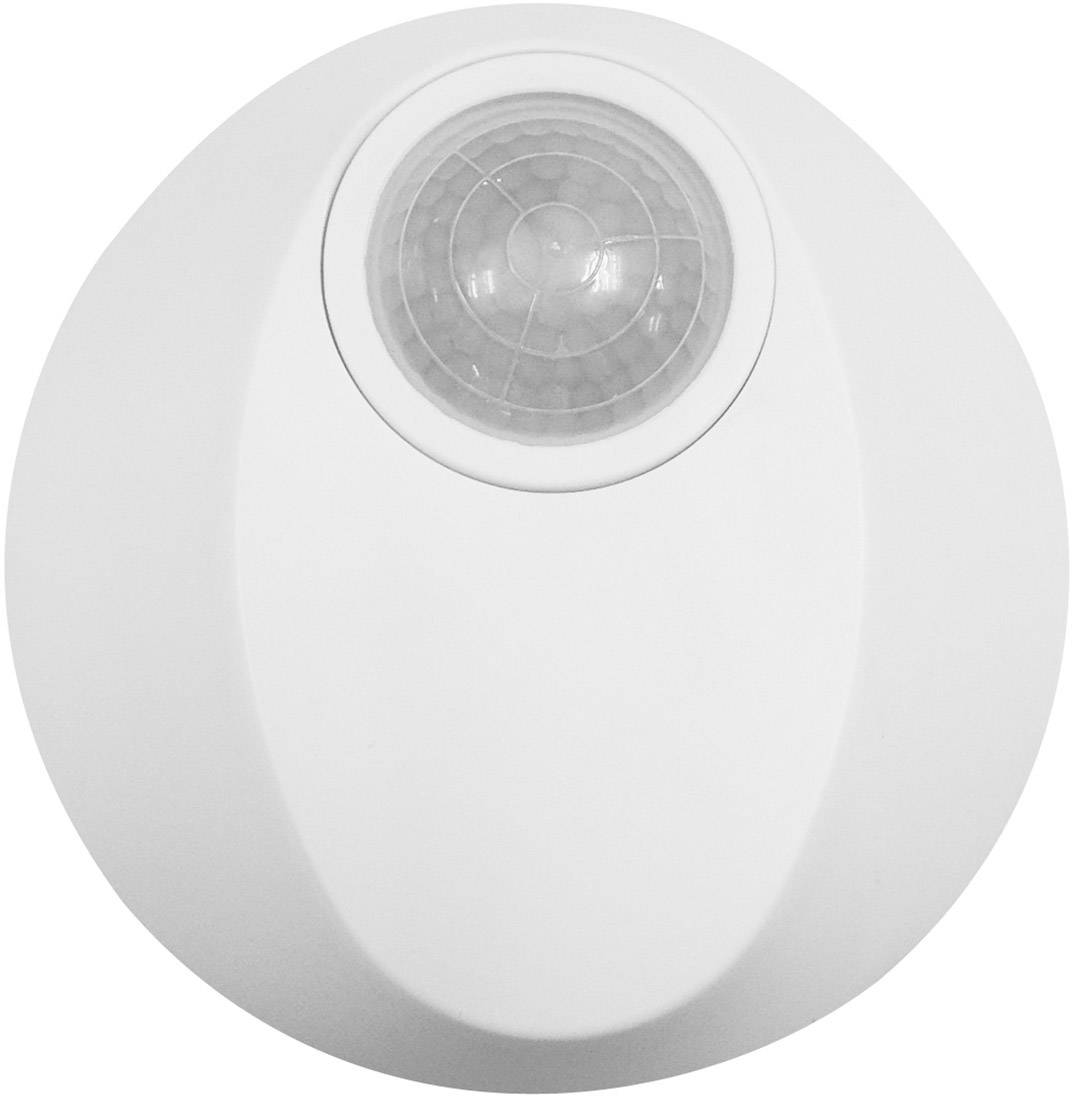

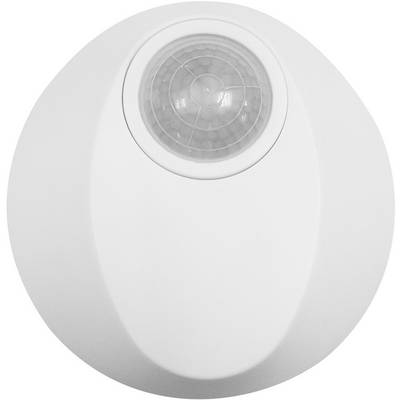

Grothe 94503 Surface-mount Motion detector 360 ° Relay White IP54
EAN:
Part number:
Item no:
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
14-day return policy included
Highlights & Details
Presence detector surface/ceiling
- Detection 360 degrees at 10m high
- 1 potential behafteter contact
- Response sensitivity can be set continuously
Technical specifications
- Product type
Motion detector
- Detection angle
360°
16 m
- Used at
Outdoors
Indoors
- Mounting type
Surface-mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity (energy saving bulbs)
max. 600 VA / 400 W
- Switching capacity (light bulbs)
max. 2000 W
- Switching capacity (halogen bulbs)
max. 1000 W
- Switching capacity (LED)
max. 400 W
- Switching capacity (light tubes)
max. 1000 W
- Twilight settings
10 lx - 2000 lx
- Time settings
Approx. 5 s - 30 min
- Factory colour
White
IP54
- Operating temperature
0 °C - +45 °C
- Height
45 mm
- (Ø)
115 mm
- Dim
(Ø x H) 115 mm x 45 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1560095 Grothe 94503 Surface-mount Motion detector 360 ° Relay White IP54
Description
A high-performance relay and an advanced technology make it possible for all types of lights to control. Fast and easy setting is a remote control available. If the lighting exceeding the set value, the detector by a button (NC) can be controlled. With the remote control, it is possible to switch the light. The value of the ambient lighting can be programd with the remote control. For testing and for setting is a red LED indicator built-in. A plug connection terminal allows easy and quick wiring.
The McGuard family is now in 7 different model series, each one on its territory specialized and functional each other
Tuned. The devices combine the grothe reliability in the daily use with a high use installation-friendliness and ease of use.
This text is machine translated.
The McGuard family is now in 7 different model series, each one on its territory specialized and functional each other
Tuned. The devices combine the grothe reliability in the daily use with a high use installation-friendliness and ease of use.
This text is machine translated.
Features
- Detection range 16 m
- Passive infrared presence detector for high ceilings
- Protection class IP54.
Scope of delivery
- Detector
- Fixings
- 2x lens covers
- User manual.
