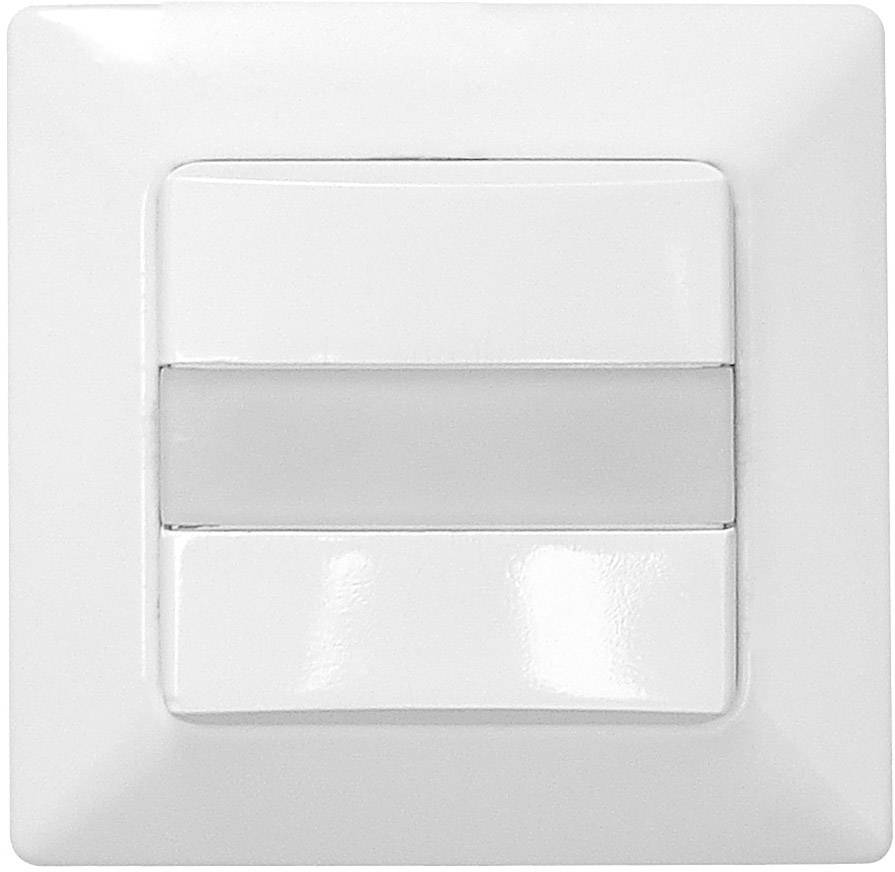

Grothe 94522 Flush mount PIR motion detector 180 ° Relay White IP40
EAN:
Part number:
Item no:
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
14-day return policy included
Highlights & Details
Motion detector wall/Installation
- For installation in switch box
- Fits in a 50 mm switch program
- Passive infrared motion detector
Technical specifications
- Dimensions: 80 x 80 x 51.5 mm
- Product type
PIR motion detector
- Detection angle
180°
8 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity (energy saving bulbs)
max. 600 VA / 400 W
- Switching capacity (light bulbs)
max. 2000 W
- Switching capacity (halogen bulbs)
Max. 1000 W/max. 1000 VA/600 W
- Switching capacity (LED)
max. 400 W
- Switching capacity (light tubes)
max. 900 VA
- Twilight settings
10 - 2000 lx
- Time settings
30 s to 10 min
- Factory colour
White
IP40
- Type
Flush-mounted motion detector
- Width
90 mm
- Height
50 mm
- Dim
(W x H) 90 mm x 50 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1560100 Grothe 94522 Flush mount PIR motion detector 180 ° Relay White IP40
Description
The McGuard is a wall-mounted presence detectors for the installation in switch boxes. It is an ideal way in small rooms such as offices, apartments, corridors and stairwells.
The elegant shapely casing with built-in lens and invisible buttons to prevent the illegal adjusting the settings.
Superior lenses patterns and well distributed and concentrated detection beams provide a high sensitivity. In addition to the PIR detection, the detector can also be controlled by sounds. The ambient lighting can be set for a flexible application. There are three different operation modes are available. Manual ON/Auto/Manual OFF. In addition, the detector with a button can be controlled. The decorative frame of 50 x 50 mm fits into most of the European standard switch programs.
This text is machine translated.
The elegant shapely casing with built-in lens and invisible buttons to prevent the illegal adjusting the settings.
Superior lenses patterns and well distributed and concentrated detection beams provide a high sensitivity. In addition to the PIR detection, the detector can also be controlled by sounds. The ambient lighting can be set for a flexible application. There are three different operation modes are available. Manual ON/Auto/Manual OFF. In addition, the detector with a button can be controlled. The decorative frame of 50 x 50 mm fits into most of the European standard switch programs.
This text is machine translated.
Features
- Cavity wall box installation
- Response sensitivity can be set continuously.
Scope of delivery
- Detector
- Lens cover
- User manual.
