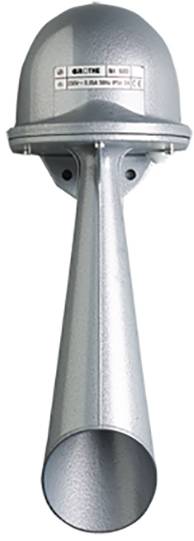

Grothe Hooter 33017 HUPE 680 230V AC Non-stop acoustic signal 230 V 100 dB
EAN:
Part number:
Item no:
Highlights & Details
Grothe large horn HORN HORN 680 230V AC
- With waterproof membrane grommet for cable entryVery high volume 100 dB(A)Continuous operation 100% EDDIN VDE 0700, EN60335-TESTED
Technical specifications
- Dimensions 440 x 140 x 160 mm
- Product type
Hooter
- Operating voltage
230 V
- Max. current consumption
0.15 A
- Signal type
Non-stop acoustic signal
- Height
160 mm
IP54
- Dim
(L x W x H) 440 x 140 x 160 mm
- Factory colour
Grey
- Case colour
Grey
- Length
440 mm
- Width
140 mm
- Material
Light metal
- Type
HUPE 680 230V AC
- Noise emission (max.)
100 dB
- Weight
1 kg
- Max. temperature
50 °C
- Min. temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595097 Grothe Hooter 33017 HUPE 680 230V AC Non-stop acoustic signal 230 V 100 dB
Description
Grothe large horn for continuous operation.
This text is machine translated.
This text is machine translated.
Features
- HORN 680 230V AC - LARGE HORN 230 V AC (0.15A)Light-metal casing with gray hammer-finishRadio interference suppressedWith funnelWall mounting.
Scope of delivery
- Horn
