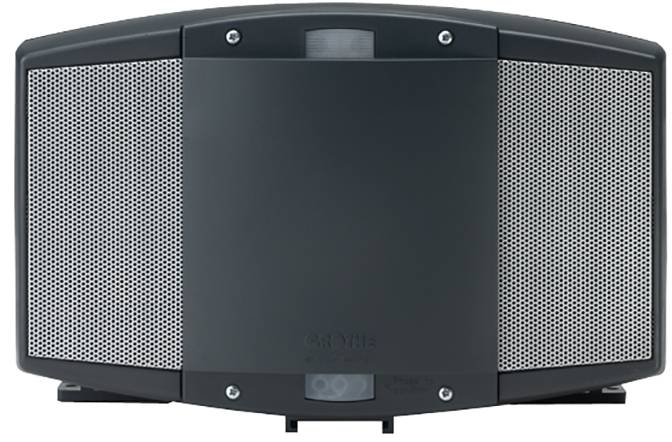

Grothe Hooter PSG 4.0-100 37410 12 V, 24 V 105 dB
EAN:
Part number:
Item no:
Highlights & Details
Grothe Power-Sound sensor PSG 4.0-100
- High volume 80 - 105 dB (max. 115 dB)Universal use in indoor and outdoor areasDuty cycle 100%8 alarm tones, 8 melodies
Technical specifications
- Volume 80 - 105 dB(A)Housing: Non-plasticLoudspeaker grillee: Anodized aluminumColor: Anthracite RAL 7016Dimensions 158 x 243 x 80 mm
- Product type
Hooter
- Operating voltage
12 V
24 V
- Max. current consumption
1 A
- Colour
Green
- Features
LED
- No. of tones
8
- Factory colour
Anthracite
- Lighted picture
LED flash
- Material
Plastic
Aluminium
- Signal type
Multi-tone signal
- Type
PSG 4.0-100
- Noise emission (max.)
105 dB
- Weight
1.3 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595105 Grothe Hooter PSG 4.0-100 37410 12 V, 24 V 105 dB
Description
Universal sound generator with very high volume, many distinctive signal tones and excellent installation flexibility for use in indoor and outdoor areas (e.g. Schools, airports, industrial sites, public buildings, etc.).
This text is machine translated.
This text is machine translated.
Features
- Power-Sound sensor 12 - 24 V AC/DC (1 A)Attractive design for universal use in industry, trade or householdColor anthracite (RAL7016) with stable loudspeaker grillees made of high-quality anodized aluminum double-pressure chamber loudspeaker systemUp to 115 dB(A) with integrated power booster system (max. 10 min.) or up to 105 dB(A) in continuous operationKEMA-tested according to EN 60065 (safety) and 61000-6-3/6-1 (EMC)Housing made of robust ASA-LuranFunctions:8 siren/alarm tones, 2 bell/horn tones, 5 melodies (two-tone, three-tone, Westminster...), Beep tone2 separate channels for call subs. (Priority alarm tone)Adjustable volume for each channelSignal duration can be set (as long as control or 30 s or a sequence of melodies)Time for volume increase in alarm tones continuously adjustable up to 30 s.Manual switch-off of the signal tone possible with integrated button (acknowledgment function)Including green ready-to-use LEDWith switchable LED flashInstallation:Trigger Signal tone depending on model: Potential-free, 12/24 V AC/DC or 230 V ACTable mounting, wall mounting (vertical or 30° angle), ceiling mounting (horizontal or 60° angle)WIRING OPTIONS: A, B, C
Scope of delivery
- Power-Sound sensor
