Grothe HT 623 Door intercom accessories Indoor panel White (matt)
EAN:
Part number:
Item no:
Highlights & Details

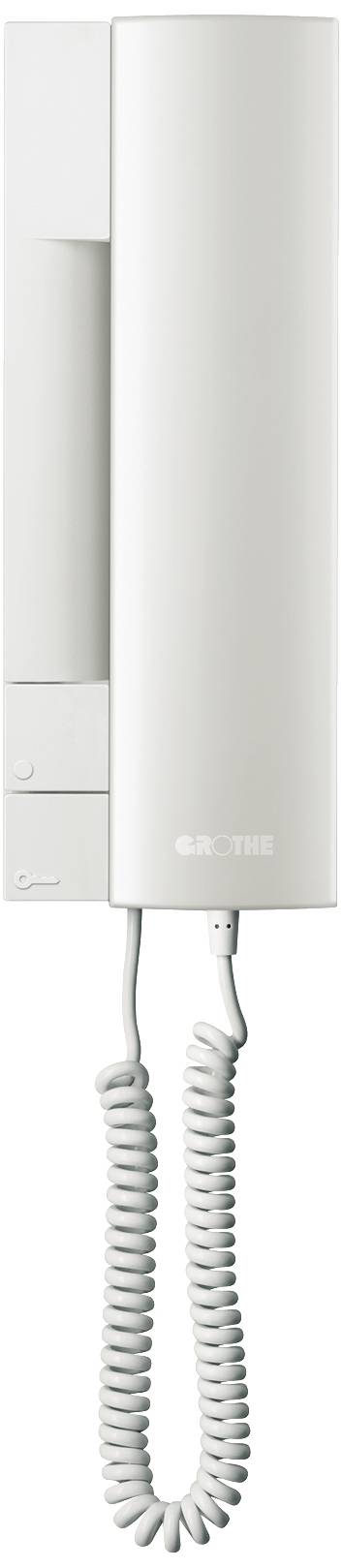

Universal house phone
- For 4+n systems of all well-known manufacturersGrothe, Ritto, Siedle, STR1+N, 2+N of certain manufacturersWith 6 bits. Buzzer
Technical specifications
- Material: ABS, white / matt
- Product type
Door intercom accessories
- Component
Indoor panel
- Units
1
- Transfer type
Corded
- Mounting type (interior)
Wall
- Factory colour
White (matt)
- Power supply (LOV)
mains-powered
- Width
53 mm
- Height
220 mm
- Depth
83 mm
- Weight
0.32
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2749530 Grothe HT 623 Door intercom accessories Indoor panel White (matt)
Description
HT 623 – universal house phone: For 4+N systems; Grothe, Ritto, Siedle, STR; 1+N, 2+N different manufacturers; incl. Buzzer 220 x 83 x 53 mm
This text is machine translated.
This text is machine translated.
Features
- Installation in 4+N systems (5-wire audio) and 1+N (2 wires), as well as 2+N systems (3 wires)Ability to receive conventional calls through buzzer or electronic calls through the handset speakerSet or switch off the electronic call using a three-digit selector switch:• Max. Volume• Min. Volume• Call switch-off (displayed with the exit of a red surface from the housing)Volume control of the incoming voice line (handset speaker).Volume control for the outgoing voice line (microphone of the handset)Electronic call possibleConfiguration by jumpersDoor opener buttonPotential free buttonWall mounting for UP-round socket.
Scope of delivery
- House telephone
