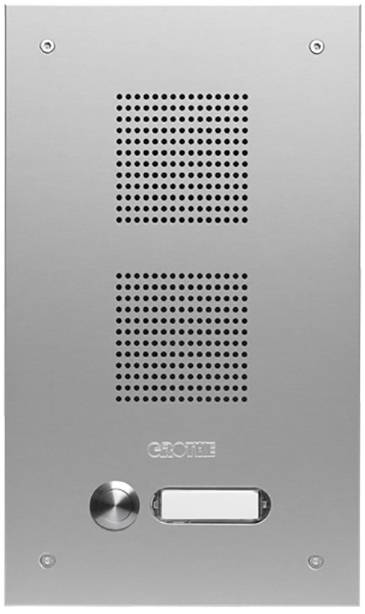

Grothe TS 787 1-1 Door intercom Outdoor panel Silver
EAN:
Part number:
Item no:
Highlights & Details
Grothe EV1 TS 787 1-1 door station
- One-rowFlush-mounted, incl. flush-mounted boxWired completely mounted
Technical specifications
- Product type
Door intercom
- Component
Outdoor panel
- Units
1
- Features
Backlit nameplate
- Mounting type (interior)
Flush mount
- Mounting type (outdoor)
Flush mount
- Material (external)
Aluminium
- Factory colour
Silver
- External unit dims.
160 x 270 x 57 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595184 Grothe TS 787 1-1 Door intercom Outdoor panel Silver
Description
THE ROBUSTA series is equipped with in-house developments, such as the buttons of the Protact series or the LED name plate.Due to the tactile switching behavior of the buttons, these door stations are ideal for the use of bus systems, not only from Grothe, but also from other manufacturers. The patented loudspeaker adapters offer optimum acoustics and the best protection against weather influences with the separate chambers as well as the water-drain system.TS 787 1-1 - Door station EV1: silver anodized EV1; single row; flush-mounted, incl. flush-mounted box; 1 bell button; wired completely mounted.
This text is machine translated.
This text is machine translated.
Features
- Flush-mounted flush-mounted door stationStable 2.5 mm front plate made of aluminumSurface: Aluminum silver anodized (EV1)With galvanized flush-mounted boxPROTACT bell button with tactile feedbackName badges with LED lightingSimple name plate change from the frontIntegrated, pre-mounted universal speaker adapterUniversal speaker adapter with:Patented water drain systemSeparate chambers for loudspeaker and microphone for optimum acoustic decouplingStainless steel protective grid against penetration of foreign bodiesMaterial AluminiumSilver anodized EV1.
Scope of delivery
- Door station EV1
