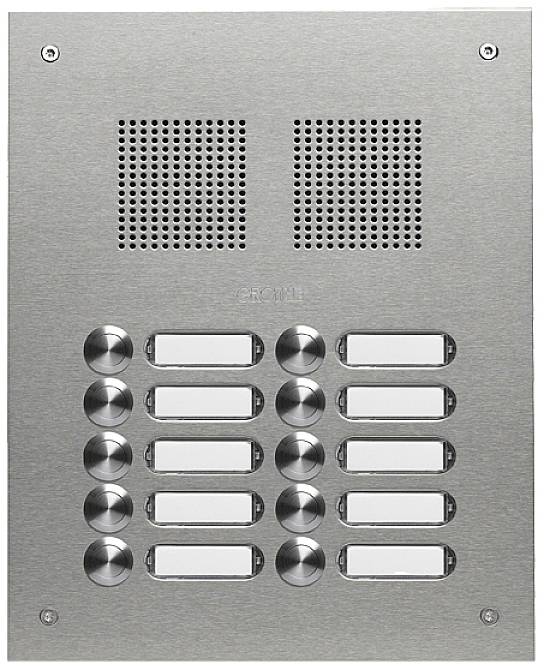

Grothe TS 788 2-5 Door intercom Outdoor panel V2A stainless steel (brushed)
EAN:
Part number:
Item no:
Highlights & Details
Grothe V2A TS 788 2-5 door station
- Two-rowFlush-mounted, incl. flush-mounted boxWired completely mounted
Technical specifications
- Product type
Door intercom
- Component
Outdoor panel
- Units
10
- Features
Backlit nameplate
- Transfer type
Corded
- Mounting type (outdoor)
Flush mount
- Material (external)
Stainless steel
- Factory colour
V2A stainless steel (brushed)
- External unit dims.
240 x 296 x 56 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595203 Grothe TS 788 2-5 Door intercom Outdoor panel V2A stainless steel (brushed)
Description
THE ROBUSTA series is equipped with in-house developments, such as the buttons of the Protact series or the LED name plate.Due to the tactile switching behavior of the buttons, these door stations are ideal for the use of bus systems, not only from Grothe, but also from other manufacturers. The patented loudspeaker adapters offer optimum acoustics and the best protection against weather influences with the separate chambers as well as the water-drain system.TS 788 2-5 - Door station V2A: Stainless steel brushed; double row; flush-mounted, incl. flush-mounted box; 10 bell button; completely mounted and wired.
This text is machine translated.
This text is machine translated.
Features
- Flush-mounted flush-mounted door stationStable 2.5 mm front plate made of stainless steel Surface: Brushed stainless steelWith galvanized flush-mounted boxPROTACT bell button with tactile feedbackName badges with LED lightingSimple name plate change from the frontIntegrated, pre-mounted universal speaker adapterUniversal speaker adapter with:Patented water drain systemSeparate chambers for loudspeaker and microphone for optimum acoustic decouplingStainless steel protective grid against penetration of foreign bodiesMaterial stainless steel V2ABrushed.
Scope of delivery
- Door station V2A
