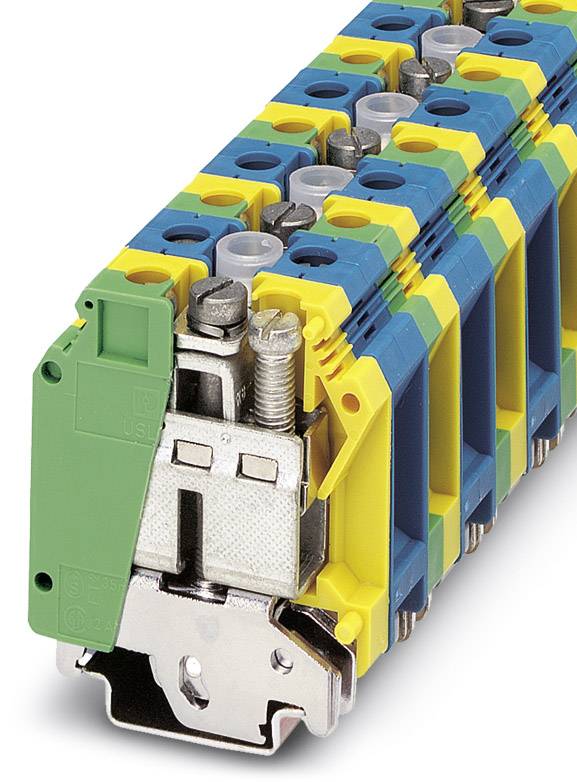

Ground modular terminal block UK 35-PE/N 3008054 Phoenix Contact
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Screws
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
125 A
Datasheet (PDF)
Total (€ 28.15 / piece)
€ 281.51
plus VAT.
14-day return policy included
Technical specifications
- Product type
PG terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.75 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
0.75 mm²
- Cross section (inflexible) (max.)
35 mm²
- AWG (min.)
18
- AWG max.
2
- Clamp width
30.1 mm
- No. of rows
1
- Number of pins
4
- Factory colour
Green
Yellow
Blue
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Nominal voltage
630 V
- Stripping length (max.)
16 mm
- Manufacturer part #
3008054
- Content
10 pc(s)
- Industrial packaging
Yes
- Type
UK 35-PE/N
- Dim
(L x W x H) 50 x 30.1 x 62 mm
- Width
30.1 mm
- Height
62 mm
- Length
50 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 565250 Ground modular terminal block UK 35-PE/N 3008054 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565250 Ground modular terminal block UK 35-PE/N 3008054 Phoenix Contact
Description
PE/N block, with screw connection, consisting of a green-yellow ground terminal block, a blue modular terminal block with screw bridge, terminal screw, and M6 bridge screw, tightening torque: 3.2 Nm - 3.7 Nm, M5 mounting screw, tightening torque: 2.5 Nm - 3.0 Nm
