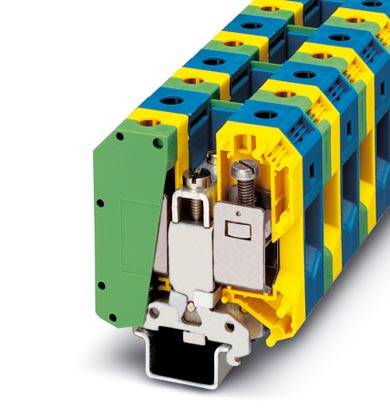

Ground modular terminal block UKH 50-PE/N 3009163 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PG terminal
Connection
Screws
Cross section (flexible) (max.)
50 mm²
Cross section (inflexible) (max.)
50 mm²
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 24.37 / piece)
€ 121.84
plus VAT.
Only 8 Set(s) available
Highlights & Details
Ground modular terminal block UKH 50-PE/N
- UKH 50-PE/N
Technical specifications
- Packaging type
Piece
- Product type
PG terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
25 mm²
- Cross section (flexible) (max.)
50 mm²
- Cross section (inflexible) (min.)
16 mm²
- Cross section (inflexible) (max.)
50 mm²
- AWG (min.)
6
- AWG max.
1
- Clamp width
40 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
150 A
- Nominal current - rounded value
150 A
- Nominal voltage
1000 V
- Stripping length (max.)
24 mm
- Manufacturer part #
3009163
- Content
5 pc(s)
- Industrial packaging
Yes
- Type
UKH 50-PE/N
- Dim
(L x W x H) 70.5 x 40 x 83.5 mm
- Width
40 mm
- Height
83.5 mm
- Length
70.5 mm
- Flammability rating
V2
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 589569 Ground modular terminal block UKH 50-PE/N 3009163 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 589569 Ground modular terminal block UKH 50-PE/N 3009163 Phoenix Contact
Description
Ground modular terminal block, Screw connection, Cross section: 16 mm² - 50 mm², AWG: 6 - 1/0, Width: 40 mm, Color: green-yellow, Mounting type: NS 35/15, NS 32
