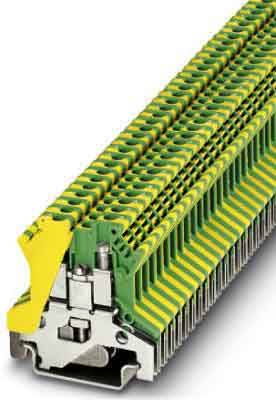

Ground modular terminal block USLKG 1,5 N 3005853 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Triple port PG terminal
Connection
Screws
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
Ground modular terminal block USLKG 1,5 N
- USLKG 1,5 N
Technical specifications
- Product type
Triple port PG terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
26
- AWG max.
16
- Clamp width
4.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green
Yellow
- Stripping length (max.)
7 mm
- Manufacturer part #
3005853
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
USLKG 1,5 N
- Dim
(L x W x H) 42.5 x 4.2 x 42 mm
- Width
4.2 mm
- Height
42 mm
- Length
42.5 mm
- Contamination level
3
- Flammability rating
V0
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565322 Ground modular terminal block USLKG 1,5 N 3005853 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565322 Ground modular terminal block USLKG 1,5 N 3005853 Phoenix Contact
Description
Ground modular terminal block, Connection method: Screw connection, Cross section: 0.14 mm² - 1.5 mm², AWG: 26 - 16, Width: 4.2 mm, Color: green-yellow, Mounting type: NS 35/7,5, NS 35/15, NS 32
