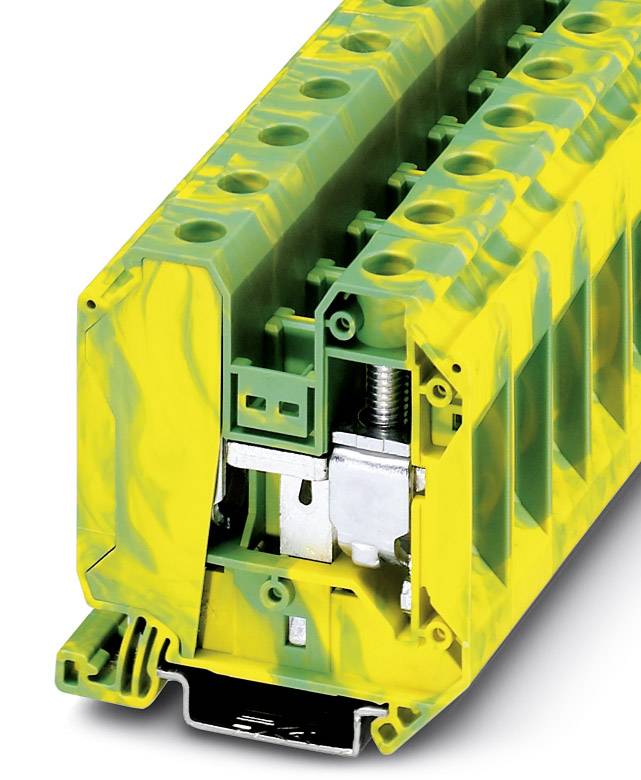

Ground modular terminal block UT 35-PE 3044241 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Triple port PG terminal
Connection
Screws
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 7.48 / piece)
€ 373.95
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Triple port PG terminal
- Features
with screw connection
- Connection
Screws
- Configuration
Terre
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
35 mm²
- AWG (min.)
16
- AWG max.
2
- Clamp width
16 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Stripping length (max.)
18 mm
- Manufacturer part #
3044241
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UT 35-PE
- Dim
(L x W x H) 61.2 x 16 x 65.1 mm
- Width
16 mm
- Height
65.1 mm
- Length
61.2 mm
- Contamination level
3
- Weight
0.0850 kg
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565883 Ground modular terminal block UT 35-PE 3044241 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565883 Ground modular terminal block UT 35-PE 3044241 Phoenix Contact
Description
Ground modular terminal block, Connection method: Screw connection, Cross section: 1.5 mm² - 35 mm², AWG: 16 - 2, Width: 16 mm, Height: 65.1 mm, Color: green-yellow, Mounting type: NS 35/7,5, NS 35/15
