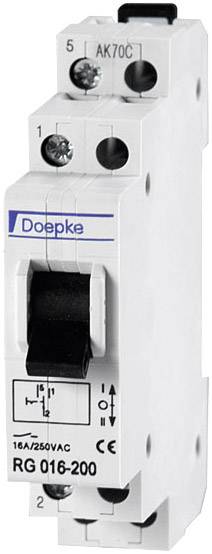

Group switch 1-pin 10 mm² 16 A 1 maker 230 V, 400 V Doepke 09981080
EAN:
Part number:
Item no:
Product type
Group switch
Nominal voltage
230 V
400 V
Number of pins
1
Nominal current - rounded value
16 A
Contact type
1 maker
Datasheet (PDF)
Highlights & Details
DOEP group switch RG 016-001
- Quick mounting on DIN rail
- All mounting positions permitted
- Compact design
Technical specifications
- Product type
Group switch
- Contact type
1 maker
- Operating voltage
230 V
400 V
- Nominal voltage
230 V
400 V
- Cross section
10 mm²
- Number of pins
1
- Dim
(W x H x D) 18 x 90 x 65 mm
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Width
18 mm
- Height
90 mm
- Depth
65 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2136317 Group switch 1-pin 10 mm² 16 A 1 maker 230 V, 400 V Doepke 09981080
User & Safety Instructions
User & Safety Instructions 2136317 Group switch 1-pin 10 mm² 16 A 1 maker 230 V, 400 V Doepke 09981080
Description
Group switch, also in order to or toggle switch, you have three or four connections and open a circuit while at the same time another. The switches of the series RG are compact built and switch single-phase loads up to 16 A. The group switch offers universal applications in industry and building technology as well as in the home installation. They are also used as blind switch one-and two-way can be used. In addition, with you, for example, Lighting control systems with Man-0-Auto can be realized.
This text is machine translated.
This text is machine translated.
Features
- Large terminal cross section
- Captive lift terminals with rear plug and touch protection
- Switching via knob
