Grün Pumpen AS1 IBC Barrel pump PG connector 100 l/min 22 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

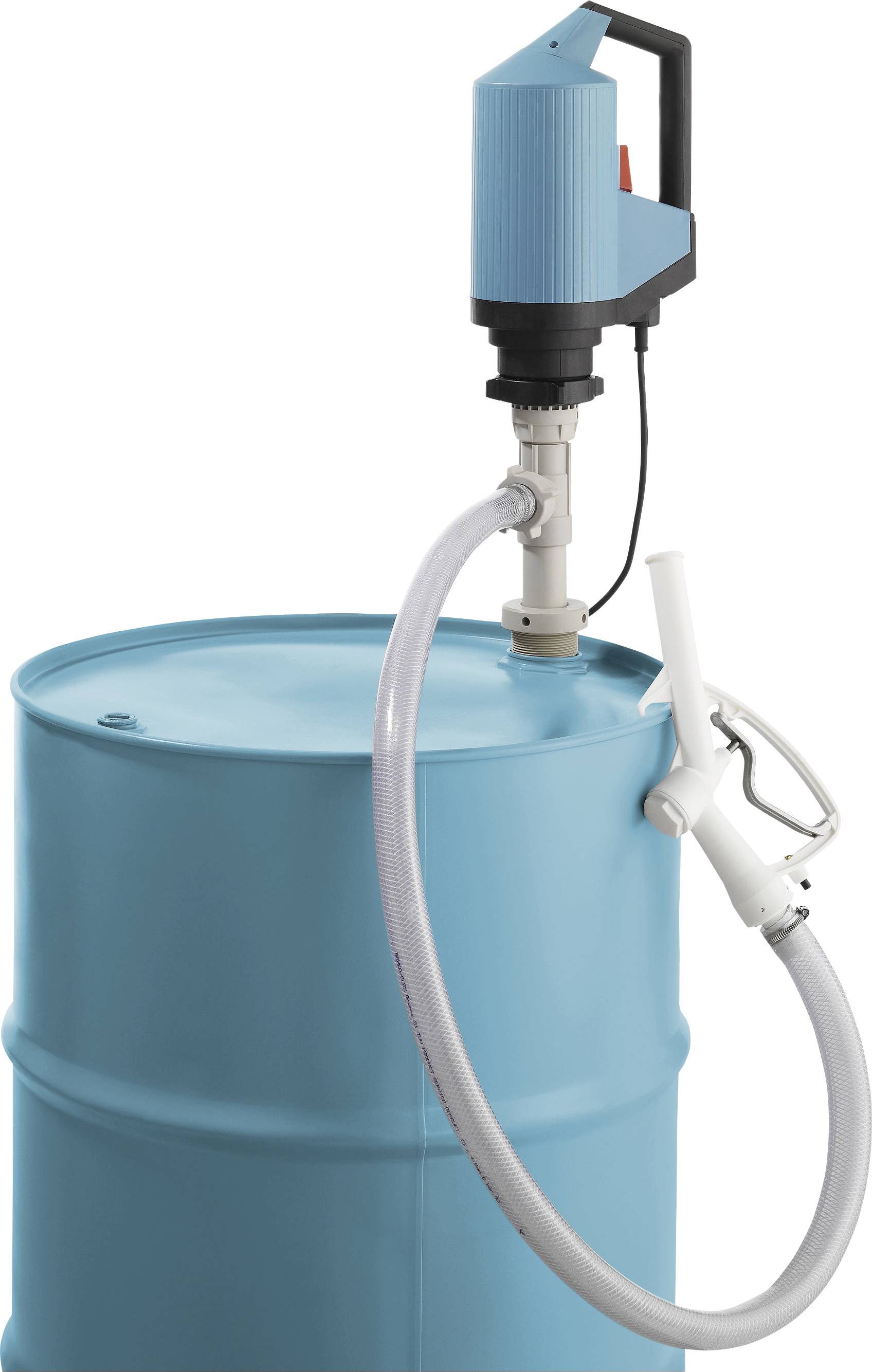

Barrel pump allround-set AS1 IBC
- For frequent use and long operating time
- For concentrated acids and alkalis
Technical specifications
- Product type
Barrel pump
- Features
PG connector
- Max. delivery head
22 m
- Max. feed rate
100 l/min
- Max. discharge pressure
2.2 bar
- Operating voltage
230 V
- Power (P2)
850 W
- Immersion depth
1 m
- Height
446 mm
- (Ø)
130 mm
- Dim
(Ø x H) 130 mm x 446 mm
IP24
Documents & Downloads
Datasheet
Datasheet 3729114 Grün Pumpen AS1 IBC Barrel pump PG connector 100 l/min 22 m
User & Safety Instructions
User & Safety Instructions 3729114 Grün Pumpen AS1 IBC Barrel pump PG connector 100 l/min 22 m
User & Safety Instructions 3729114 Grün Pumpen AS1 IBC Barrel pump PG connector 100 l/min 22 m
Description
For frequent use and long operating time
For concentrated acids and alkalis
This text is machine translated.
For concentrated acids and alkalis
This text is machine translated.
Features
- Motor, pump unit, 2m hose, hose connector, hose clamps stainless steel, Nozzle, handle adapter, wall bracket
Hints
Max. flow 100 l/min
Max. Delivery height (H max.): 22m
Voltage: Input 230V/50Hz
Nominal current: 4.5A
IP 24 protection
Output: 850W
