GSR 00706250 Hand tap set 3-piece metric M12 1.75 Right hand cutting DIN 352 HSS-G 1 pc(s)
EAN:
Part number:
Item no:
Product type
Hand tap set
Thread spec
metric
DIN standard
DIN 352
Thread size
M12
Thread handedness
Right hand cutting
Highlights & Details
Hand tap set DIN 352 HSSG M12
- DIN 352 standard
- Thread M
- Material HSS-G
- Hole type Dulo/Salo
Technical specifications
- Tolerance 6h
- Direction: Right-hand cutting
- Nominal dimension M 12
- Slope: 1.75
- Core hole 10.2
- Total length: 75
- Working length: 28
- Shaft length: 9
- Square: 7
- Product type
Hand tap set
- Thread spec
metric
- DIN standard
DIN 352
- Thread size
M12
- Gradient
1.75
- Thread handedness
Right hand cutting
- Thread length
75 mm
- Tap hole size
10.2 mm
- Material
HSS-G
- Square neck
7 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3358893 GSR 00706250 Hand tap set 3-piece metric M12 1.75 Right hand cutting DIN 352 HSS-G 1 pc(s)
Description

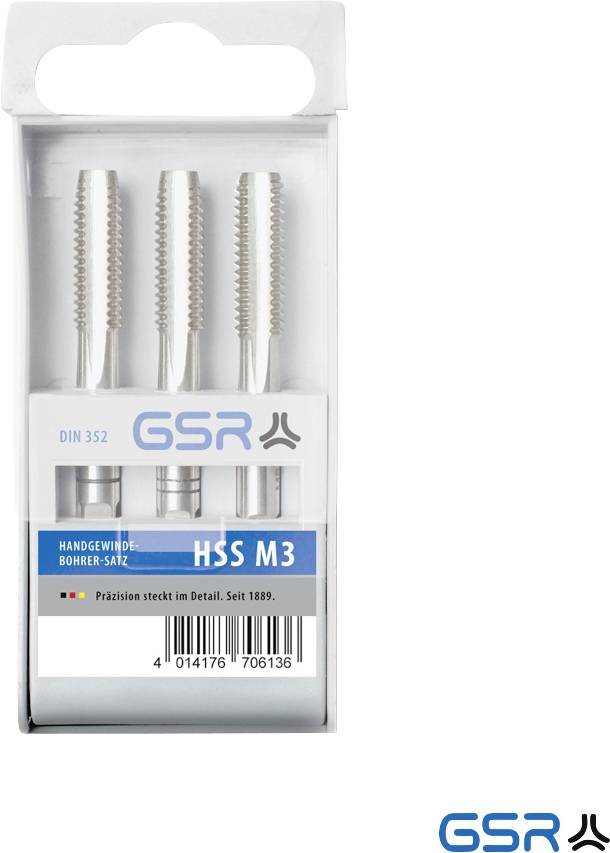

Professional GSR manual tap set for standard internal threads according to DIN13 from Gustav Stursberg.The HGB set consists of pre-cutter and pre-cutter is marked with a ring, the center cutter with two rings and the finished cutter without ring. Square according to DIN 10. Tool is made of ground high speed steel (HSS-G), right hand cut (RH). Securely packed in a transparent plastic box.
