GSR 00708070 Tap tool kit 32-piece HSS-G metric M3 - M12
EAN:
Part number:
Item no:
Highlights & Details
32-piece tap set Combination set M3-M12 HSS GSRG
- Standard: DIN 352 | DIN 1814 | DIN EN 22568 | Factory standard 2599
- Material: Die-cast zinc
- Size: 25 x 9 | No. 1.1/2
- Nominal size M3 - M12
- Thread M
- Material HSS-G
Technical specifications
- Product type
Tap tool kit
- DIN standard
DIN 352
DIN 1814
DIN 22568
- Thread spec
metric
- Thread size
M3 - M12
- Material
HSS-G
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3358871 GSR 00708070 Tap tool kit 32-piece HSS-G metric M3 - M12
Description
Professional GSR thread cutting assortment for producing external and internal threads from Gustav Stursberg.The die is pre-slotted (form B) and equipped with peeling cut on both sides. The tap allows you to cut a thread in one operation. The square is manufactured according to DIN 10. The tool is made of high performance high-speed steel (HSS) and is right-hand cut (RH).
This text is machine translated.
This text is machine translated.

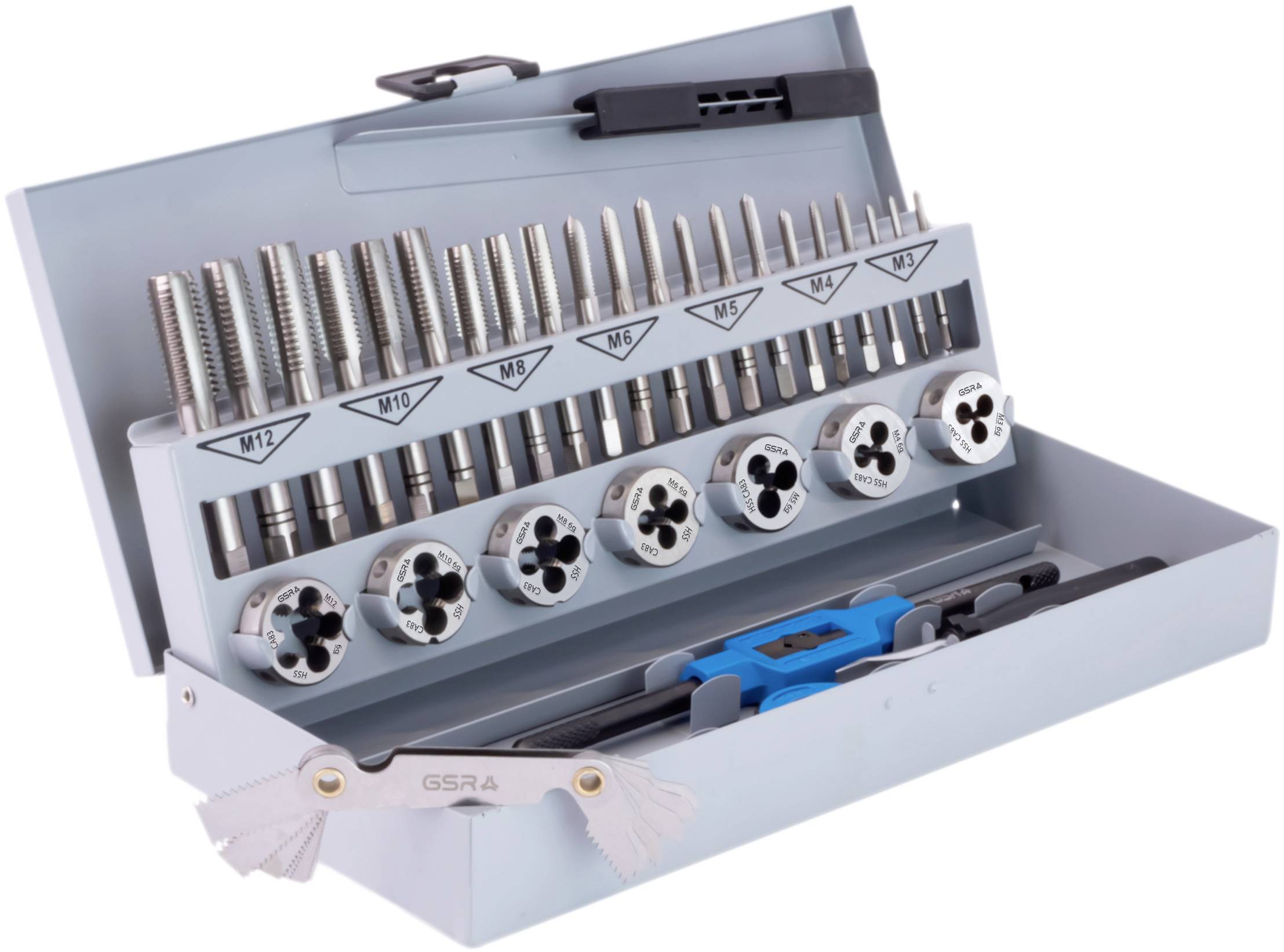

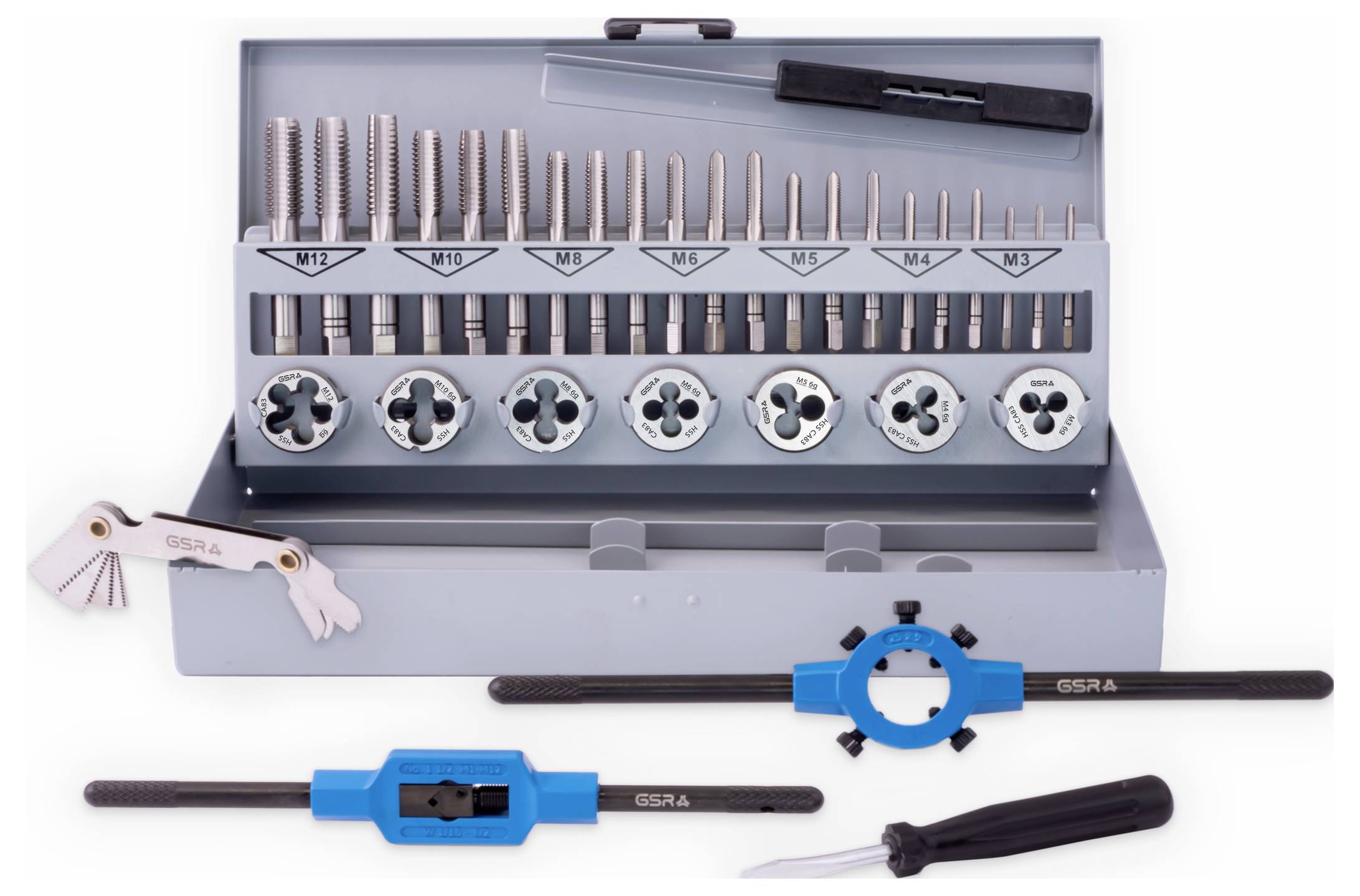

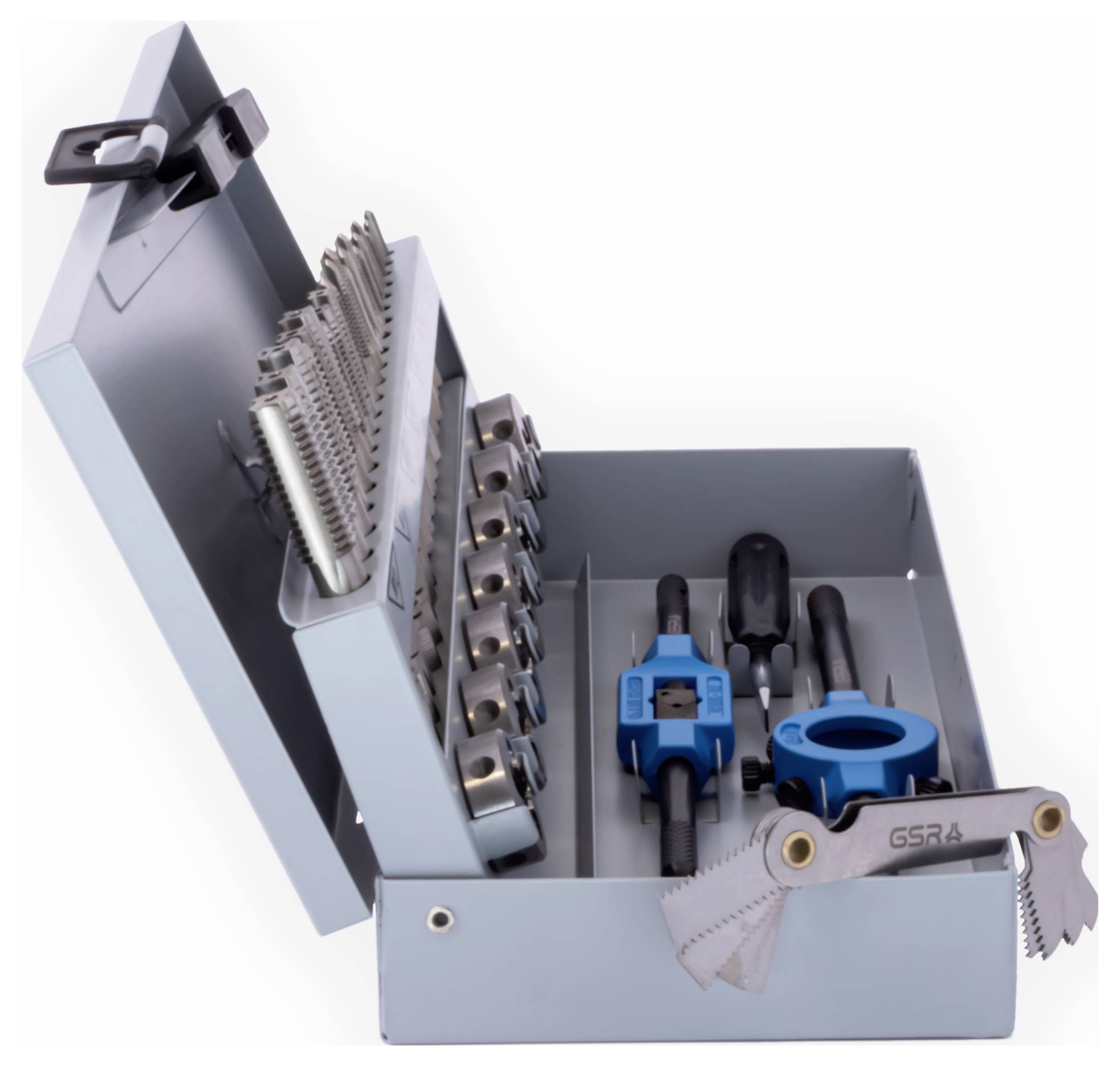

Scope of delivery
- 7x thread tap, 3-piece each. (M3, M4, M5, M6, M8, M10, M12)
- 7x round cutting steel (M3, M4, M5, M6, M8, M10, M12)
- Adjustable tap wrenches No. 1 1/2
- Cutting iron holder 25x9 mm
- Screwdrivers
- Thread gauge
- Box
