GSR B00105170 Hand tap metric M5 DIN 352 HSS-G 3 pc(s)
EAN:
Part number:
Item no:
Product type
Hand tap
Thread spec
metric
DIN standard
DIN 352
Thread size
M5
Material
HSS-G
Highlights & Details
3-piece hand tap set HSSG M5 DIN 352
- Nominal dimension M 5
- Total length without tip in mm: 50
- DIN standard DIN 352
- Tolerance class: ISO2 / 6H
- Shaft DM 6
- Slope in mm: 0.8
- Hole type Dulo/Salo
- Square nominal according to DIN 10: 4.9 core diameter: 4.2
Technical specifications
- Product type
Hand tap
- Thread spec
metric
- DIN standard
DIN 352
- Thread size
M5
- Material
HSS-G
- Material properties
cut
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730580 GSR B00105170 Hand tap metric M5 DIN 352 HSS-G 3 pc(s)
Description

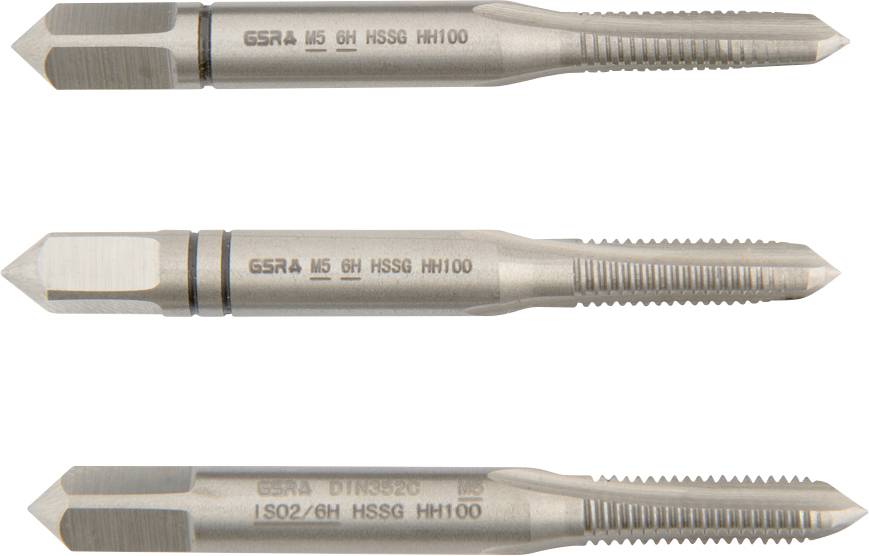

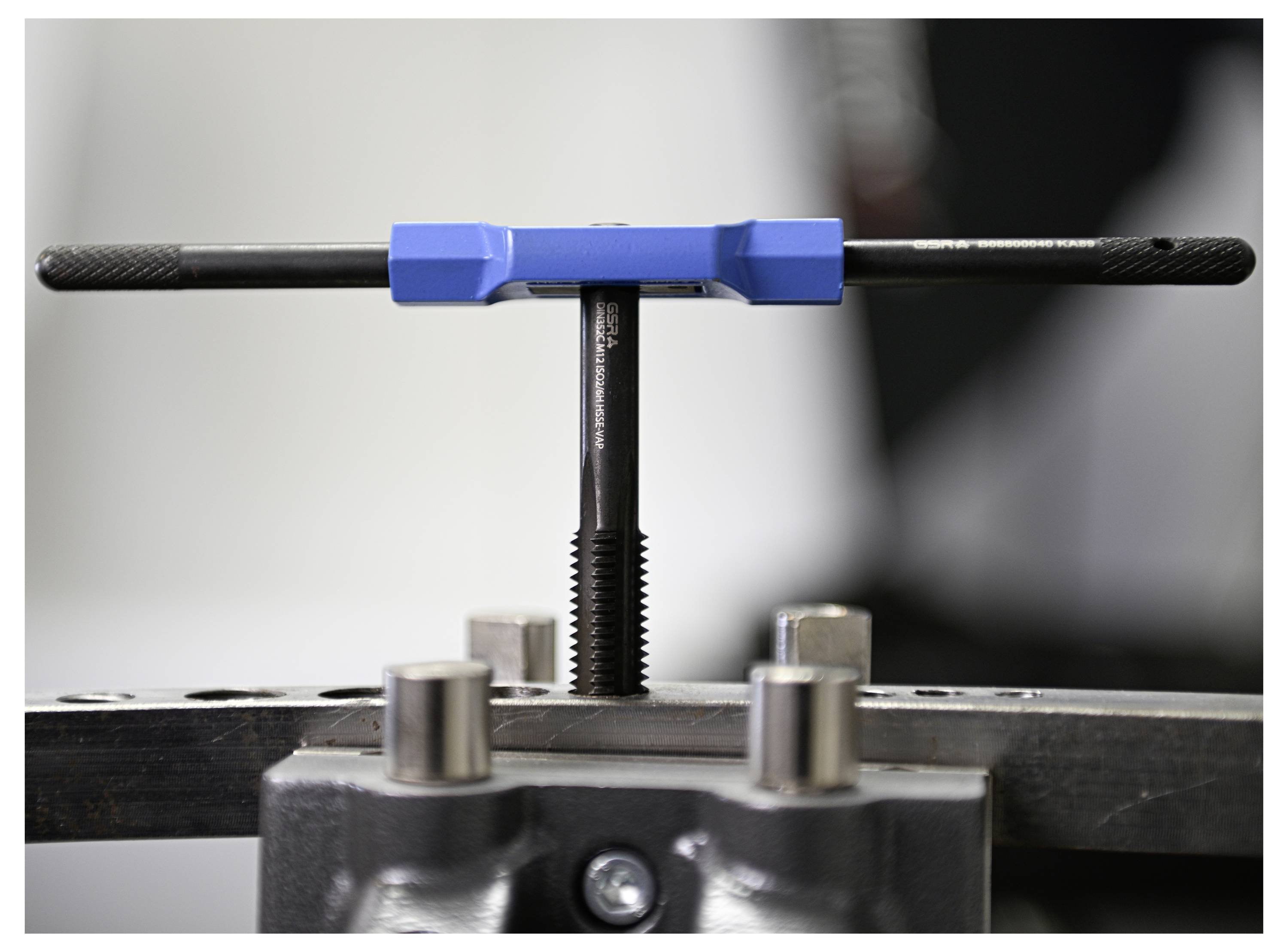

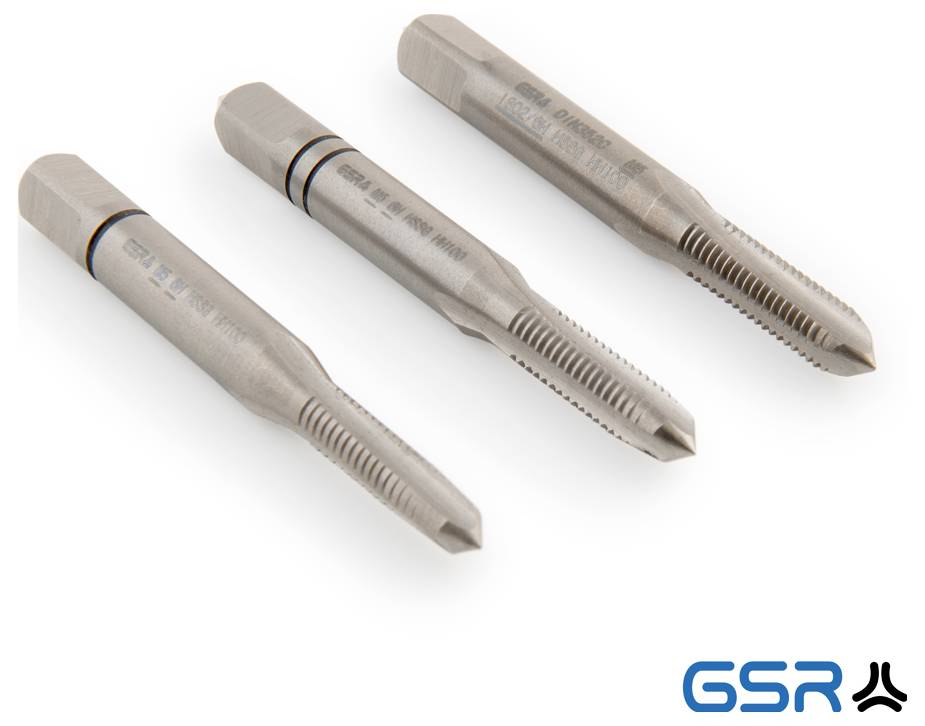

Hand tap set to DIN 352 standard for metric ISO thread. Set comprising of pre-cutter (No. 1), center cutter (No. 2) and finished cutter (No. 3) for step-by-step, dimensional thread cutting. HSSG, precision ground, tolerance ISO 2/6H, straight grooves, right cut. Suitable for low- and low-alloy steels, non-ferrous metals and cast iron. Use in tap wrenches or holder; best results with cutting oil/emulsion. Suitable for through-hole and blind holes.
