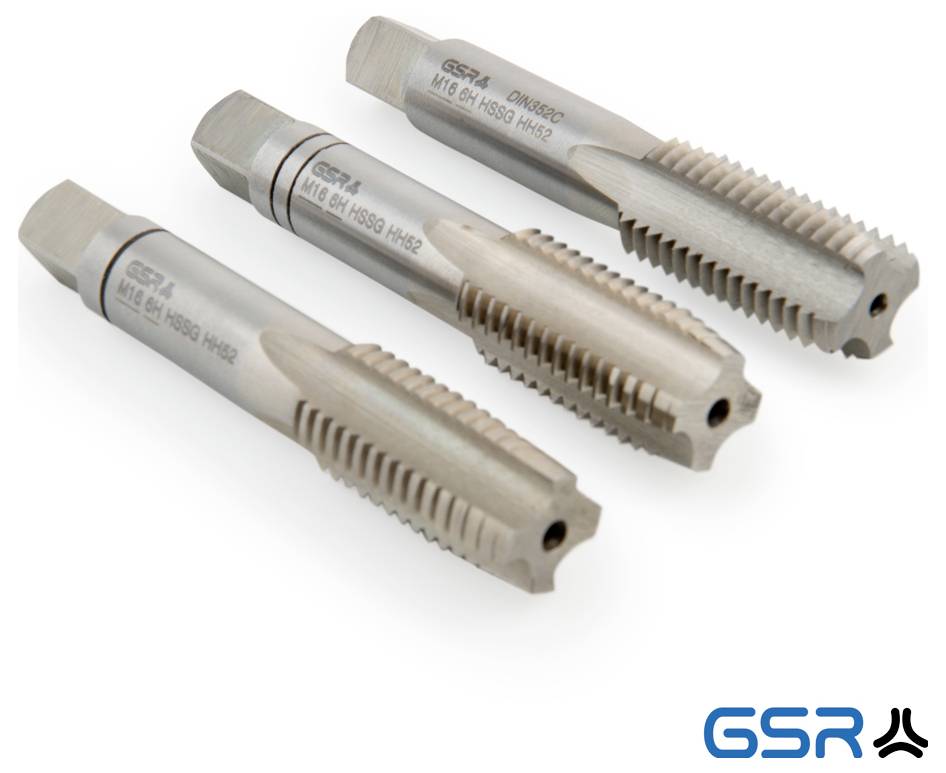

GSR B00105270 Hand tap metric M16 DIN 352 HSS 3 pc(s)
EAN:
Part number:
Item no:
Product type
Hand tap
Thread spec
metric
DIN standard
DIN 352
Thread size
M16
Material
HSS
Highlights & Details
3-piece hand tap set HSSG M16 DIN 352
- Nominal dimension M 16
- Total length without tip in mm: 80
- DIN standard DIN 352
- Tolerance class: ISO2 / 6H
- Shaft DM 12
- Slope in mm: 2.0
- Hole type Dulo/Salo
- Square nominal dimensions according to DIN 10: 9
- Core diameter: 14.0
Technical specifications
- Product type
Hand tap
- Thread spec
metric
- DIN standard
DIN 352
- Thread size
M16
- Tap hole size
14 mm
- Material
HSS
- Material properties
cut
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730586 GSR B00105270 Hand tap metric M16 DIN 352 HSS 3 pc(s)
Description

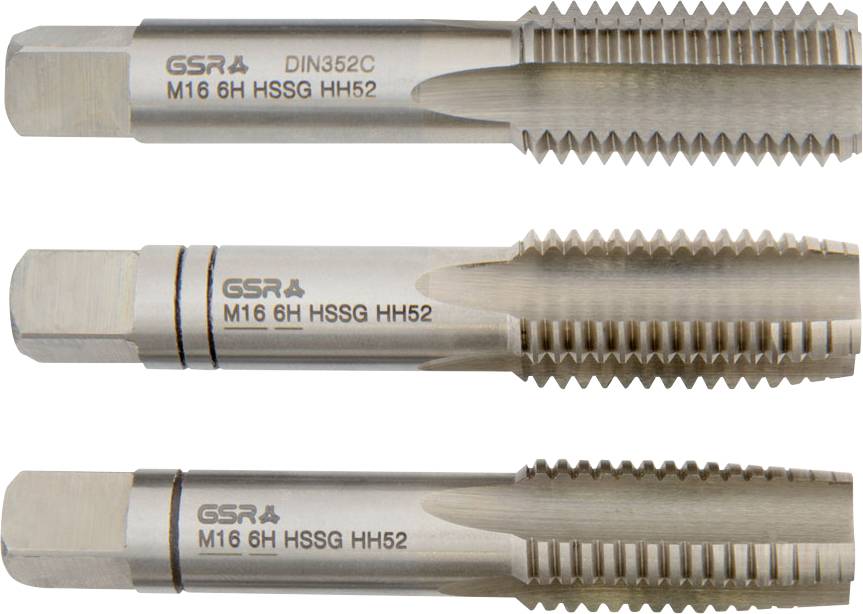

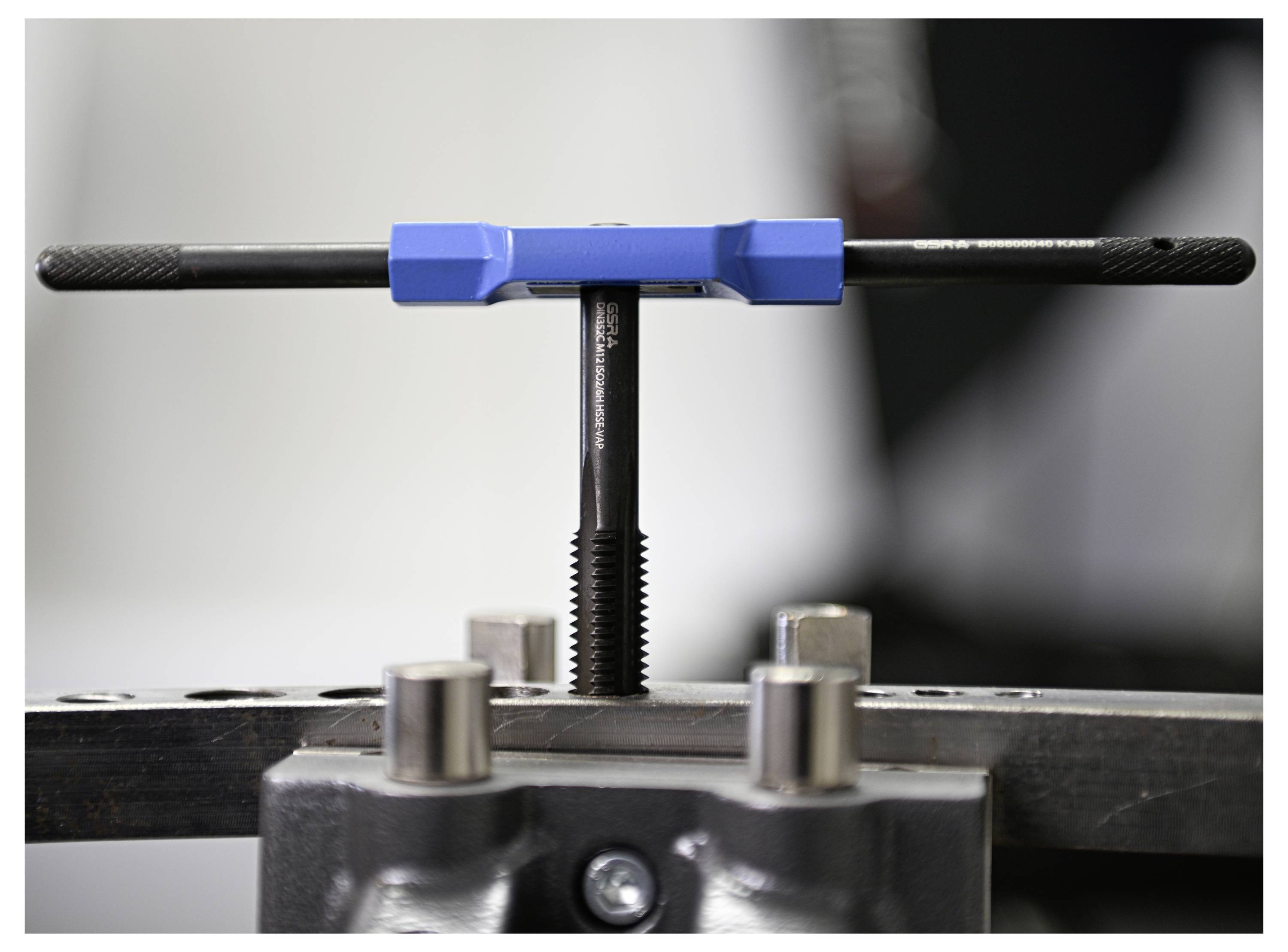

Hand tap set to DIN 352 standard for metric ISO thread. Set comprising of pre-cutter (No. 1), center cutter (No. 2) and finished cutter (No. 3) for step-by-step, dimensional thread cutting. HSSG, precision ground, tolerance ISO 2/6H, straight grooves, right cut. Suitable for low- and low-alloy steels, non-ferrous metals and cast iron. Use in tap wrenches or holder; best results with cutting oil/emulsion. Suitable for through-hole and blind holes.
