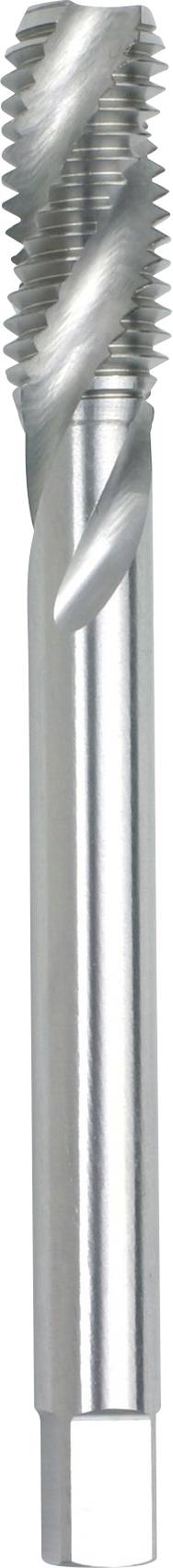

GSR B00311270 CNC tap metric M16 Clockwise DIN 376 HSS-G Shape C 1 pc(s)
EAN:
Part number:
Item no:
Product type
CNC tap
Thread spec
metric
DIN standard
DIN 376
Thread size
M16
Thread handedness
Clockwise
Highlights & Details
HSSG Machine tap grinder M16 DIN 376 shape C/RSP 35°
- Nominal dimension M 16
- DIN standard DIN 376
- Tolerance class: 6H
- Made from HSS
- Groove shape RSP 35°
- Hole type: Blind hole
- Thread depth:3xD
- Square nominal dimensions according to DIN 10: 9.0 mm
Technical specifications
- Product type
CNC tap
- Thread spec
metric
- DIN standard
DIN 376
- Thread size
M16
- End cut shape
Shape C
- Thread handedness
Clockwise
- Material
HSS-G
- Material properties
cut
- Square neck
9.0 mm
- Features
polished
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730560 GSR B00311270 CNC tap metric M16 Clockwise DIN 376 HSS-G Shape C 1 pc(s)
Description
Machine tap drill for blind holes according to DIN 376 with standard shank. 35° right-spiral groove (RSP) securely leads chips upwards and prevents chip congestion. Annotate form C allows threads up to close to the base. Precision-ground HSSG ensures dimensional stability, quiet running and good service life. Suitable for machine and CNC use with emulsion or cutting oil in low/low alloy steels and non-ferrous metals. DIN-376 shaft with square for reliable power transmission.
