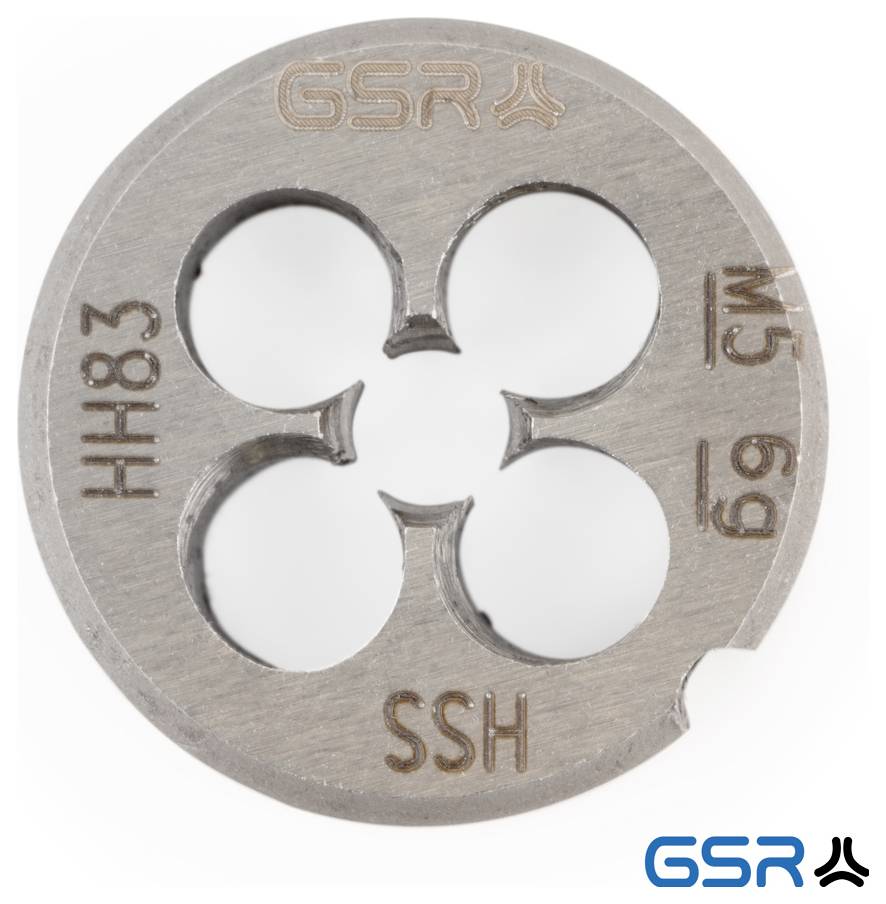

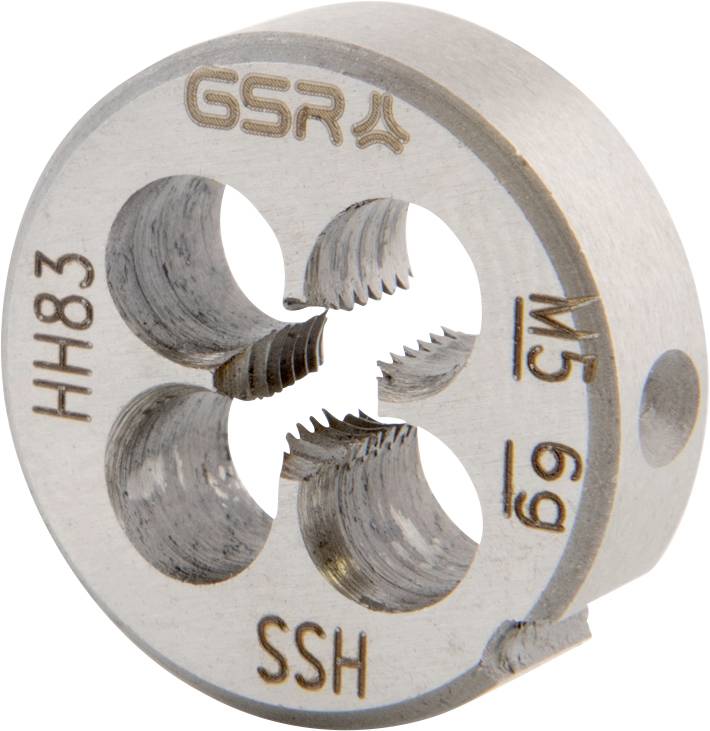

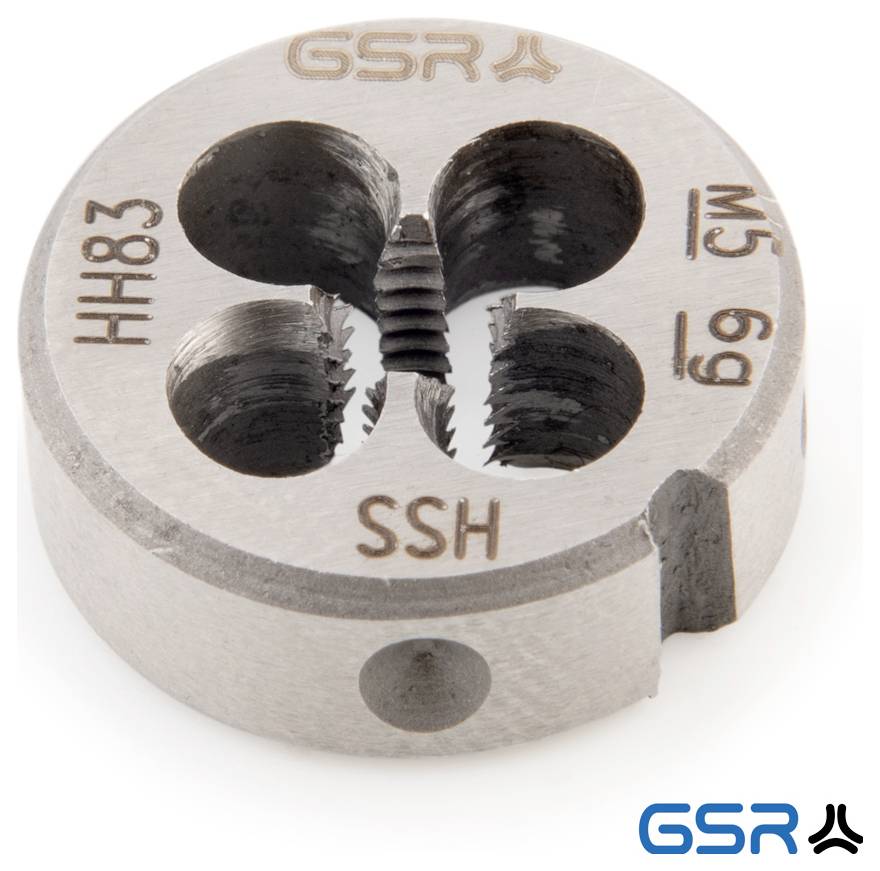

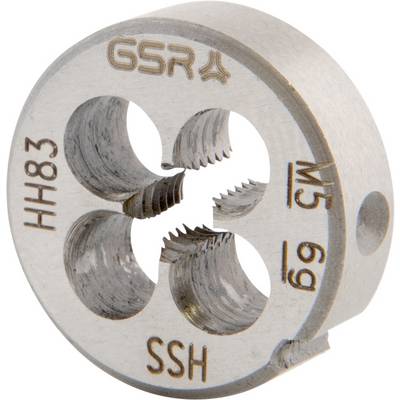

GSR B00402170 Die metric M5 Right-handed thread DIN 223 HSS
EAN:
Part number:
Item no:
Highlights & Details
DIES HSS M 5 DIN EN 22568 (DIN 223)
- Nominal dimension M 5
- DIN standard DIN 223
- Tolerance class: 6g
- Made from HSS
- Slope in mm: 0.8
- Body diameter: 7
- Body height: 4.9
Technical specifications
- Product type
Die
- DIN standard
DIN 223
- Thread spec
metric
- Thread size
M5
- Thread handedness
Right-handed thread
- Material
HSS
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730595 GSR B00402170 Die metric M5 Right-handed thread DIN 223 HSS
Description

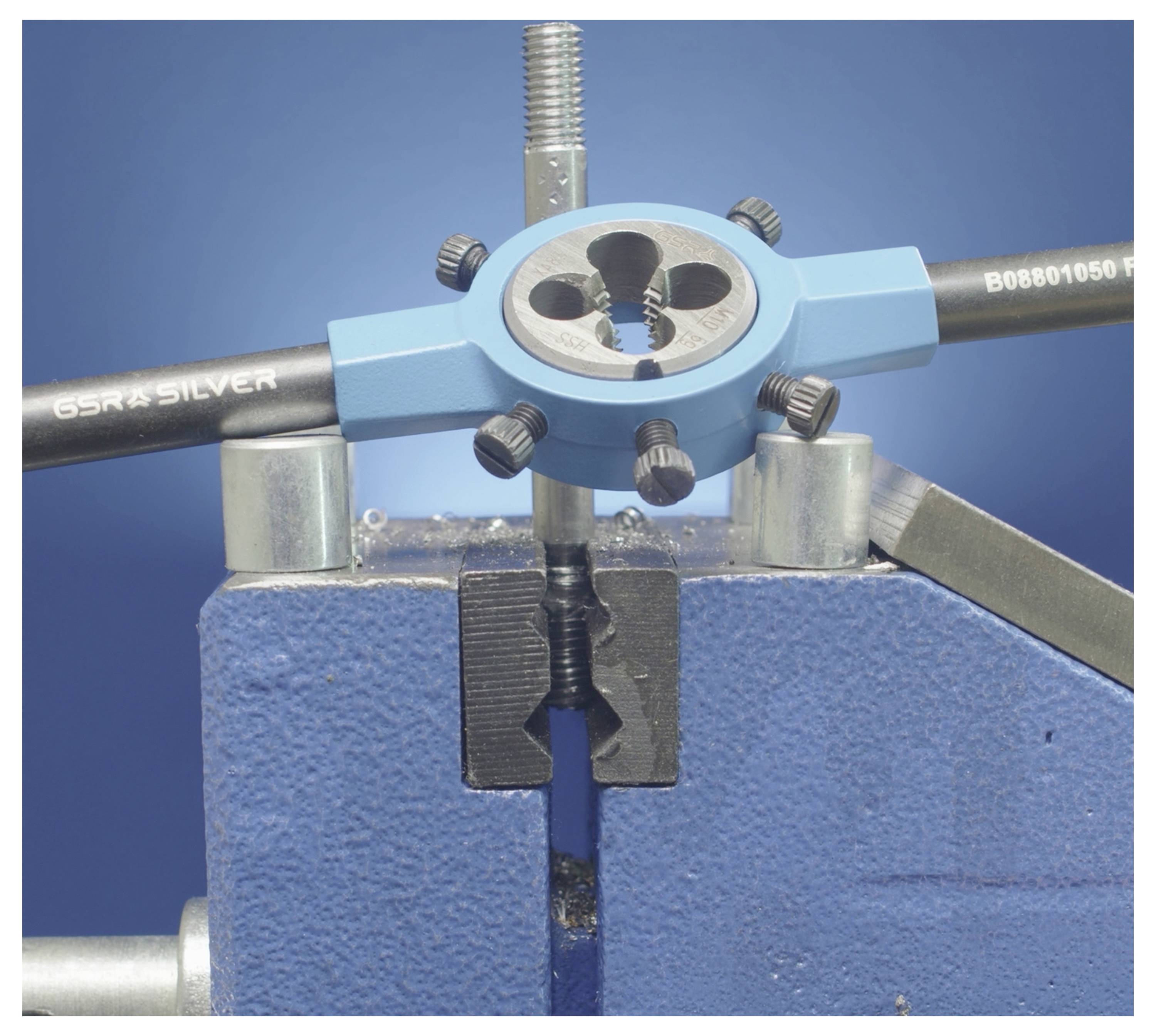

Round, slotted and adjustable cutting steel made of HSS according to DIN EN 22568-2-4 (former DIN 223) for precise metric external thread. Form B enables fine adjustment of the thread dimension; HSS ensures sharp cutting, dimensional stability and good service life. Right-hand cutting; Ideal in die stock with cutting oil. Suitable for low/low alloyed steels, non-ferrous metals and cast iron; conventional thread tolerance ISO 2 (6g).
