Name: GSR B00402210 Die metric M8 Right-handed thread DIN 223 HSS
Brand: GSR
SKU: 3730597

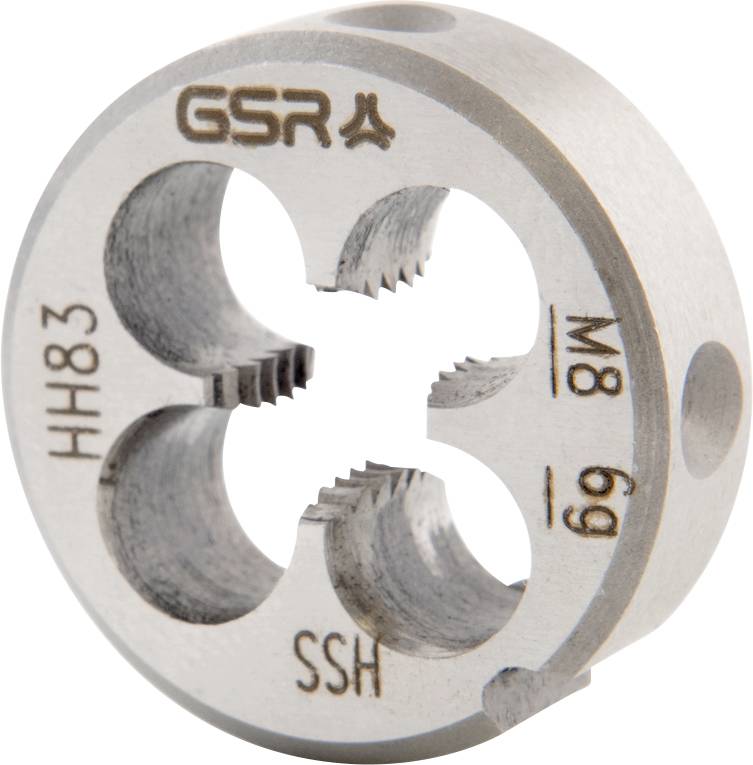

'A metal threading die with four circular holes is marked M8 6g, HH83, and SSH. It is designed for cutting threads on bolts or rods.'

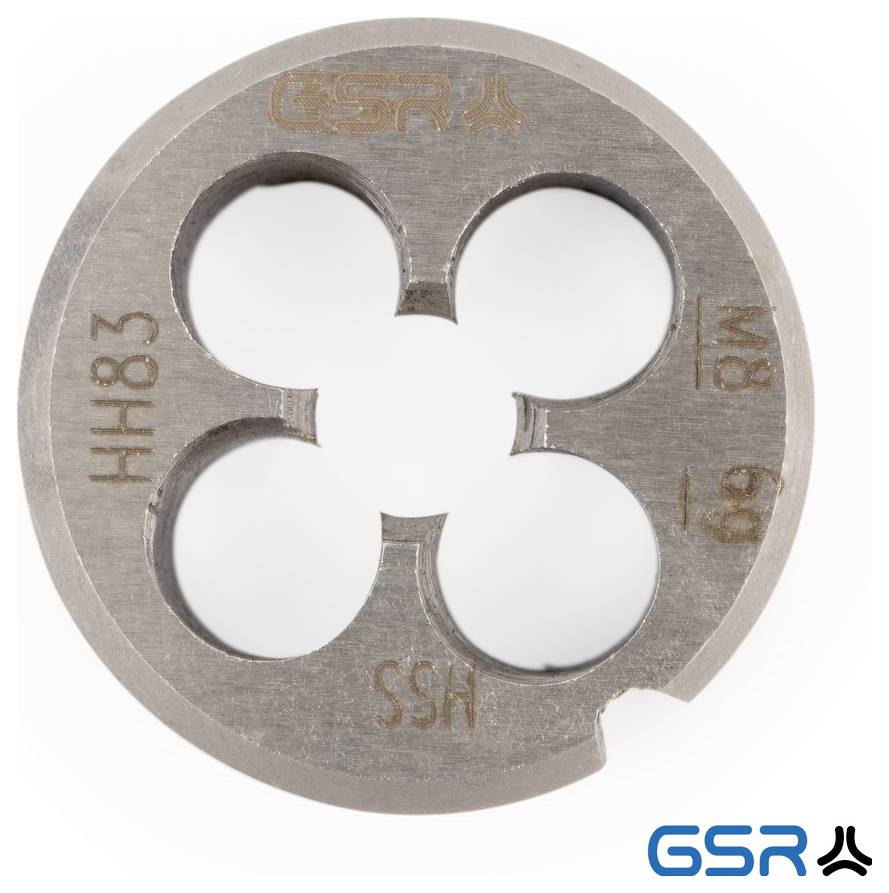

'GSR' round metal die with four holes, labeled 'M8 69,' 'HH83,' and 'SSH.'

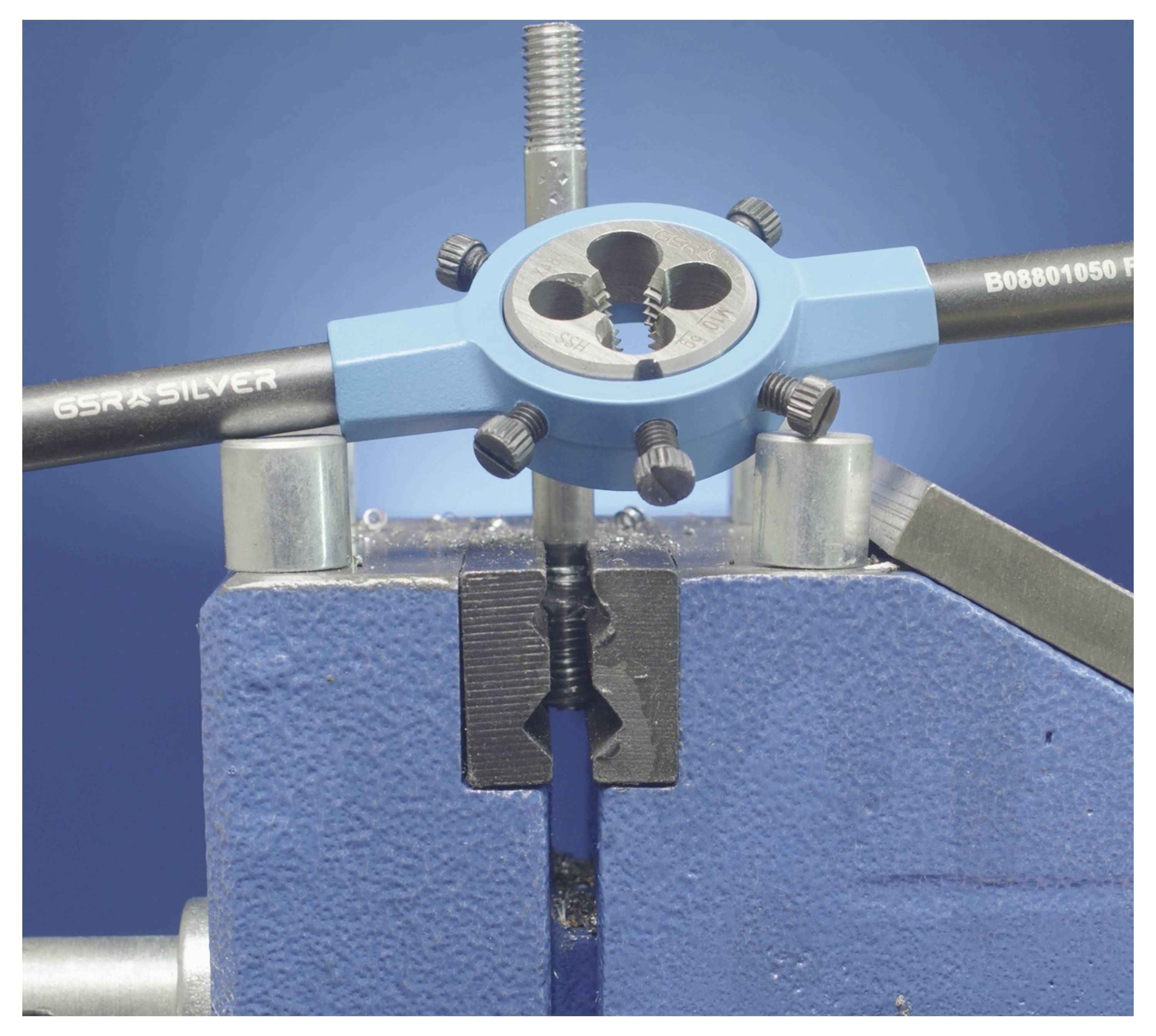

A blue threading die tool is shown cutting threads on a metal rod secured in a vise, illustrating the process of creating screw threads.

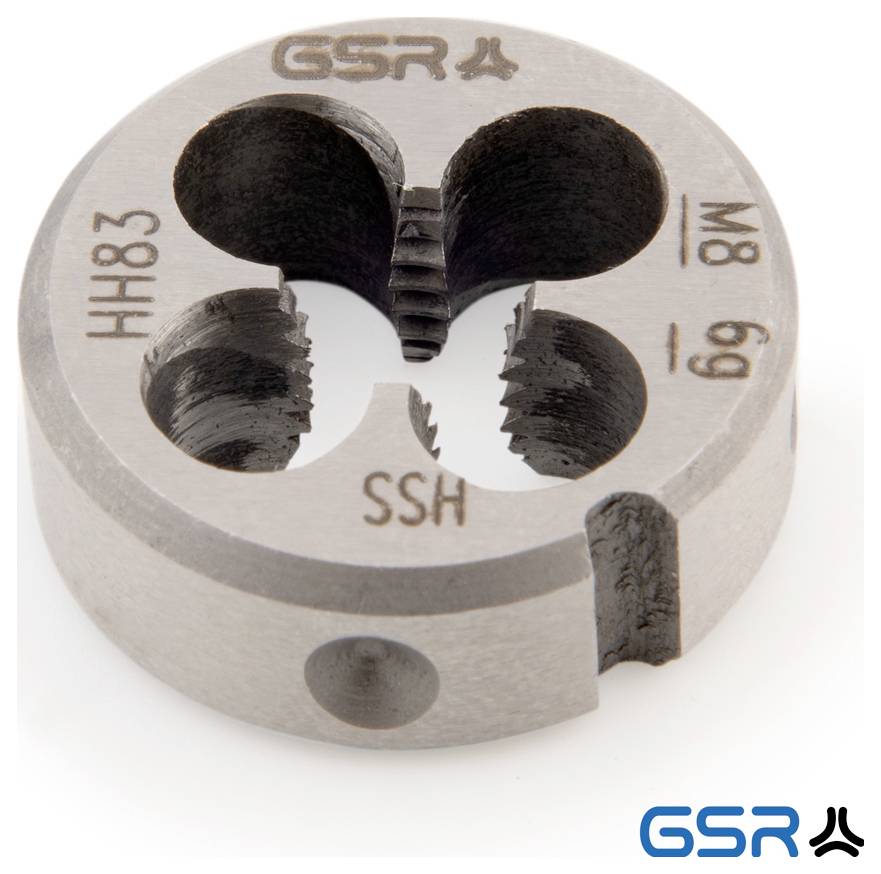

'A round metal die labeled GSR, M8, 6g, HSS, with internal threading slots, used for threading rods in mechanical applications.'

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DIES HSS M 8 DIN EN 22568 (DIN 223)

Nominal dimension M 8
DIN standard DIN 223
Tolerance class: 6g
Made from HSS
Slope in mm: 1.25
Body diameter: 9
Body height: 7.87

Technical specifications

Product type: Die

DIN standard: DIN 223

Thread spec: metric

Thread size: M8

Thread handedness: Right-handed thread

Material: HSS

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3730597 GSR B00402210 Die metric M8 Right-handed thread DIN 223 HSS

Description

Round, slotted and adjustable cutting steel made of HSS according to DIN EN 22568-2-4 (former DIN 223) for precise metric external thread. Form B enables fine adjustment of the thread dimension; HSS ensures sharp cutting, dimensional stability and good service life. Right-hand cutting; Ideal in die stock with cutting oil. Suitable for low/low alloyed steels, non-ferrous metals and cast iron; conventional thread tolerance ISO 2 (6g).

This text is machine translated.
