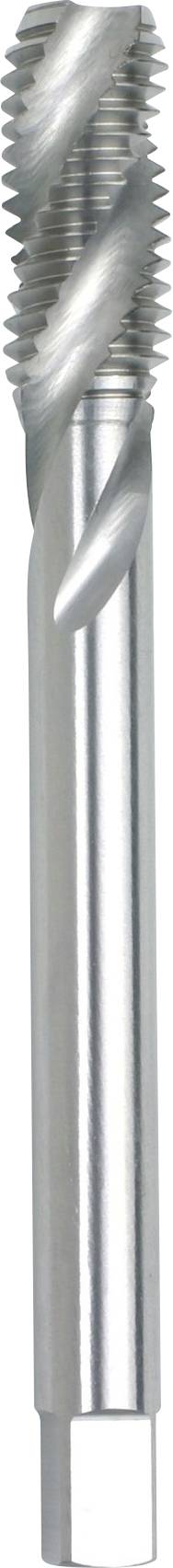

GSR B02015250 CNC tap metric M12 1.75 mm Right hand cutting DIN 376 HSS-E Shape C 1 pc(s)
EAN:
Part number:
Item no:
Product type
CNC tap
Thread spec
metric
DIN standard
DIN 376
Thread size
M12
Thread handedness
Right hand cutting
Highlights & Details
Machine tap HSSE M12 DIN 376 shape C/RSP 35°
- Nominal dimension M 12
- Total length without tip in mm: 110
- DIN standard DIN 376
- Tolerance class: 6H
- Material HSSE
- Shaft DM 9.0
- Working length: 28
- Groove shape RSP 35°
- Slope in mm: 1.75
- Hole type: Salo
- Thread depth:3xD
- Square nominal dimensions according to DIN 10: 7.0
- Core diameter: 10.2
Technical specifications
- Product type
CNC tap
- Thread spec
metric
- DIN standard
DIN 376
- Thread size
M12
- Gradient
1.75 mm
- End cut shape
Shape C
- Thread handedness
Right hand cutting
- Tap hole size
10.2 mm
- Material
HSS-E
- Material properties
tempered
- Length
110 mm
- Square neck
7.0 mm
- Features
polished
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730632 GSR B02015250 CNC tap metric M12 1.75 mm Right hand cutting DIN 376 HSS-E Shape C 1 pc(s)
Description
Machine tap drill for blind holes according to DIN 376 (standard shaft). 35° right spiral groove (RSP) promotes chips upwards; incision shape C allows threads to close to the base. HSSE (cobalt-alloy) with high heat hardness and wear resistance, also suitable for tough/stainless steel. Precision-ground, right-hand cut, tolerance 6H (usual). For machine-/CNC-application with emulsion or cutting oil.
