GUDE 1121-1 Socket Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

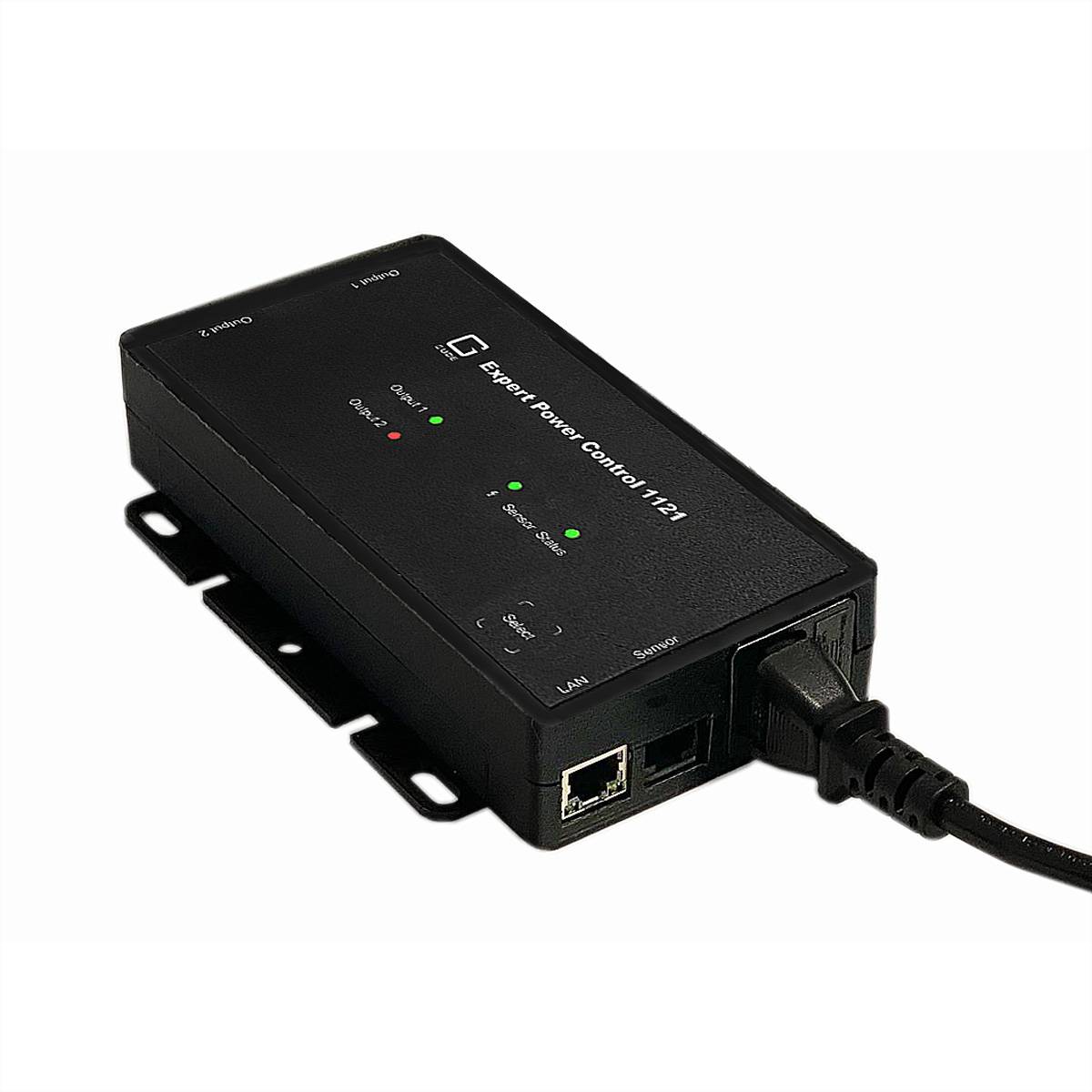

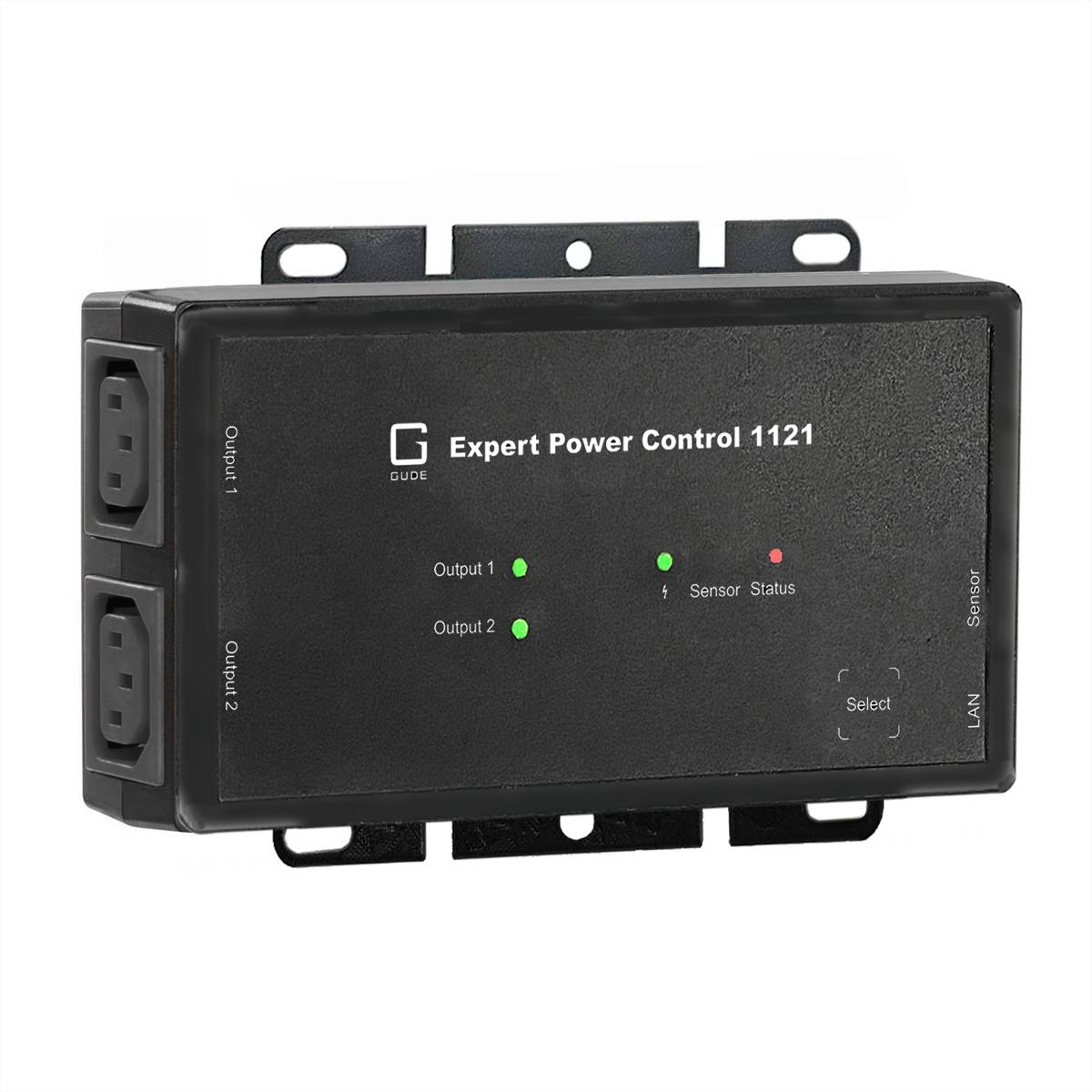

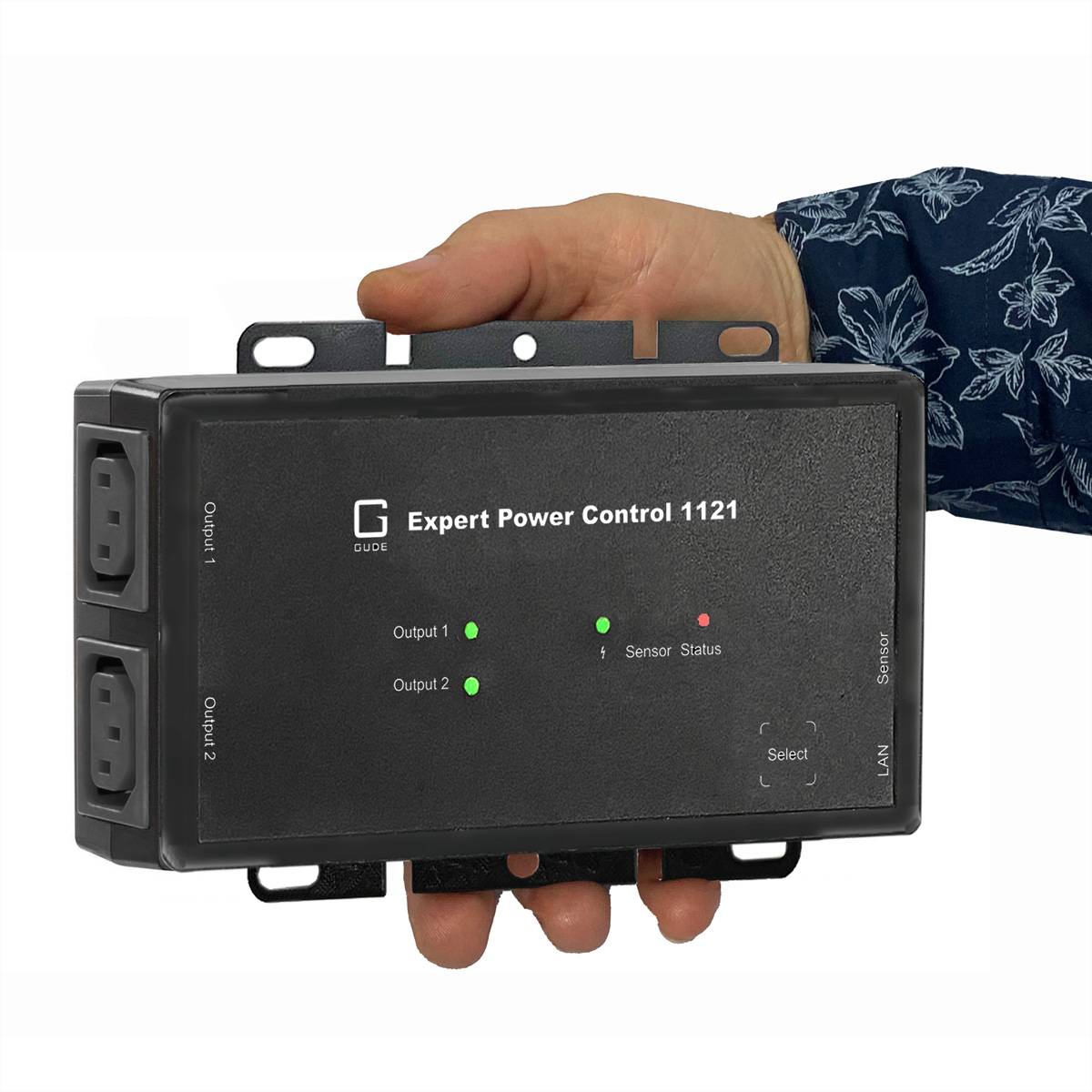

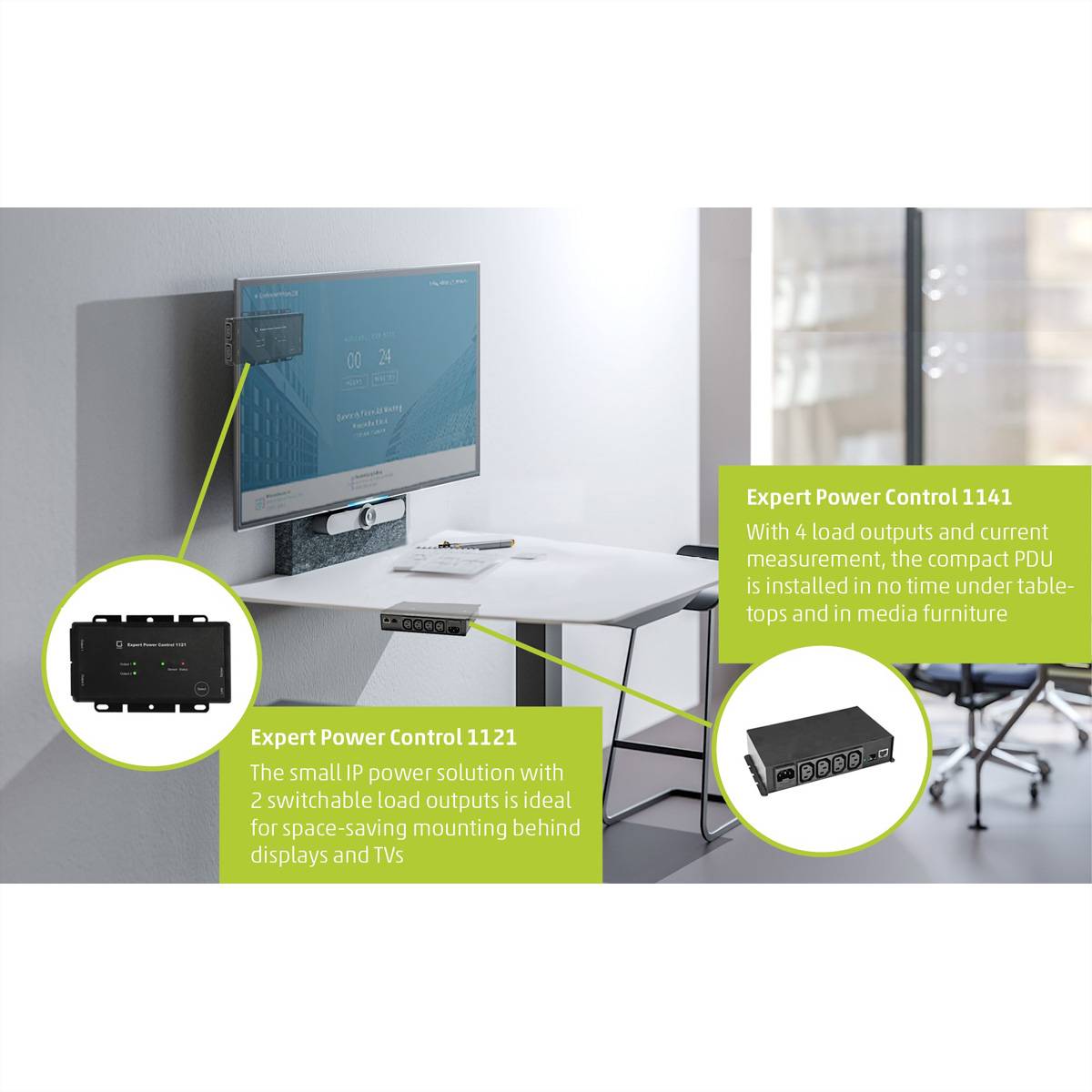

Dual-switched PDU with integrated measuring and monitoring functionality. 2 AV devices can be supplied with power and switched individually...
- Quick and easy installation in the smallest AV installations
- Self-healing function thanks to the 2-channel watchdog
- Event and schedule-controlled switching
- Precise current measurement of up to 9 units and residual current
- Connection for plug & play sensors
Technical specifications
- Product group: Socket strips
- Product type: IP Power switch
- Colour, black
- Function: Remote switching via IP
- Design: Desktop
- Max. load carrying capacity 2000W
- Max. voltage 230V
- On/off switch: No.
- Switch type IP
- Number of socket pots: 2
- Number of outputs/angle: 2x IEC320 C13
- Material (casing): Metal
- Colour (housing): Black
- Connection cable: --
- Colour (cable): Black
- Plug IEC320 C13 /C14, cold devices
- Voltage surge protection: Yes
- Technical features: Web Frontend
- Mains connection: Cold-device connection
- Min. Operating temperature 0 °C
- Max. operating temperature: 50 °C
- Height: 34 mm
- Width 86 mm
- Depth: 168 mm
- Weight: 0.45 kg
- Packaging height 70 mm
- Package width 270 mm
- Packaging depth 280 mm
- Package weight: 0,812 kg
- Gross weight: 0.812
- Product type
Socket
- Outlets
2
- Factory colour
Black
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797316 GUDE 1121-1 Socket Black
User & Safety Instructions
User & Safety Instructions 3797316 GUDE 1121-1 Socket Black
Description
Dual-switched PDU with integrated measuring and monitoring functionality. 2 AV devices can be supplied with power and switched individually. Easy and quick setup with free drivers for leading AV and IT control systems. Precise power measurement and monitoring of temperature and humidity through plug-n-play sensors. Remote restart and automatic switching of power supply. 2 load outputs can be switched individually at the device, via HTTP(S), SNMP, Modbus TCP as well as via command line interface over Telnet, SSH and MQTT. Switch state and switch-on delay (0...9999 seconds) adjustable for every power connection after power failure. Peak currents in case of simultaneous switching operations are prevented by an automatic latency of 1 second. Programmable schedules and switch-on and switch-off sequences - 2 channel watchdog, each Power port can be assigned a separate watchdog. Load outputs can be switched when preset sensor thresholds are exceeded
This text is machine translated.
Scope of delivery
- Adapter, instructions
