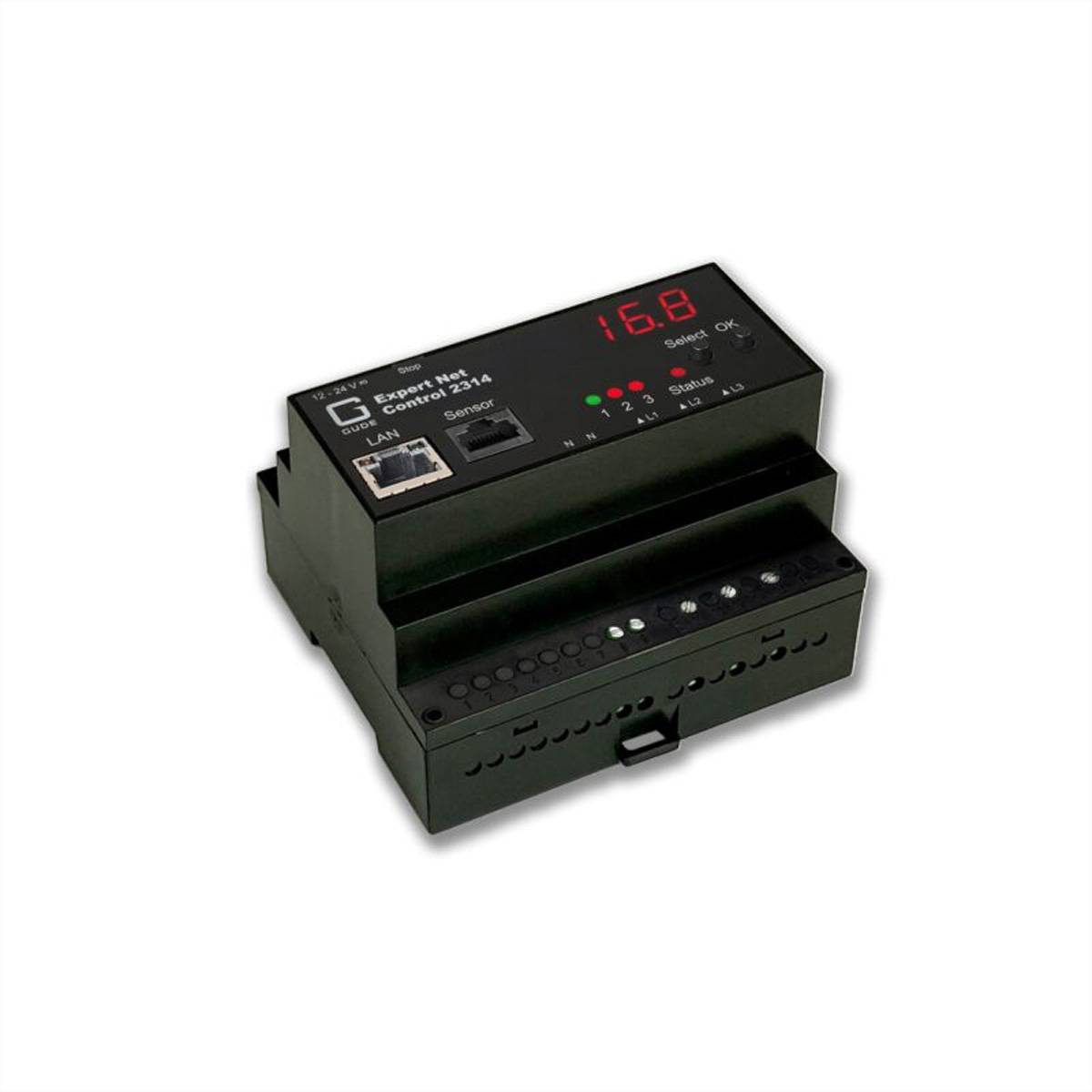

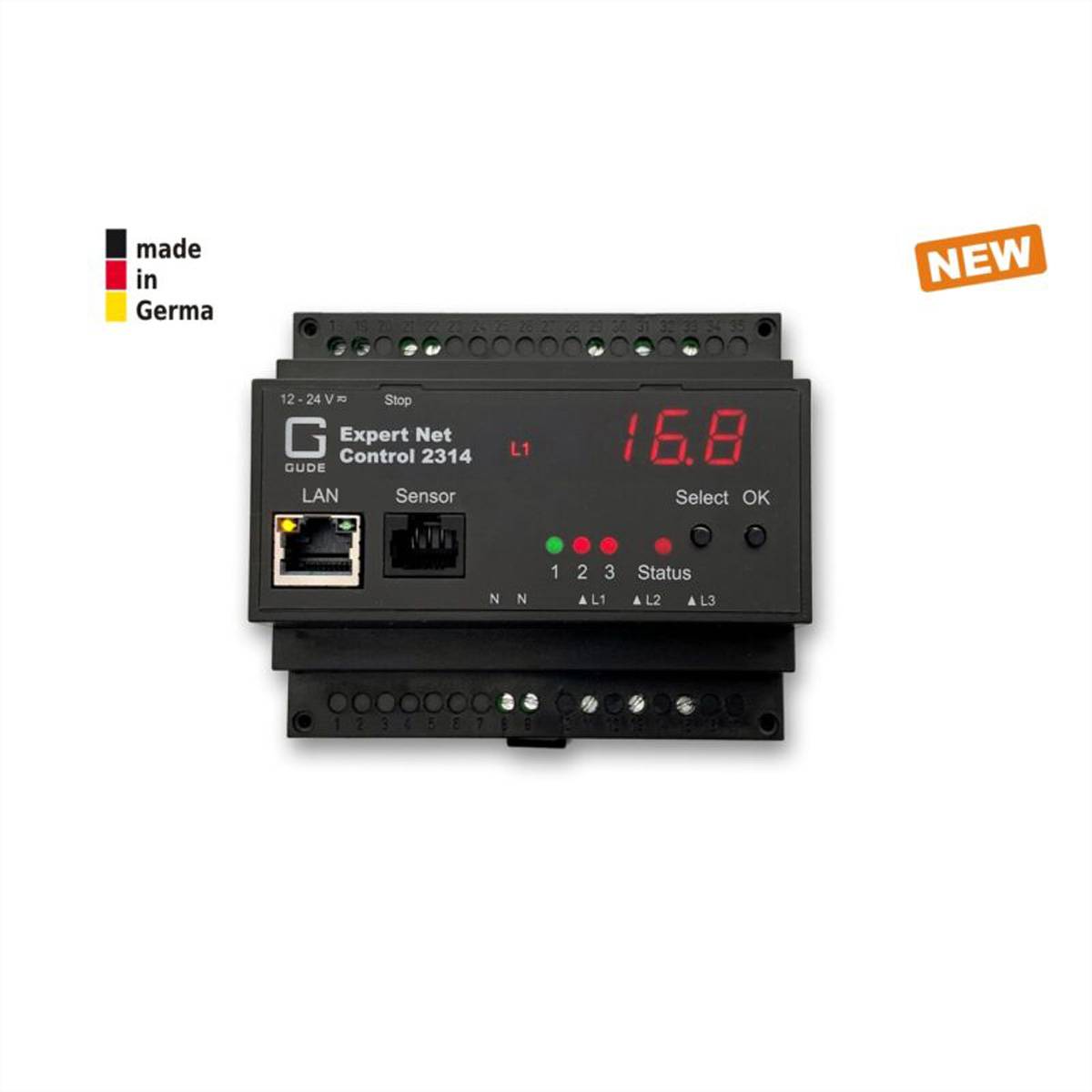

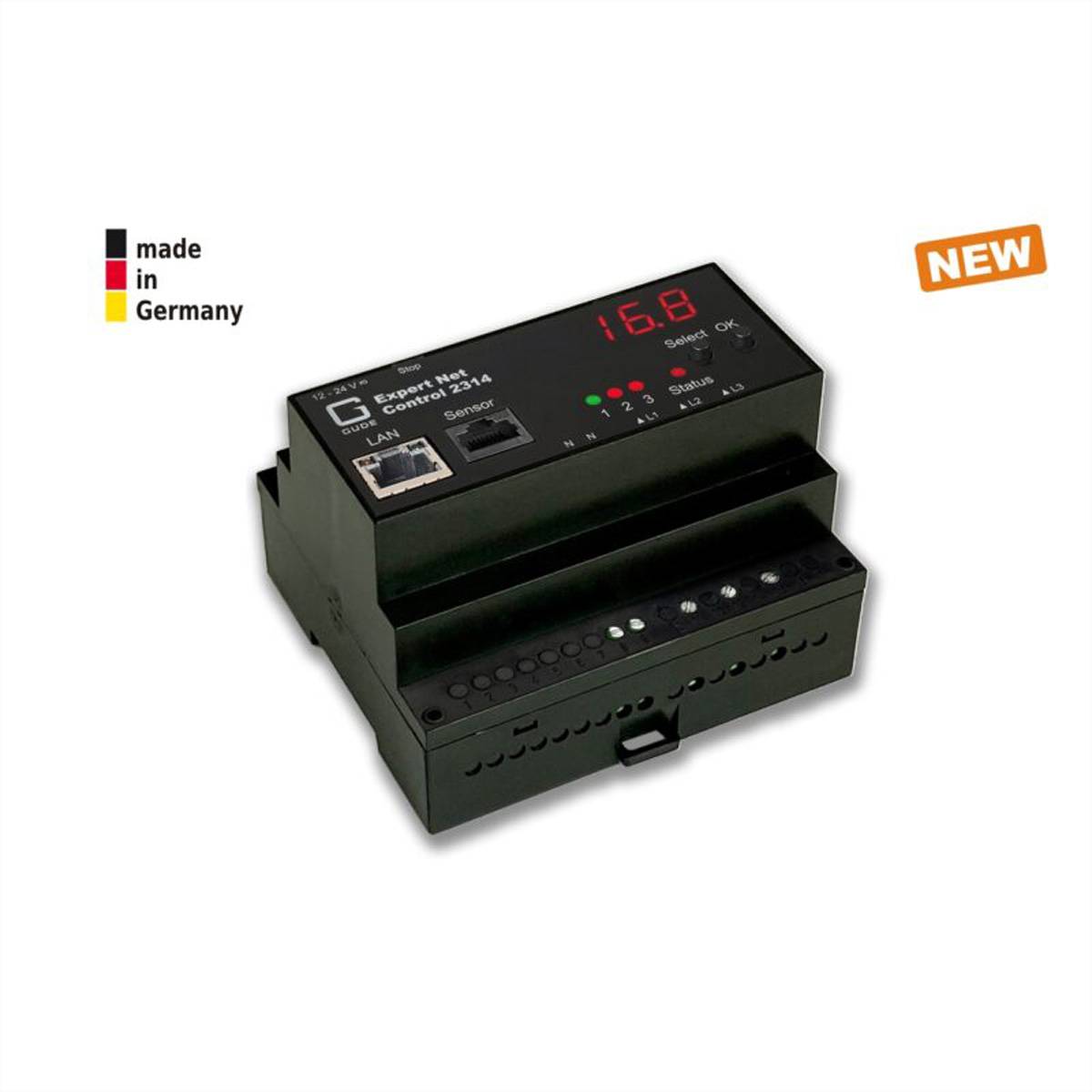

GUDE 2314-1 Socket Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Expert Net Control 2314-1 for more security and control in IT installations...
- 3 individually switchable relay outputs
- Monitoring of ambient temperature and air humidity
- Easy-to-read LED display
- Easy and flexible configuration via web browser
- Low internal consumption
Technical specifications
- Product group: Socket strips
- Product type: Remote controlled socket
- Colour, black
- Function: Remote switching via IP
- DIN rail design
- Max. Load capacity: 230 V alternating current or 12/24V direct current
- Max. voltage 230V
- On/off switch: Yes
- Switch type IP
- Number of socket pots: 4
- Number of outputs/angle 4 x relay terminals
- Arrangement of the outputs: Straight, rear
- Material (housing): Plastic
- 1 x DC terminal, 1 x AC terminal,
- Technical features: 1 x connection terminal for emergency off, 1 sensor
- Height: 70 mm
- Width 90 mm
- Depth: 105 mm
- Weight: 300 g
- Packaging height 90 mm
- Package width 130 mm
- Packaging depth 190 mm
- Package weight: 0,352 kg
- Gross weight: 0.352
- Product type
Socket
- Outlets
4
- Factory colour
Black
- Content
1 pc(s)
- Type
Other installation technique
- Weight
0.352
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797330 GUDE 2314-1 Socket Black
User & Safety Instructions
User & Safety Instructions 3797330 GUDE 2314-1 Socket Black
Description
Expert Net Control 2314-1 for more security and control in IT installations Remote switching of 3 relay outputs. Detailed power measurement per output. Connection for plug-and-play sensors. Easy and quick mounting on DIN rail. NTP function can be activated. Special high inrush relays prevent the relay contacts from sticking in case of switching impulse peaks.
This text is machine translated.
Features
- Gude Expert Net Control - Relay Controller - IP, with 3 channels and energy metering
- Product type : Relay controller
- Power source : Power adapter
- Connectivity : Wired - 10/100 Ethernet
- Remote management interface : Ethernet 10/100
- Dimensions (width x depth x height): 10.5 cm x 9 cm x 7 cm
Scope of delivery
- Plug adapter, instructions, CD
