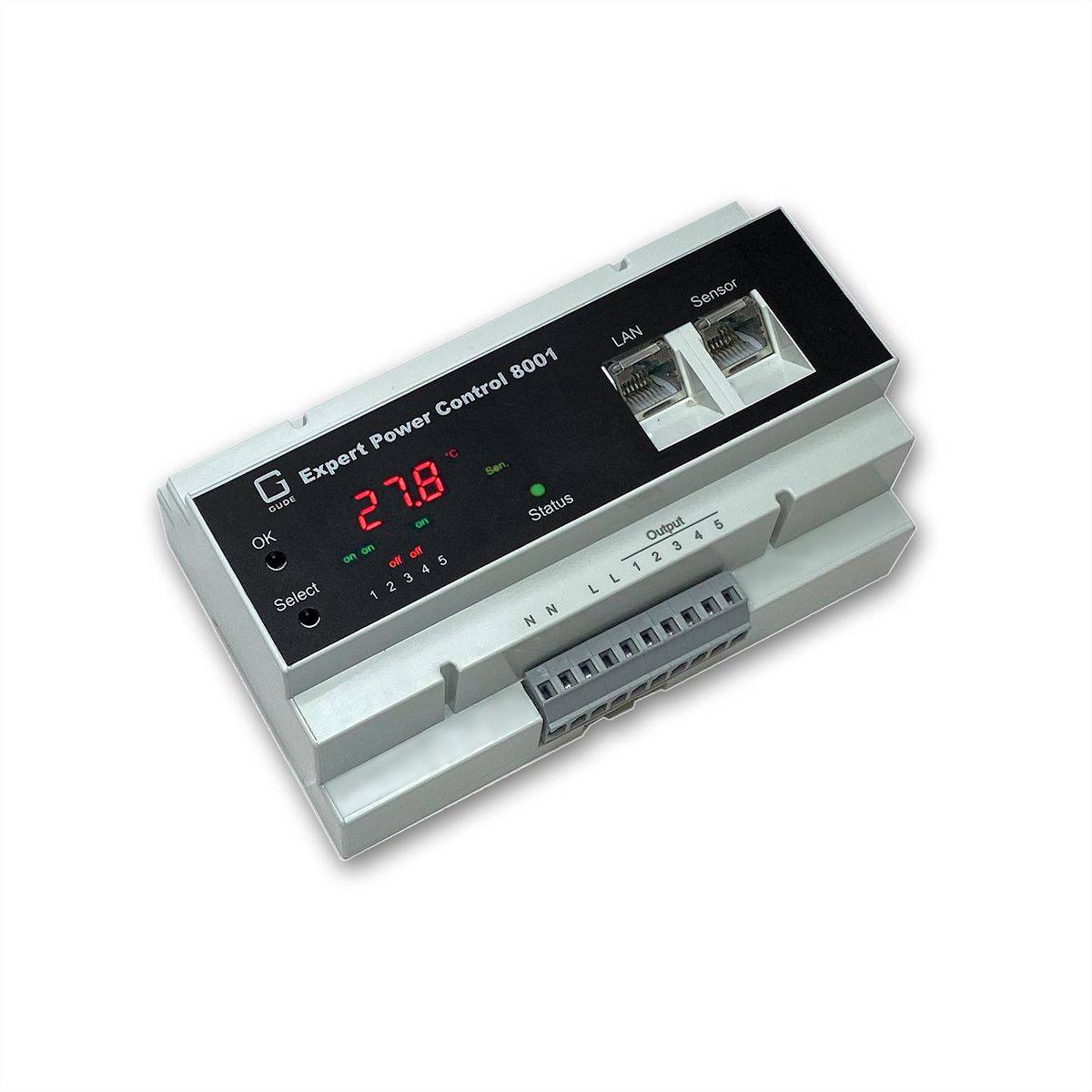

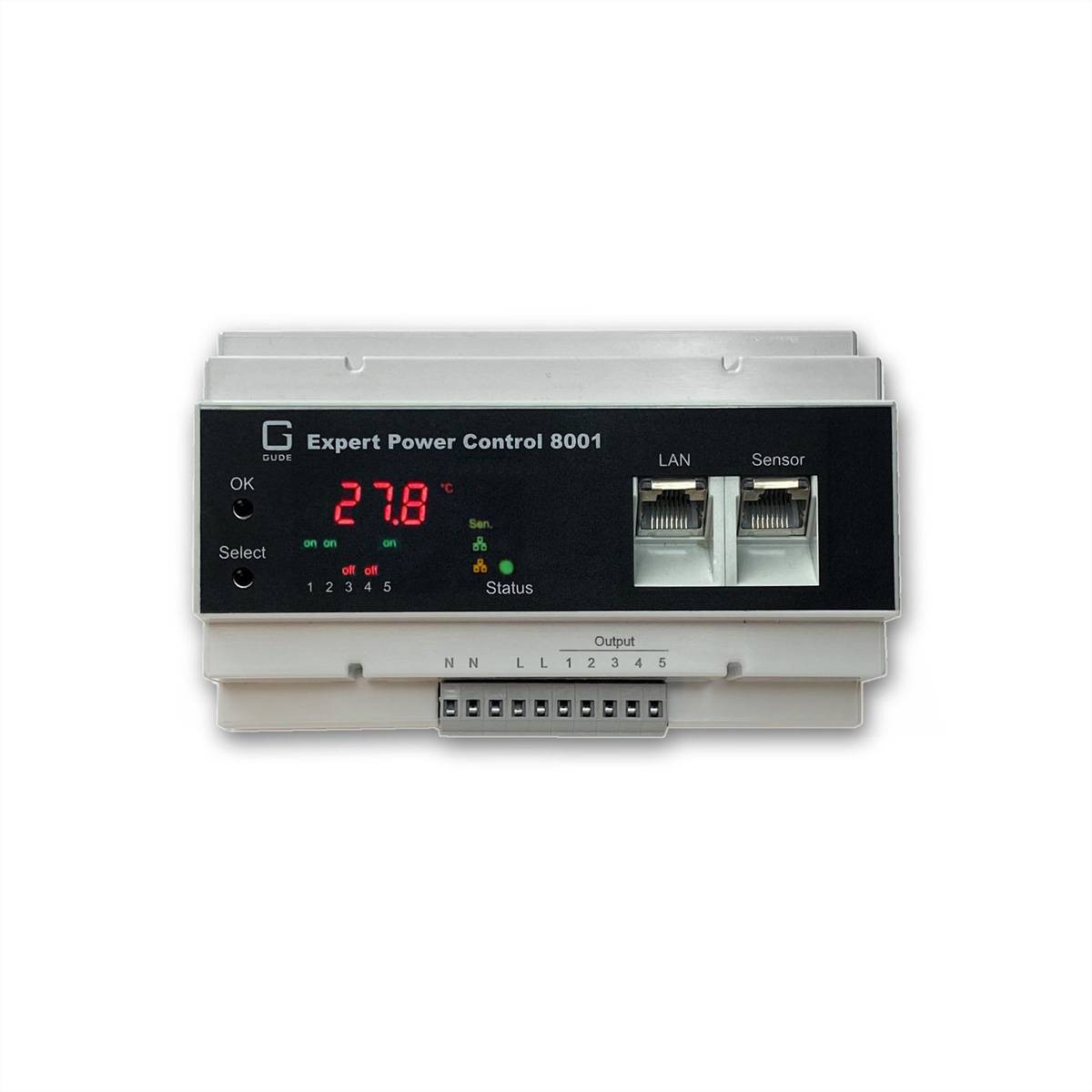

GUDE 8001-1 Socket Individually switchable Multicolour
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
5-way switched PDU for the DIN rail for increasing the operational safety and energy efficiency...
- 5 switchable relay outputs
- Easy-to-read LED display
- 5-channel watchdog for monitoring connected devices
- Firmware update via Ethernet during operation
- Low internal consumption
Technical specifications
- Product group: Socket strips
- Product type: Remote controlled socket
- Colour: Multi-colored
- Function: Remote switching via IP
- DIN rail design
- Max. Load capacity: 230 V alternating current or 12/24V direct current
- Max. voltage 230V
- On/off switch: Yes
- Switch type IP
- Number of socket pots: 5
- Number of outputs/angle 5 x relay terminals
- Arrangement of the outputs: Straight, rear
- Material (housing): Plastic
- Technical features: 1 sensor, 5 switching outputs
- Height: 65 mm
- Width 143 mm
- Depth: 90 mm
- Weight 400 g
- Packaging height 80 mm
- Package width 120 mm
- Packaging depth 190 mm
- Package weight: 0,491 kg
- Gross weight: 0.491
- Product type
Socket
- Light bulb features
Individually switchable
- Outlets
5
- Mounting type
DIN rail
- Factory colour
Multicolour
- Dim
(L x W x H) 90 x 143 x 65 mm
- Length
90 mm
- Width
143 mm
- Height
65 mm
- Content
1 pc(s)
- Material
Plastic
- Operating voltage
230 V AC
- Weight
0.491
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797331 GUDE 8001-1 Socket Individually switchable Multicolour
User & Safety Instructions
User & Safety Instructions 3797331 GUDE 8001-1 Socket Individually switchable Multicolour
Description
5-way switched PDU for the DIN rail for increasing the operational safety and the energy efficiency 5 load outputs with switches at the device, by HTTPS, SNMP as well as switchable by means of command line tool. Switch state and switch-on delay (0...9999 seconds) adjustable after power failure. Peak currents in case of simultaneous switching operations are prevented by an automatic latency of 1 second. Programmable on/off sequence. Load outputs can be switched when preset sensor thresholds are exceeded. 2 energy counters per load output, one counter counts permanently, the other meter can be reset (outlet-metered). Measurement of current, voltage, phase angle, power factor, frequency, Active, apparent and reactive power. 5-channel watchdog, each load output can be assigned a watchdog (ICMP/TCP). Connection for plug-n-play sensors for environment monitoring (temperature, humidity and air pressure). Firmware update possible during operation via Ethernet. LED display for indication of total current, IP address, sensor values and error messages Status display of outputs by means of two-colored LEDs. Messages via email, syslog, SNMP traps, telnet, SSH and MQTT
This text is machine translated.
Features
- GUDE Expert Power CONTROL 8001-1 - Power distribution unit
- Device type : Power distribution unit - DIN rail mounting possible
- Weight 400 g
- Input voltage : 230 V AC
- Output terminals : 5 x connection terminals
- Network : Ethernet 10/100
- Remote management protocol : SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, Modbus, DHCP, IPv6, MQTT
- Dimensions (width x depth x height): 14.3 cm x 9 cm x 6.5 cm
Scope of delivery
- Plug adapter, instructions, CD
