GUDE 8021-1 Socket Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Güde 8021-1 Remote Power controller black
- Current (maximum): 16 A.
- 10.100 Mbit/s
- Black
Technical specifications
- Product type
Socket
- Outlets
4
- Factory colour
Black
- Dim
(W x H x D) 439 x 44 x 178 mm
- Width
439 mm
- Height
44 mm
- Depth
178 mm
- Content
1 pc(s)
- Cable length
0 mm
- Version
Mains cable
- Cable use
Current
- Load (max.)
16 A
- 10/100/1000 Mbps ports
1 x
- Input voltage
230 V
- Weight
2.7 kg
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- RS-232 ports
1
- On/off switch
yes
- Operating relative humidity (H-H)
0 - 95 %
- Current loads per port (max)
10 A
- Storage temperature (T-T)
-20 - 70 °C
Documents & Downloads
Datasheet
Datasheet 3797243 GUDE 8021-1 Socket Black
User & Safety Instructions
User & Safety Instructions 3797243 GUDE 8021-1 Socket Black
Description

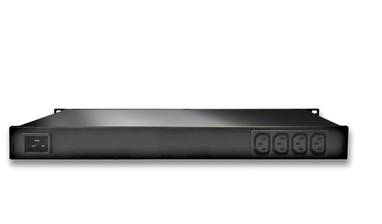

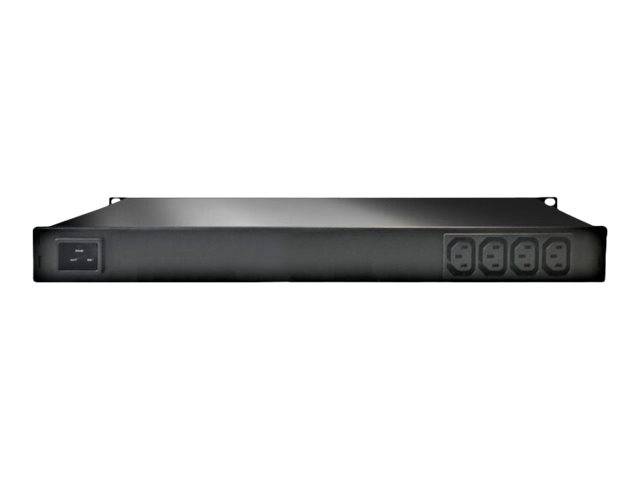

The Expert Power control 8021-1 enables the switching and the current measurement of electrical devices via a TCP/IP network, a serial connection or via mobile device APP. On the back of the device there are 4 load outputs IEC C13 (max. 10 A). These Power ports are each switched separately via a web interface, via the serial interface, via SNMP or the button on the device. It supports SNMPv3, SSL and IPv6, as well as Telnet, Radius and Modbus TCP.
The Expert Power control 8021-1 has two integrated energy counters. The measurement of a large number of electrical variables makes it possible for the user to recognize and exploit power saving potentials in the IT environment. In addition, the operator receives warning messages when fault currents occur (differential current measurement type A). This allows preventive maintenance before downtime occurs.
This text is machine translated.
The Expert Power control 8021-1 has two integrated energy counters. The measurement of a large number of electrical variables makes it possible for the user to recognize and exploit power saving potentials in the IT environment. In addition, the operator receives warning messages when fault currents occur (differential current measurement type A). This allows preventive maintenance before downtime occurs.
This text is machine translated.
Features
- Switching and controlling servers and IT devices in the server room and data center
- Switch network or media technology devices by media controls of well-known AV manufacturers
- (Atlanta, Barco, Crestron, Extron, Neets)
- Remotely restart PCs, servers, routers, and switches
- Reduce the power consumption of standby devices through schedule control
- Network monitoring through integration with monitoring software (PRTG, Icinga, Nagios, Power IQ, Tivoli)
- Environment monitoring by connected sensors (temperature, humidity and air pressure)
- Usage places
Scope of delivery
- Expert Power control, connection cable (protective contact - IEC C19) Quick start guide
