GUDE 8041-1 Socket Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

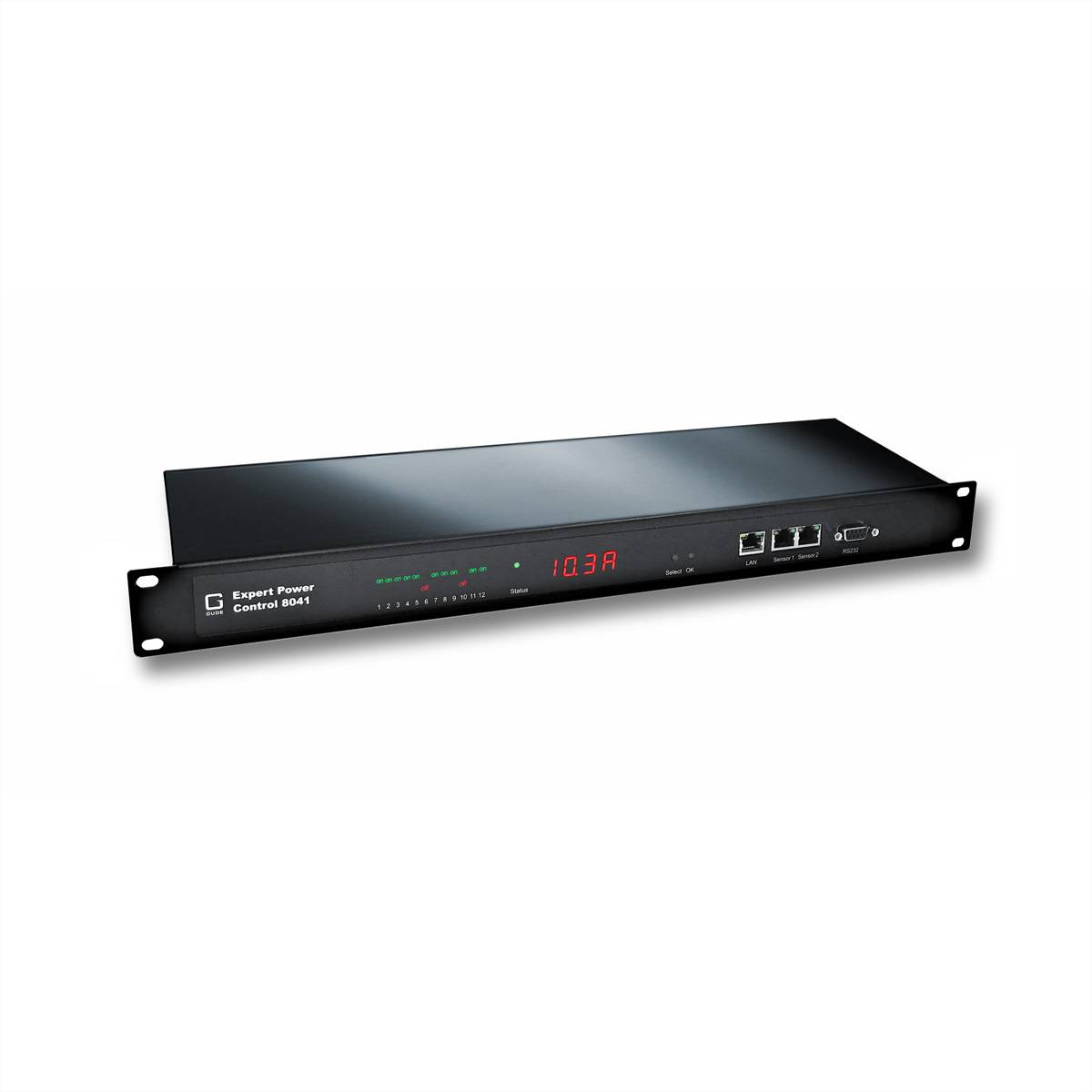

Güde 8041-1 Power Distribution Unit (PDU) 12 AC Outputs 1U Black
- Meter, Monitored, Modified 1U Black
- LED

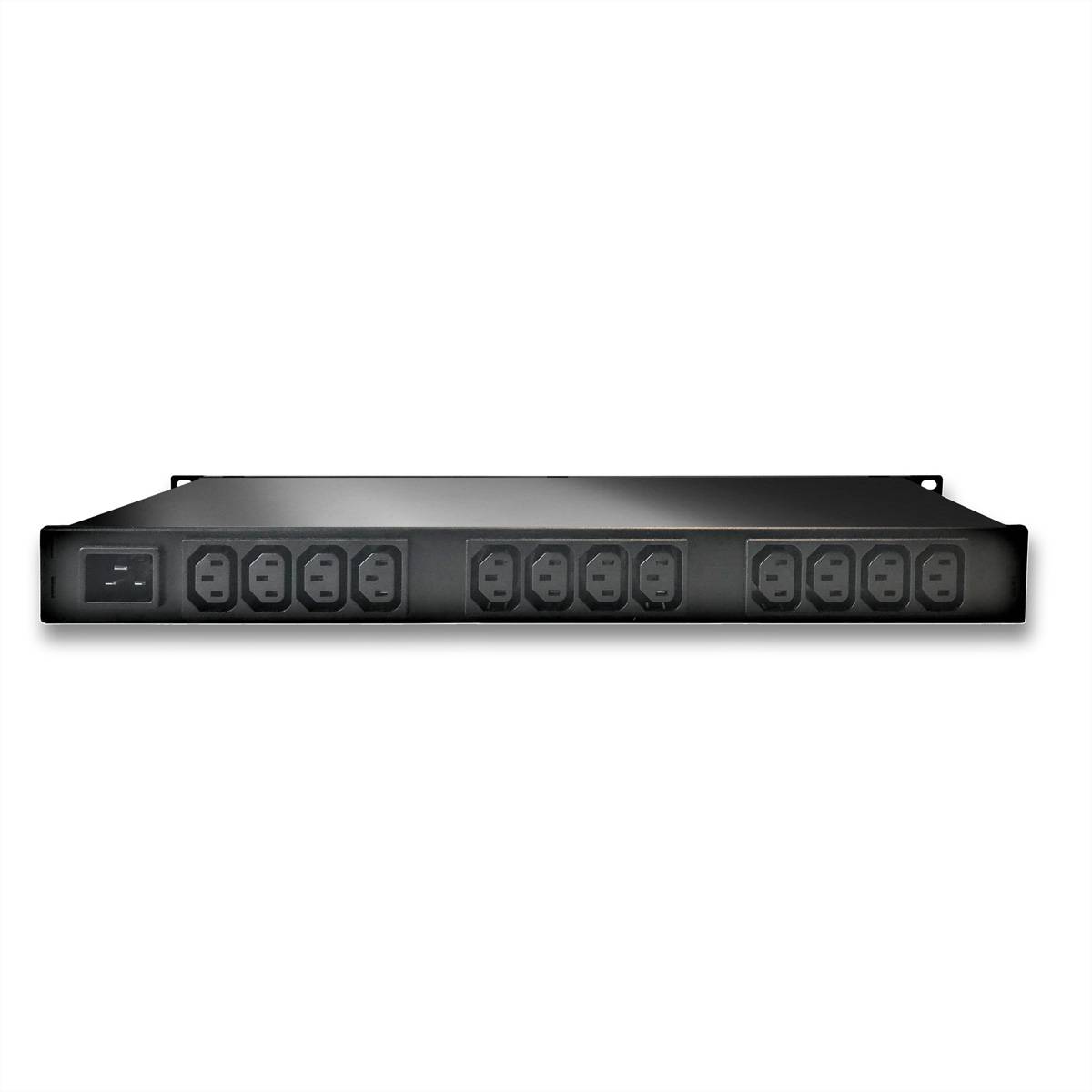

- 12 AC-outputs C13-coupler
Technical specifications
- Rack capacity: 1U
- Number of AC outputs: 12 AC outputs
- Product type
Socket
- Outlets
12
- Factory colour
Black
- Dim
(W x H x D) 439 x 44 x 178 mm
- Width
439 mm
- Height
44 mm
- Depth
178 mm
- Content
1 pc(s)
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- Load (max.)
16 A
- 10/100/1000 Mbps ports
1 x
- Weight
2.7 kg
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Serial ports quantity
1
- Manual
yes
- Firmware upgradeable
yes
- Operating relative humidity (H-H)
0 - 95 %
- Storage temperature (T-T)
-20 - 70 °C
Documents & Downloads
Datasheet
Datasheet 3797246 GUDE 8041-1 Socket Black
User & Safety Instructions
User & Safety Instructions 3797246 GUDE 8041-1 Socket Black
Description
12-way switched PDU for increasing the operational safety and the energy efficiency in IT networks
The Expert Power control 8041-series enables the switching and the current measurement of electrical devices via a TCP/IP network, a serial connection or via mobile device APP. These Power ports are each switched separately via a web interface, via the serial interface, via SNMP or the button on the device. It supports SNMPv3, SSL and IPv6, as well as Telnet, Radius and Modbus TCP. The switched PDUs of the Expert Power Control 8041 series have two built-in energy counters. The measurement of a large number of electrical variables makes it possible for the user to recognize and exploit power saving potentials in the IT environment. In addition, the operator receives warning messages when fault currents occur (differential current measurement type A). This allows preventive maintenance before downtime occurs.
This text is machine translated.
Features
- Switching and controlling servers and IT devices in the server room and data center
- Switch network or media technology devices by media controls of well-known AV manufacturers
- (Atlanta, Barco, Crestron, Extron, Neets)
- Remotely restart PCs, servers, routers, and switches
- Reduce the power consumption of standby devices through schedule control
- Network monitoring through integration with monitoring software (PRTG, Icinga, Nagios, Power IQ, Tivoli)
- Environment monitoring by connected sensors (temperature, humidity and air pressure)
Scope of delivery
- Expert Power control, connection cable (protective contact - IEC C19) Quick start guide
