GUDE 8311-1 Socket Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

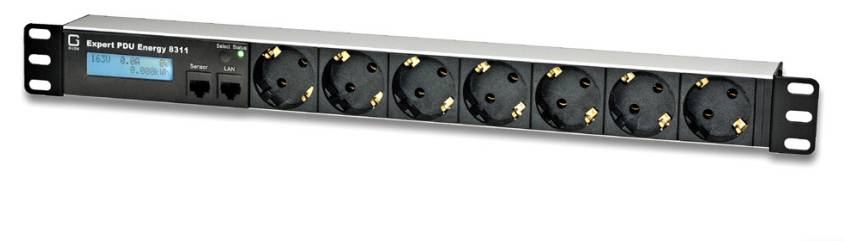

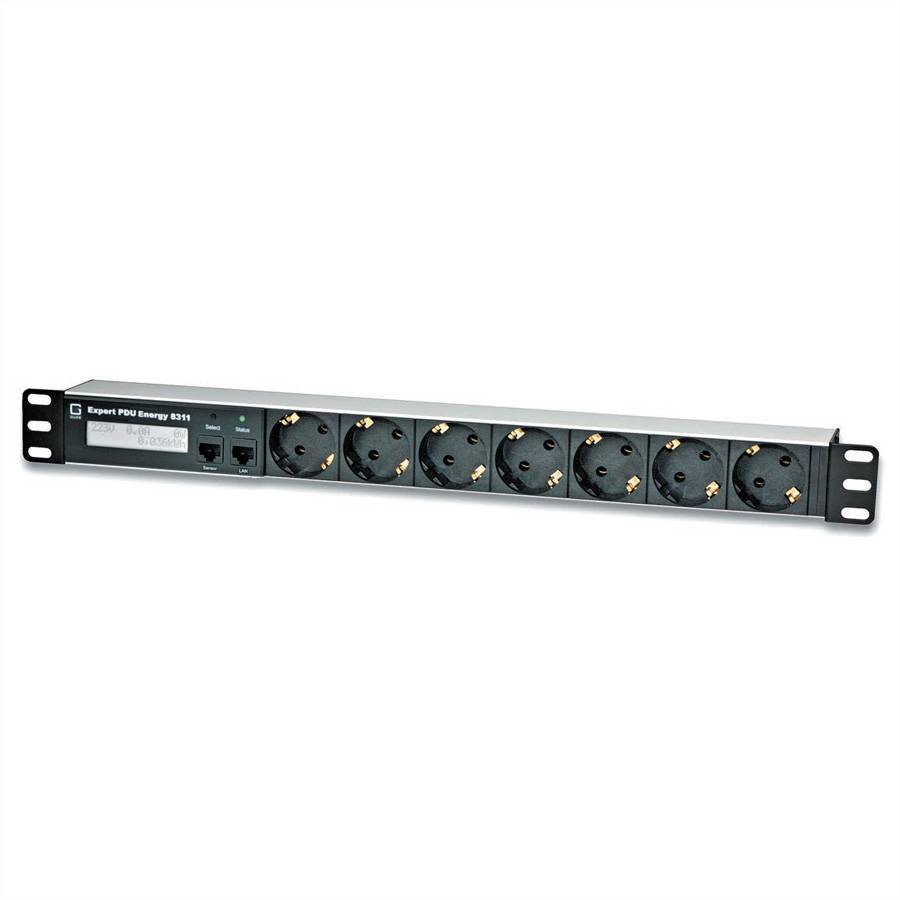

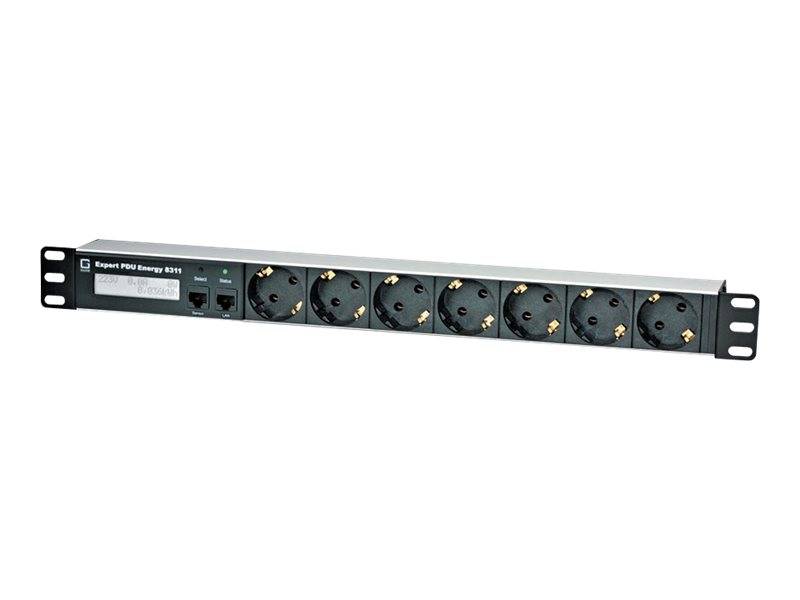

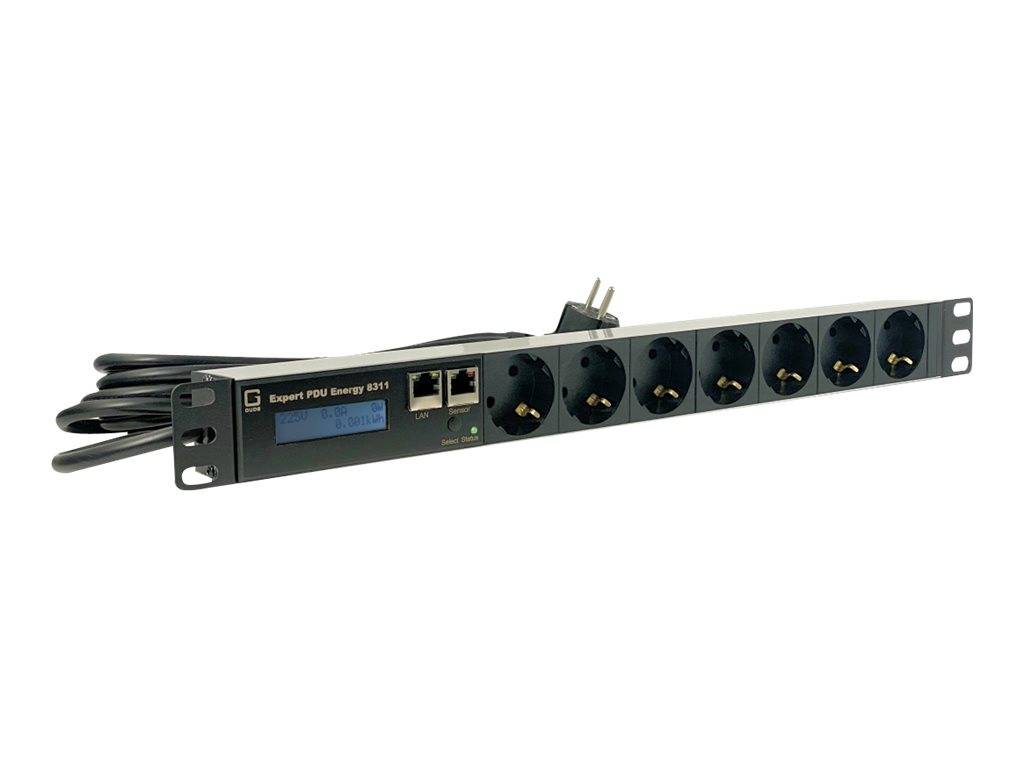

Güde 8311-1 Power Distribution Unit (PDU) 7 AC Outputs 1U Black
- Measuring device 1U Black
- LCD
- 7 AC-outputs type F
Technical specifications
- Rack capacity: 1U
- Number of AC outputs: 7 AC outputs
- Product type
Socket
- Factory colour
Black
- Dim
(W x H x D) 434 x 44 x 44 mm
- Width
434 mm
- Height
44 mm
- Depth
44 mm
- Content
1 pc(s)
- Cable length
1.50 m
- Keyboard layout
German, QWERTZ
- Load (max.)
16 A
- 10/100/1000 Mbps ports
1 x
- Weight
1.5 kg
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Firmware upgradeable
yes
- Operating relative humidity (H-H)
0 - 95 %
- Storage temperature (T-T)
-20 - 70 °C
Documents & Downloads
Datasheet
Datasheet 3797290 GUDE 8311-1 Socket Black
User & Safety Instructions
User & Safety Instructions 3797290 GUDE 8311-1 Socket Black
Description
20-way metered PDU with integrated measuring/evaluation possibilities for TCP/IP networks
The Expert PDU Energy 8311-13 enables the distribution of current as well as measurement of power, current and voltage over a TCP/IP-network. On the front of the device there are 20 load outputs: 4 with safety contact and 16 with IEC C13-connection. Thereby, the Power distribution unit possesses SNMPv3, SSL and IPv6-capability and supports Telnet, radius and modbus TCP. Two energy counters are integrated in the metered PDU and allow the measuring of a large number of electrical quantities. A well-readable, illuminated LCD display (two-line) provides information about all the relevant information of the device. Thanks to sensor connection, optionally available sensors can monitor ambient temperature, air humidity and air pressure. The device is also available in a variant with differential current monitoring type A (Expert PDU Energy 8311-14).
This text is machine translated.
Features
- Gude Expert PDU Energy 8311-1 - power distribution unit
- Device type: Power distribution unit - rack - mountable
- Rack size: 48.3 cm (19") - 1U
- Weight: 1.1 kg
- Input connections : 1 x F-type connectors
- Output terminals : 7 x F-type connectors
- Network : Ethernet 10/100
- Remote management protocol : SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, Modbus
- Dimensions (width x depth x height): 43.5 cm x 4.5 cm x 4.5 cm
Scope of delivery
- Expert PDU Energy 8311-1, Quick Start Guide
