GUDE 8311-4 Socket incl. RCBO, browser-controlled, Energy consumption metering Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

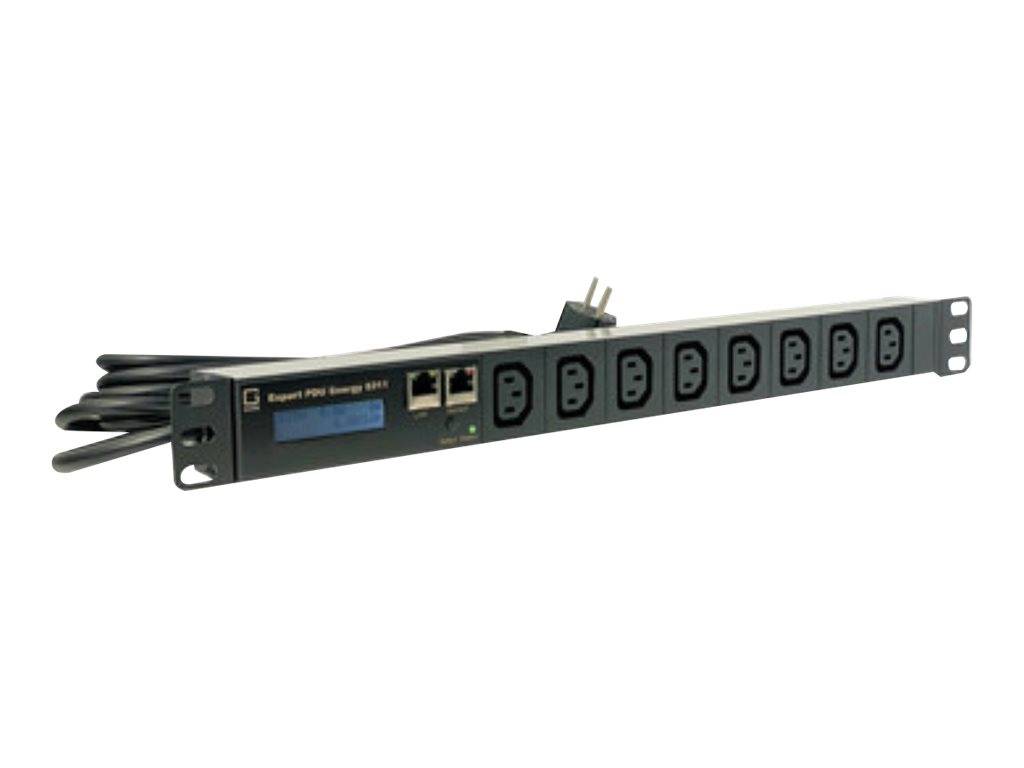

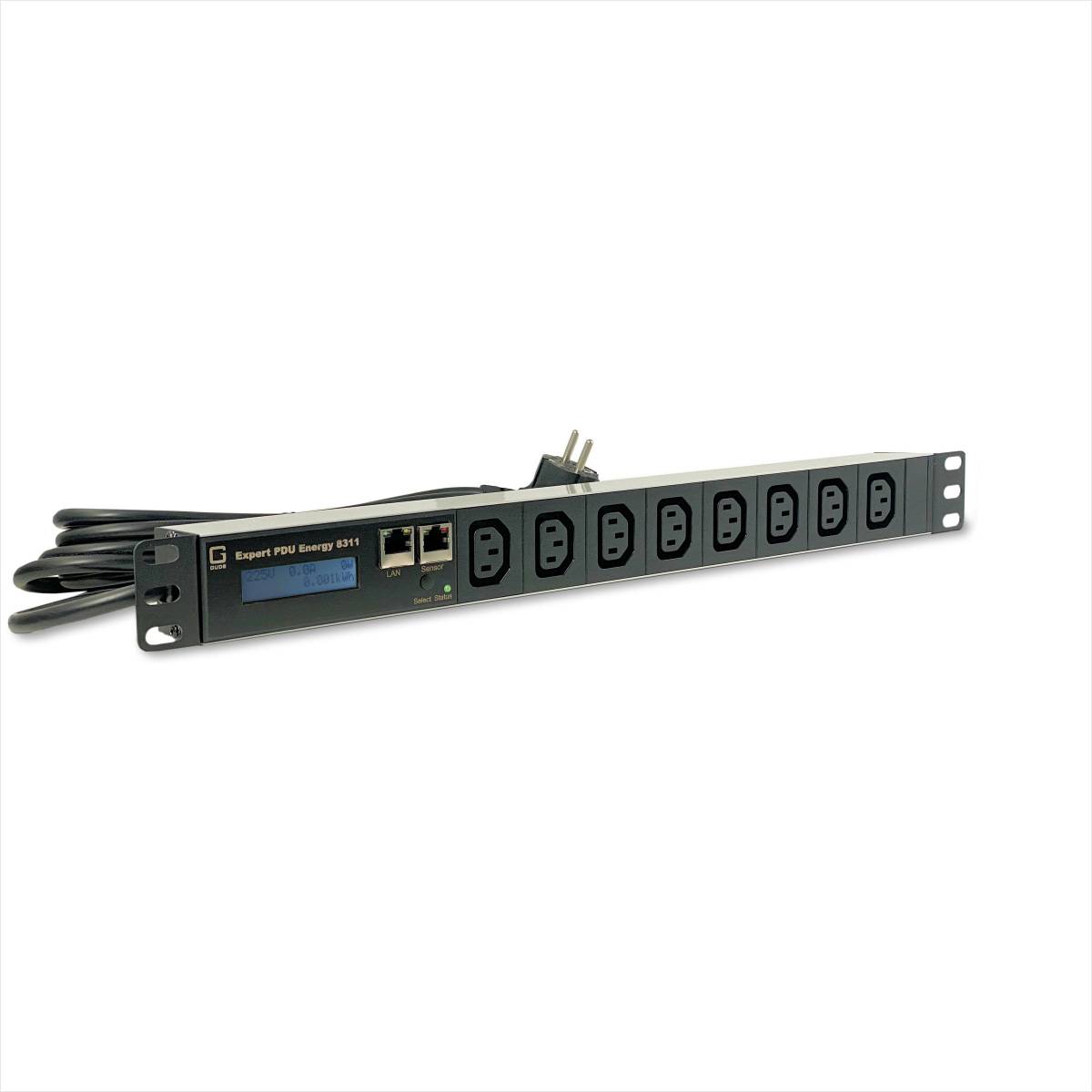

8-way metered PDU with integrated measuring/evaluation options for TCP/IP networks with differential current monitoring type A..
- 8 load outputs (C13) on the front of the device
- Illuminated, two-line LCD display
- Easy and flexible configuration via web browser
- Firmware update possible during operation via Ethernet
- Low internal consumption
Technical specifications
- Product group: Socket strips
- Product type: Energy meter
- Colour, black
- Length: 1.5 m
- Function: Energy meter
- Dimensions (HxWxD) 44 x 434 x 44 mm
- Height: 44 mm
- Width 434 mm
- Depth: 44 mm
- Weight: 1.5 kg
- Packaging height 80 mm
- Package width 150 mm
- Packaging depth 560 mm
- Package weight: 1,222 kg
- Gross weight: 1.222
- Product type
Socket
- Light bulb features
incl. RCBO
browser-controlled
Energy consumption metering
- Outlets
8
- Mounting type
Rack
- Factory colour
Black
- Dim
(W x H) 434 mm x 44 mm
- Width
434 mm
- Height
44 mm
- Type
8311-4
- Content
1 pc(s)
- Cable length
1.50 m
- Keyboard layout
German, QWERTZ
- Plug type
C13 connector
- Power rating
10 A
- Weight
1.222
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797293 GUDE 8311-4 Socket incl. RCBO, browser-controlled, Energy consumption metering Black
User & Safety Instructions
User & Safety Instructions 3797293 GUDE 8311-4 Socket incl. RCBO, browser-controlled, Energy consumption metering Black
Description
8-way metered PDU with integrated measurement/evaluation options for TCP/IP networks with differential current monitoring type A 8 load outputs (C13) on the front panel . Measurement of current, voltage, phase angle, power factor, frequency, Active, apparent and reactive power. 2 energy meters, one counter counts permanently, the other counter can be reset. Differential current monitoring type A. Illuminated two-line LCD display. Connection for optional sensors for surrounding monitoring (temperature, humidity and air pressure) Easy and flexible configuration via web browser, Windows or Linux program. Firmware update possible during operation via Ethernet. IPv6-ready. HTTP/HTTPS, E-MAIL (SSL, STARTTLS), DHCP, SYSLOG. SNMPv1, v2c, v3 (get/trap). TLS 1.0, 1.1, 1.2. Radius and Modbus TCP protocol is supported. Configuration and control via Telnet. Low internal consumption Developed and produced in Germany .
This text is machine translated.
Features
- Gude Expert PDU Energy 8311-4 - power distribution unit
- Device type: Power distribution unit - rack - mountable
- Rack size: 48.3 cm (19") - 1U
- Weight: 1.1 kg
- Input connections: 1 x Power IEC 60320 C13
- Output points : 8 x Power IEC 60320 C13 10 A.
- Network : Ethernet 10/100
- Remote management protocol : SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, Modbus
- Dimensions (width x depth x height): 43.5 cm x 4.5 cm x 4.5 cm
Scope of delivery
- Expert PDU Energy 8311-4, Quick Start Guide
