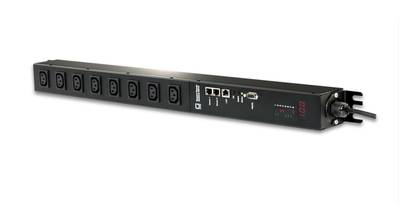

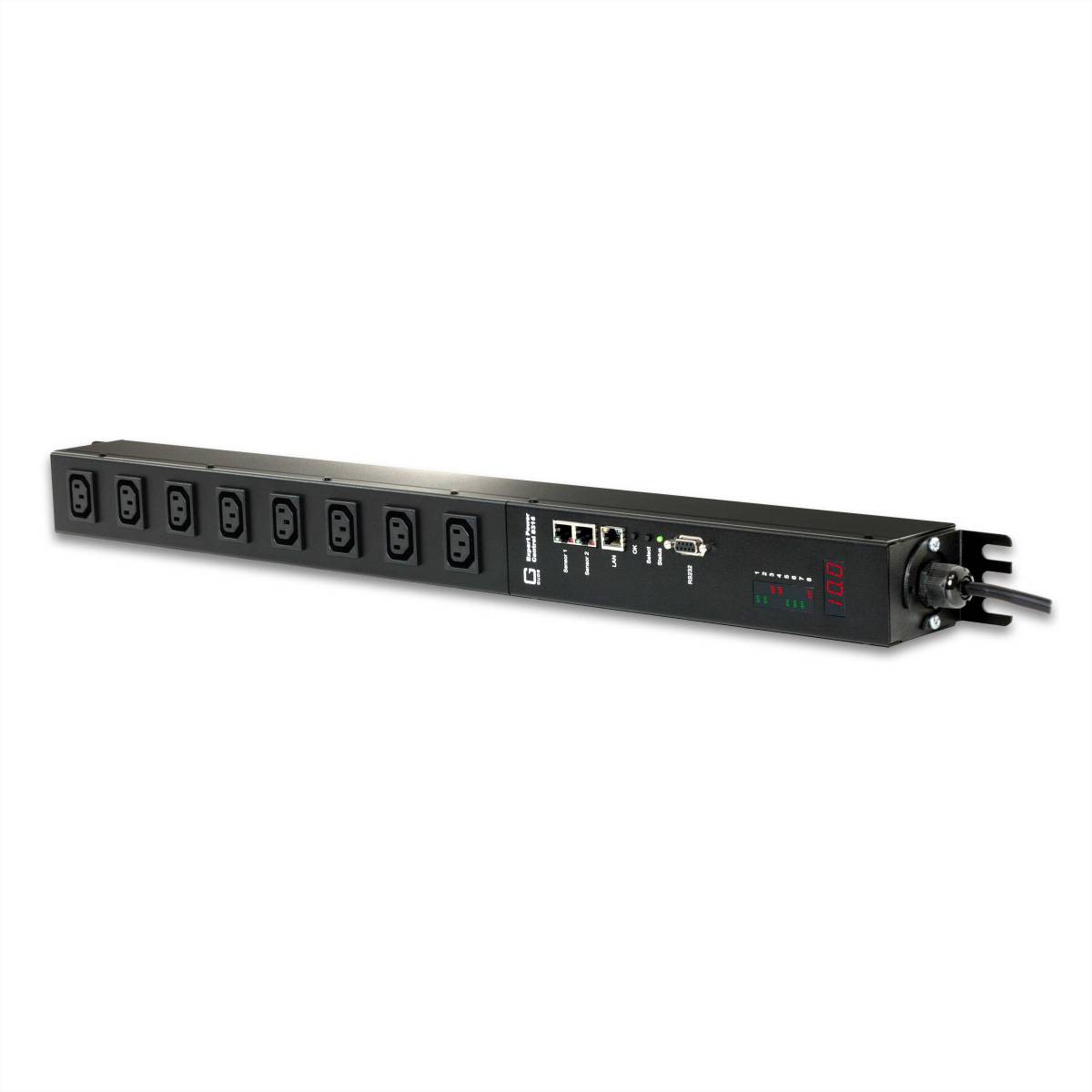

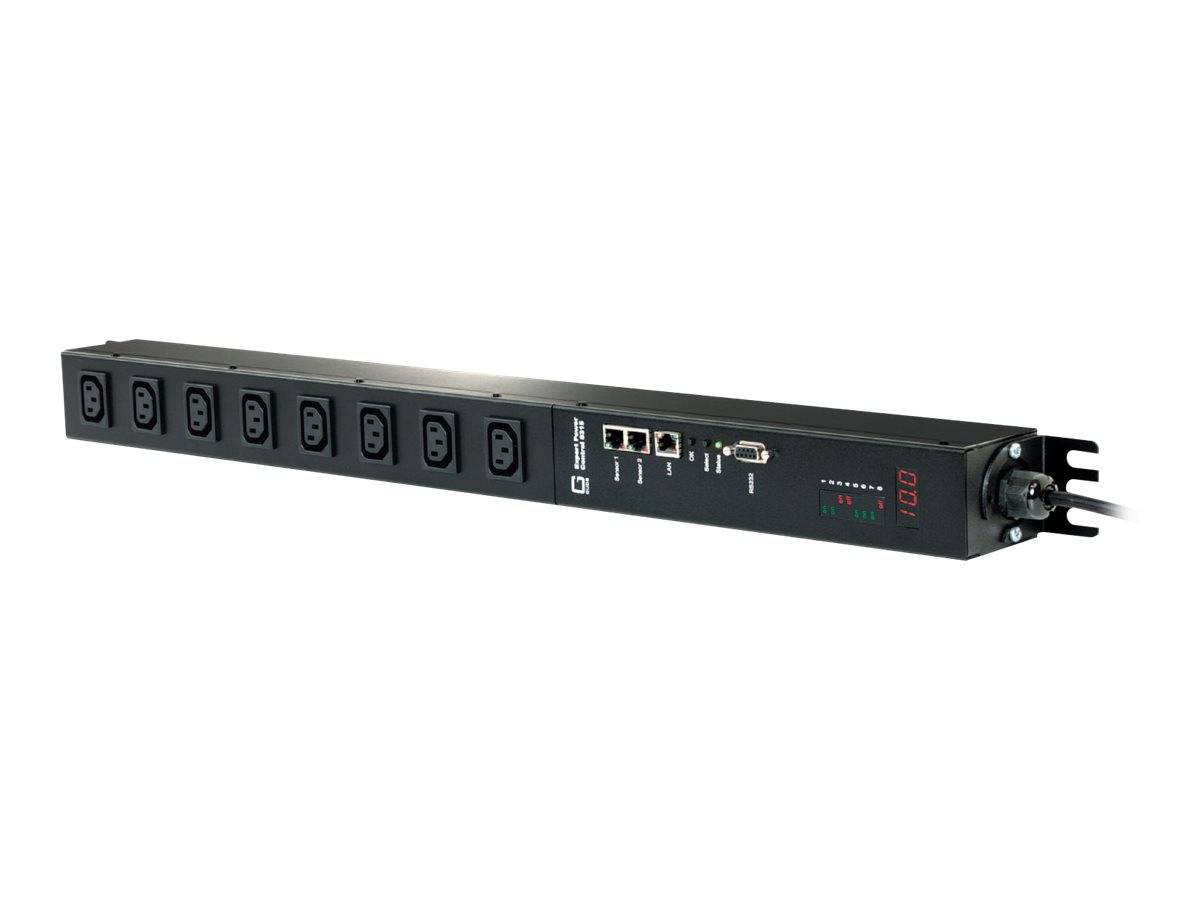

GUDE 8316-2 Socket Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Güde 8316-2 Power Distribution Unit (PDU) 8 AC outputs 0U black
- Meter 0U black
- LED
- 8 AC-outputs C13-coupler
Technical specifications
- Rack capacity 0U
- Number of AC outputs: 8 AC outputs
- Product type
Socket
- Outlets
8
- Factory colour
Black
- Dim
(W x H x D) 690 x 70 x 60 mm
- Width
690 mm
- Height
70 mm
- Depth
60 mm
- Content
1 pc(s)
- Cable length
0 mm
- Version
Connection cable
- Cable use
PC
- Load (max.)
16 A
- 10/100/1000 Mbps ports
1 x
- Weight
2.8 kg
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Serial ports quantity
1
- Firmware upgradeable
yes
- Operating relative humidity (H-H)
0 - 95 %
- Storage temperature (T-T)
-20 - 70 °C
Documents & Downloads
Datasheet
Datasheet 3797305 GUDE 8316-2 Socket Black
User & Safety Instructions
User & Safety Instructions 3797305 GUDE 8316-2 Socket Black
Description
8-way switched PDU with energy measurement per load output
The Expert Power control 8316-series enables the switching and the current measurement of electrical devices via a TCP/IP network or a serial connection. The device front has 8 load outputs, either with protective contact (8316-1) or IEC C13-sockets (8316-2). These 8 Power ports are each switched separately via a web interface, via the serial interface, via SNMP or the button on the device. Thereby, the Power distribution unit possesses SNMPv3, SSL and IPv6-capability and supports Telnet, radius and modbus TCP. In addition to a total current measurement, each load output of the Expert Power control 8316 also has two energy counters (outlet-metered). Thanks to sensor connections, the optional sensors can monitor ambient temperature, humidity and air pressure. The connected consumers can be switched by the IP watchdog when preset sensor or current thresholds are exceeded.
This text is machine translated.
Features
- GUDE Expert Power CONTROL 8316 series 8316-2 - power distribution unit
- Device type: Power distribution unit - rack - mountable
- Rack size : 48.3 cm (19") - 0U
- Weight: 3 kg
- Input voltage : 230 V AC
- Input connections : 1 x current IEC 60320 C20
- Output points : 8 x Power IEC 60320 C13 10 A.
- Network : Ethernet 10/100, RS-232
- Remote management protocol : SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI, MODBUS, ICMP, DHCP, IPv6, RADIUS
- Dimensions (width x depth x height): 6 cm x 7 cm x 69 cm
Scope of delivery
- Plug adapter, instructions, CD
