GÜDE 85079 Gas fire EEC: A (A++ - G) 4200 W
EAN:
Part number:
Item no:
Product data sheetDatasheet (PDF)
Technical specifications
- Product type
Gas fire
4200 W
- Switching stages
2
- Max. operating pressure
50 bar
- Heater features
incl. piezo igniter
- Dim
(L x W x H) 48 x 43 x 74 cm
- Weight
10.4 kg
- Width
43 cm
- Height
74 cm
- Length
48 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2381705 GÜDE 85079 Gas fire EEC: A (A++ - G) 4200 W
User & Safety Instructions
User & Safety Instructions 2381705 GÜDE 85079 Gas fire EEC: A (A++ - G) 4200 W
Description
Description:

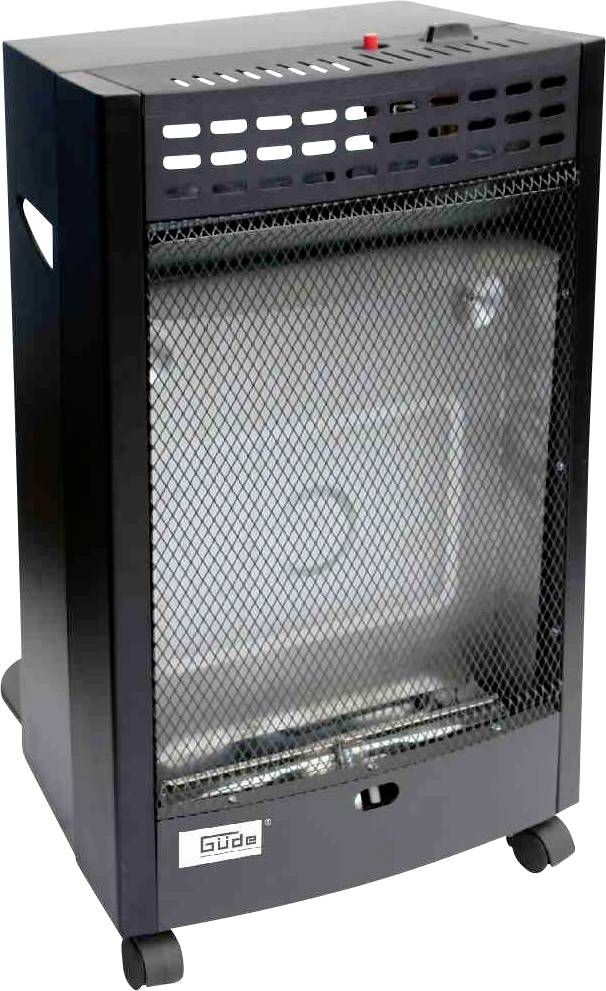

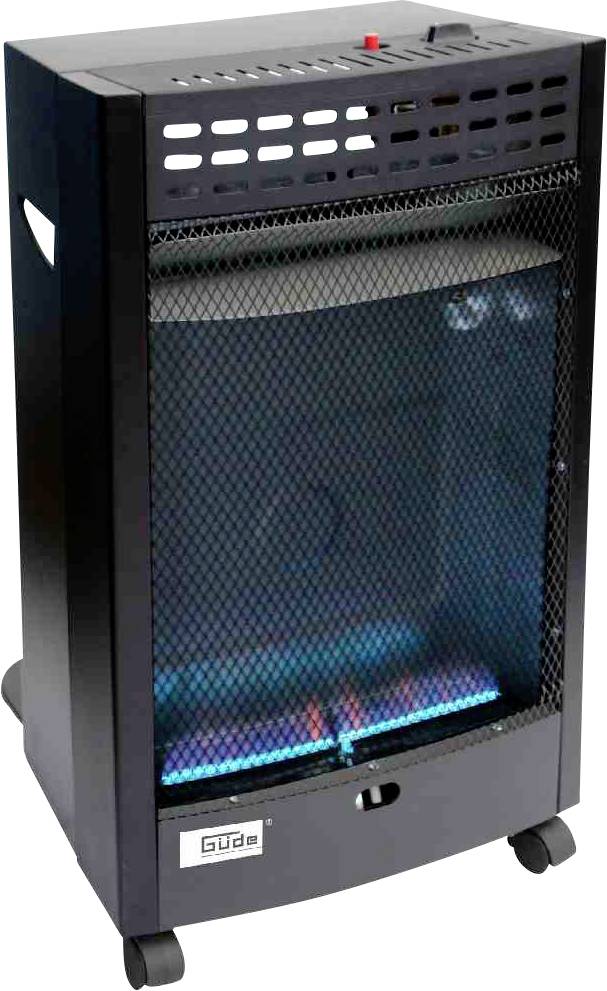

Shapely oven for heating with propane-/butane gas in well ventilated rooms (at least 40 m³). Housing made of special coated steel sheet, front with metal grillee for uniform heat emission. Not suitable for bathrooms, bedrooms or as permanent heating in living rooms.
Features

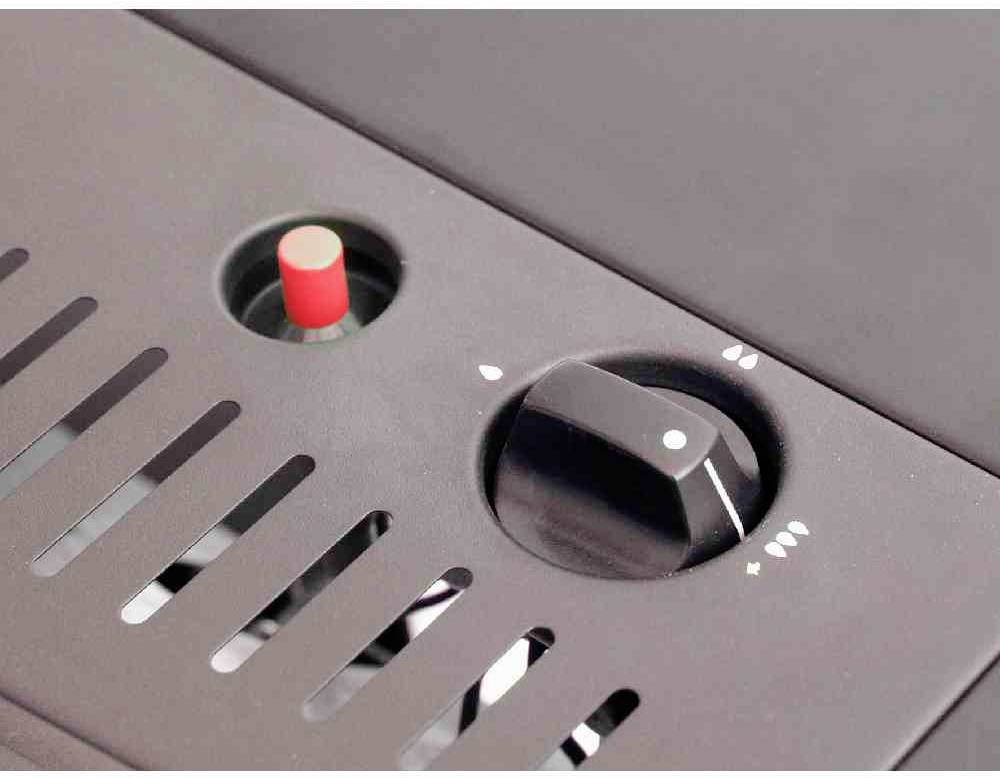

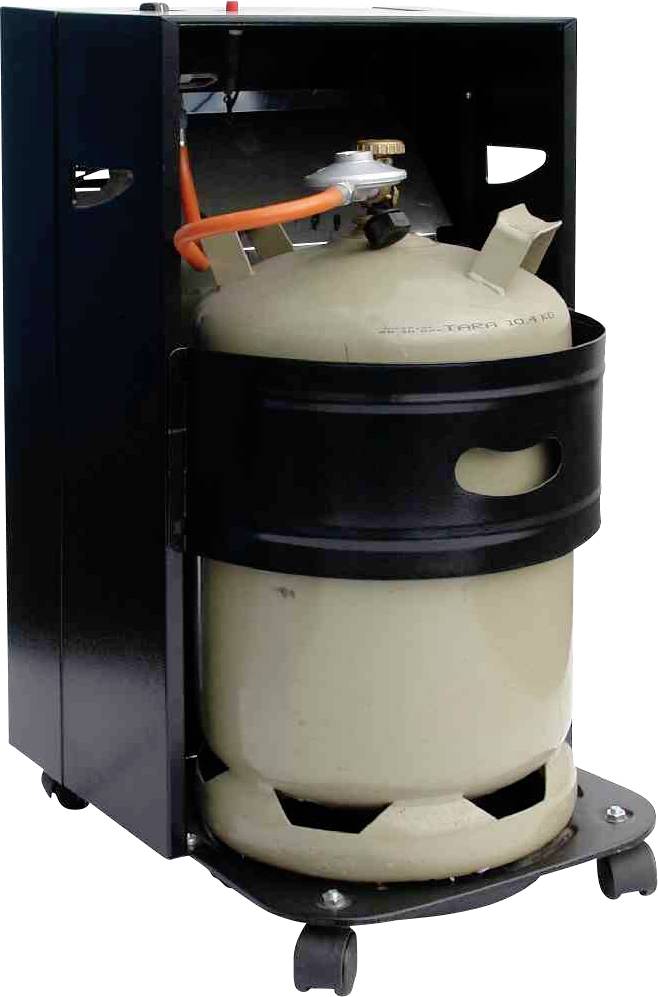

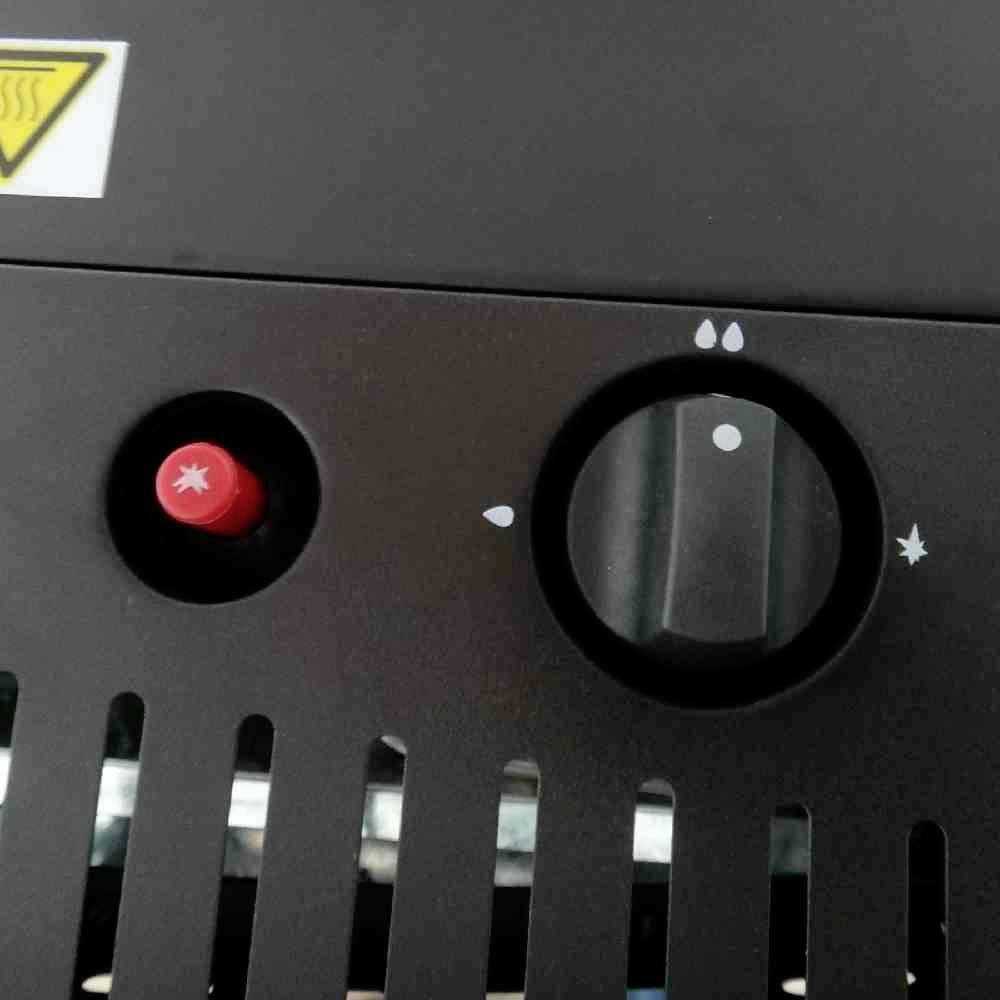

Gas hose, gas regulator, bottle holder (up to 11 kg), rolls, piezo ignition button, control knob (min./max.), thermal fuse.
Two-stage pressure reducer F1-t for indoor use below
Item No.: 85083 available as an option!
Max. Power 2.0 - 4.2 kW
Heating levels 4.2 KW / 2.0 KW
Consumption: 30 g/h
Mounting dimensions L x W x H:475 x425 X745 mm
Nominal connection pressure 50 mbar
Weight net/gross: 10.5 kg/12.1 kg
This text is machine translated.
Shapely oven for heating with propane-/butane gas in well ventilated rooms (at least 40 m³). Housing made of special coated steel sheet, front with metal grillee for uniform heat emission. Not suitable for bathrooms, bedrooms or as permanent heating in living rooms.
Features
Gas hose, gas regulator, bottle holder (up to 11 kg), rolls, piezo ignition button, control knob (min./max.), thermal fuse.
Two-stage pressure reducer F1-t for indoor use below
Item No.: 85083 available as an option!
Max. Power 2.0 - 4.2 kW
Heating levels 4.2 KW / 2.0 KW
Consumption: 30 g/h
Mounting dimensions L x W x H:475 x425 X745 mm
Nominal connection pressure 50 mbar
Weight net/gross: 10.5 kg/12.1 kg
This text is machine translated.
