GÜDE 94077 Chain sharpener 85 W 108 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Chain sharpener
85 W
- Grinding disc Ø
108 mm
- Operating voltage
230 V
- Dim
(L x W) 230 mm x 240 mm
- Length
230 mm
- Width
240 mm
- Weight
2.2 kg
- Idle speed
4800 U/min
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2381760 GÜDE 94077 Chain sharpener 85 W 108 mm
Description
Description:

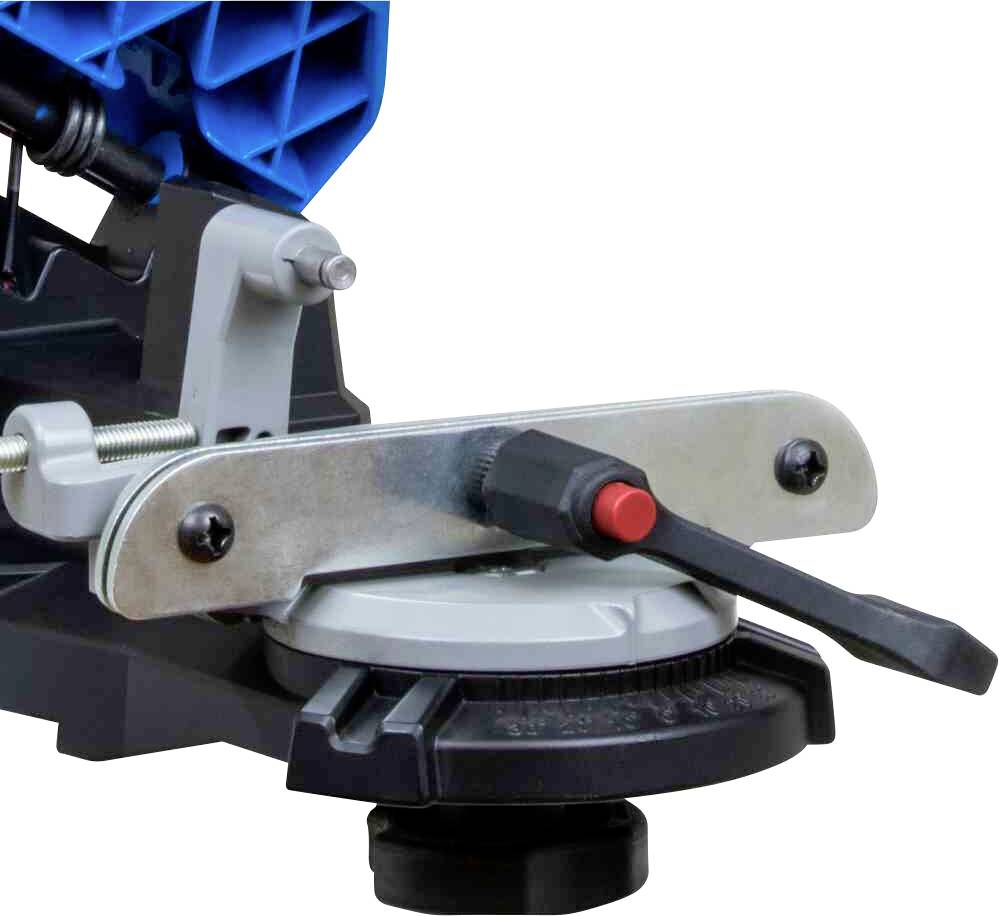

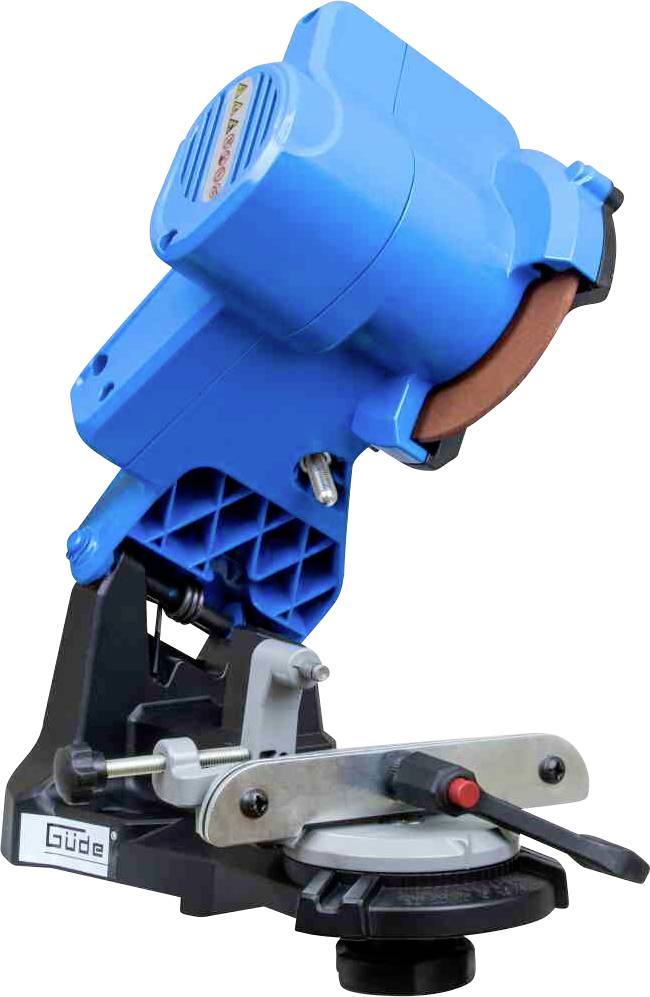

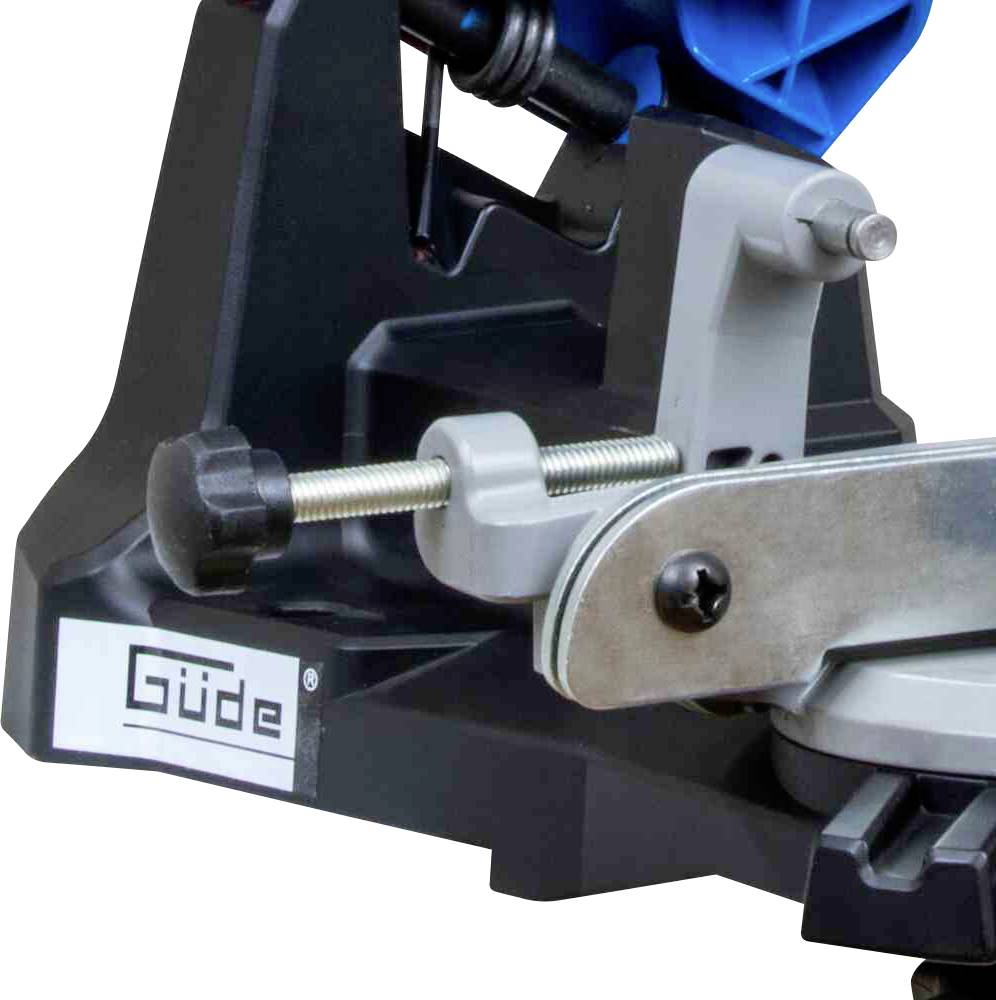

Robust universal - saw chain sharpener for all common saw chain types for fixed mounting. Powerful motor, 2 x 35° scale, angle of sharpness comfortably adjustable by hand wheel, chain guide rail with variable adjustable stop. Chain fixing and locking by gripping clamping screws. Easy sharpening of the cutting teeth by pressing on the motor housing.
Features
Grinding disc 108 mm
Application areas:
Loops of common saw chains
Connection 230 V
Frequency / protection class 50 Hz / IP 21
Protection class: II
Maximum power 85 W
Engine speed 4800 rpm
Adjustment angle 35° left/right

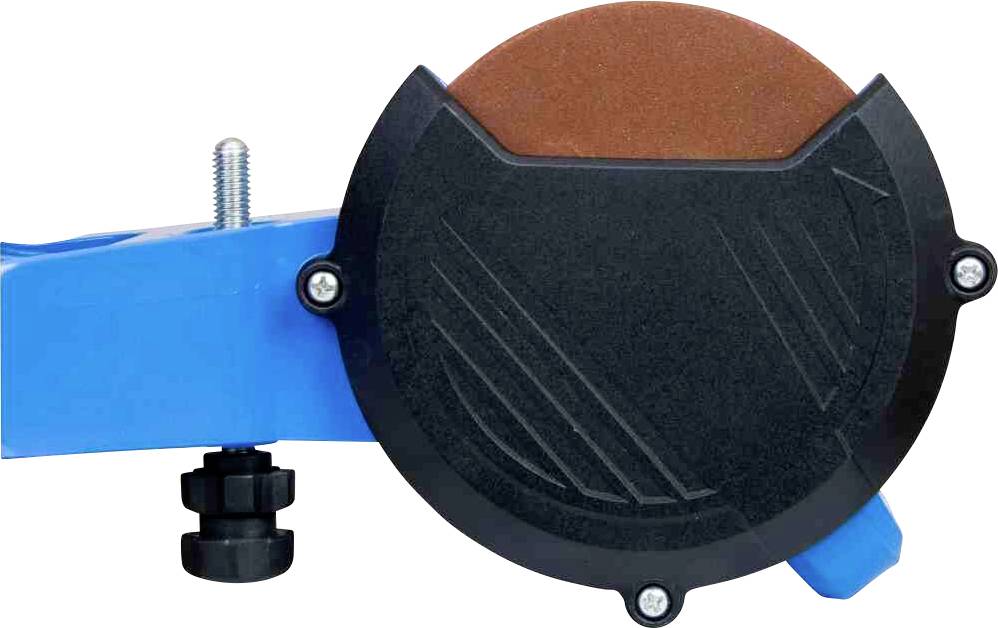

Grinding disc 108 x 23 x 3.2 mm
Connection cable: Approx. 1.5 m / H05 VV-F
Working area L x W 200 x 270 mm
Noise value specification: LWA 70 dB
Weight: approx 2.2 kg
Dimensions L x W x H: 230 x 240 x 360 mm
