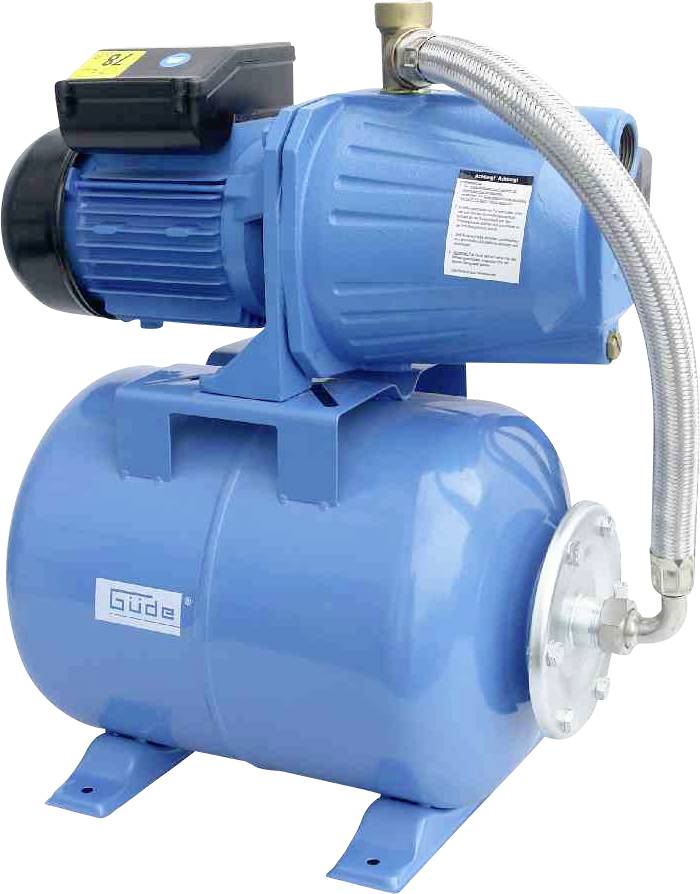

GÜDE 94195 94195 Domestic water pump 4000 l/h
EAN:
Part number:
Item no:
Technical specifications
- Integrated power supply: Yes
- Material Drive shaft: Brass
- Boiler material: Steel
- Pump housing material: Cast steel
- Product type
Domestic water pump
- Power (P2)
1300 W
- Max. feed rate
4000 l/h
- Max. delivery head
48 m
- Max. discharge pressure
4.8 bar
- Selfpriming up to
7.5 m
- Weight
20.6 g
- Dim
(L x W x H) 54 x 30 x 54 cm
- Length
54 cm
- Width
30 cm
- Height
54 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2382172 GÜDE 94195 94195 Domestic water pump 4000 l/h
Description
House WATER WORKS HWW 1300 G
Connection/frequency 230 V~50 Hz
Motor power: 1300 W/P1
Protection class IP X4
Max. flow 4000 l/h
Max. Delivery height 48 m
Max. Suction height 7.5 m
Hose connection 25.4 mm (1") IG
Max. Water temperature: 35 °C.
Tank capacity 24 l
Noise value specification: LWA 78 dB
Mounting dimensions L x W x H 540 x 300 x 540 mm
Weight net/gross: 19.6 kg/22 kg
Professional domestic water supply with automatic pressure switch.
Areas of application: For automatic water supply or irrigation of house, yard and garden with rain-, custom- or ground water. It is also ideal for pumping water from wells and cisterns. Self-priming after filling the pump body with suction hose and check valve.

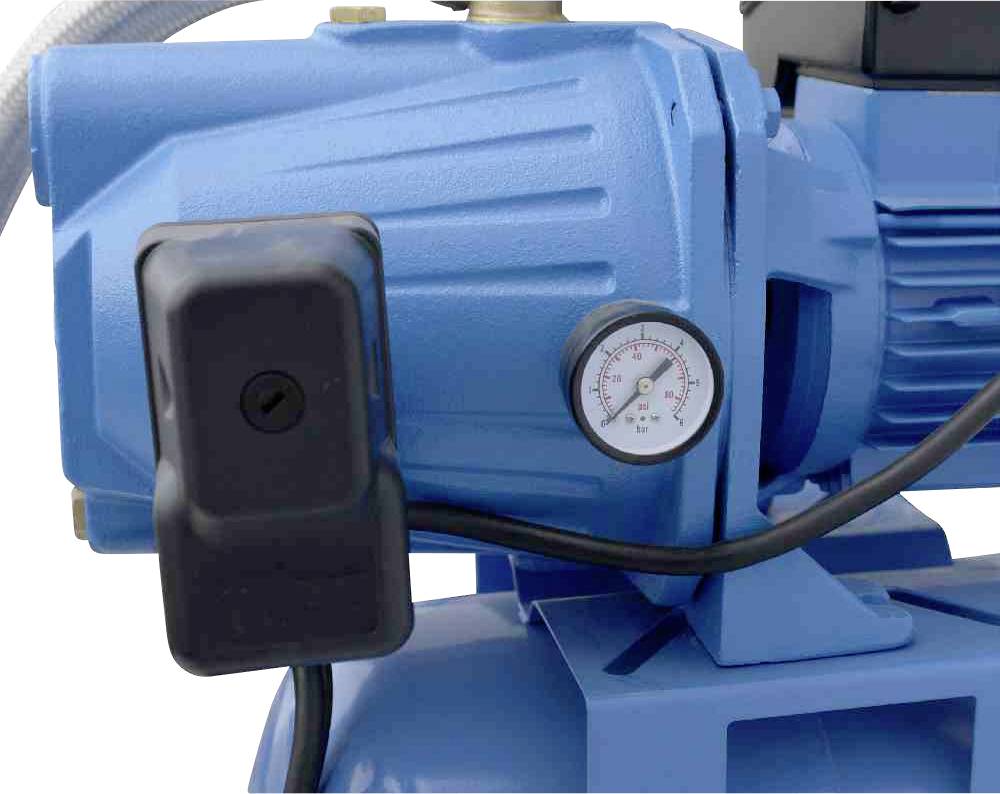

Equipment: Pump casing made of steel casting, ventilation and drainage screw, impeller made of brass, 24 liter steel tank, pressure gauge, On/off switch, pressure switch, thermal protection and motor protection switch, pedestal made of metal, splash-protected.
This text is machine translated.
Connection/frequency 230 V~50 Hz
Motor power: 1300 W/P1
Protection class IP X4
Max. flow 4000 l/h
Max. Delivery height 48 m
Max. Suction height 7.5 m
Hose connection 25.4 mm (1") IG
Max. Water temperature: 35 °C.
Tank capacity 24 l
Noise value specification: LWA 78 dB
Mounting dimensions L x W x H 540 x 300 x 540 mm
Weight net/gross: 19.6 kg/22 kg
Professional domestic water supply with automatic pressure switch.
Areas of application: For automatic water supply or irrigation of house, yard and garden with rain-, custom- or ground water. It is also ideal for pumping water from wells and cisterns. Self-priming after filling the pump body with suction hose and check valve.
Equipment: Pump casing made of steel casting, ventilation and drainage screw, impeller made of brass, 24 liter steel tank, pressure gauge, On/off switch, pressure switch, thermal protection and motor protection switch, pedestal made of metal, splash-protected.
This text is machine translated.
