GÜDE 94604 GSX 1101 Effluent sump pump 19000 l/h 8 m
EAN:
Part number:
Item no:
Highlights & Details

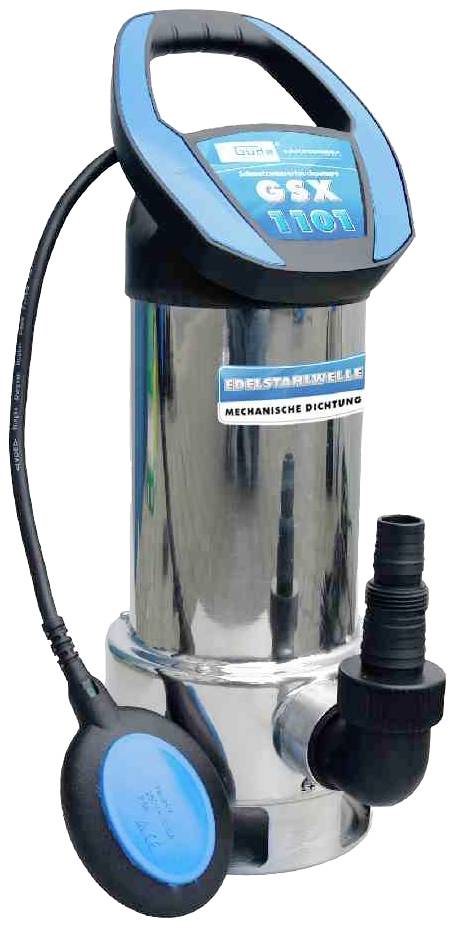

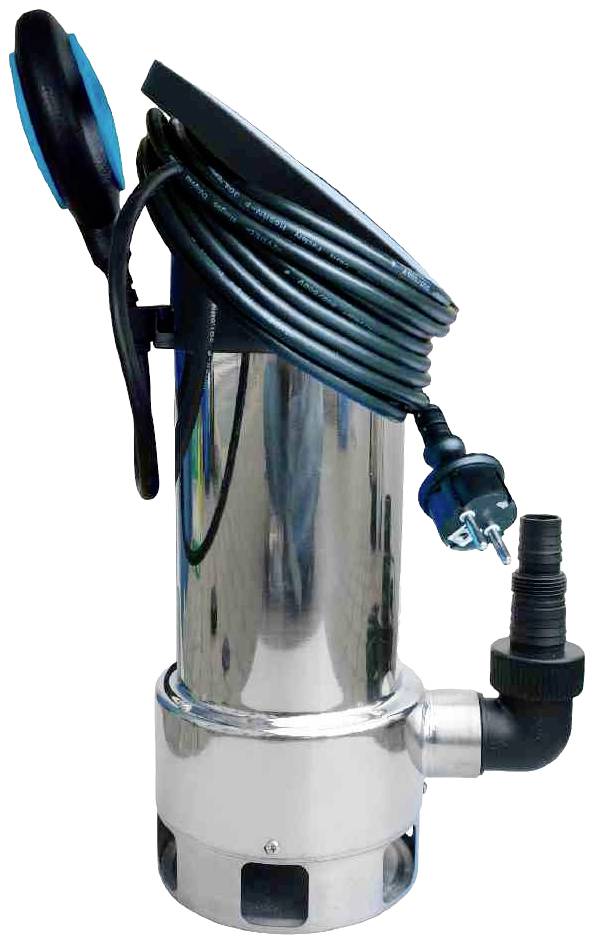

Sewage submersible pump GSX 1101

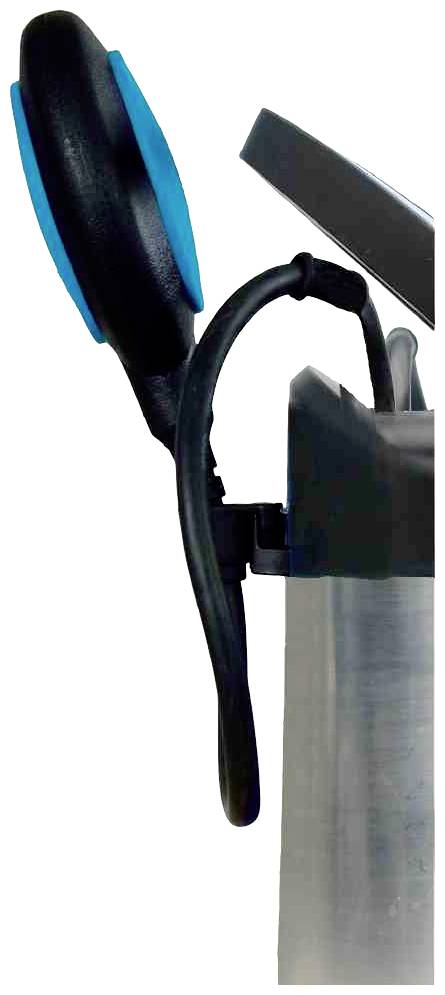

- With variable adjustable float switch10m connection cableWheel and shaft made of stainless steel
Technical specifications
- max. Water temperature 35 °C.
- Product type
Effluent sump pump
- Max. delivery head
8 m
- Max. feed rate
19000 l/h
- Max. discharge pressure
0.8 bar
- Operating voltage
230 V
- Power consumption (P1)
1100 W

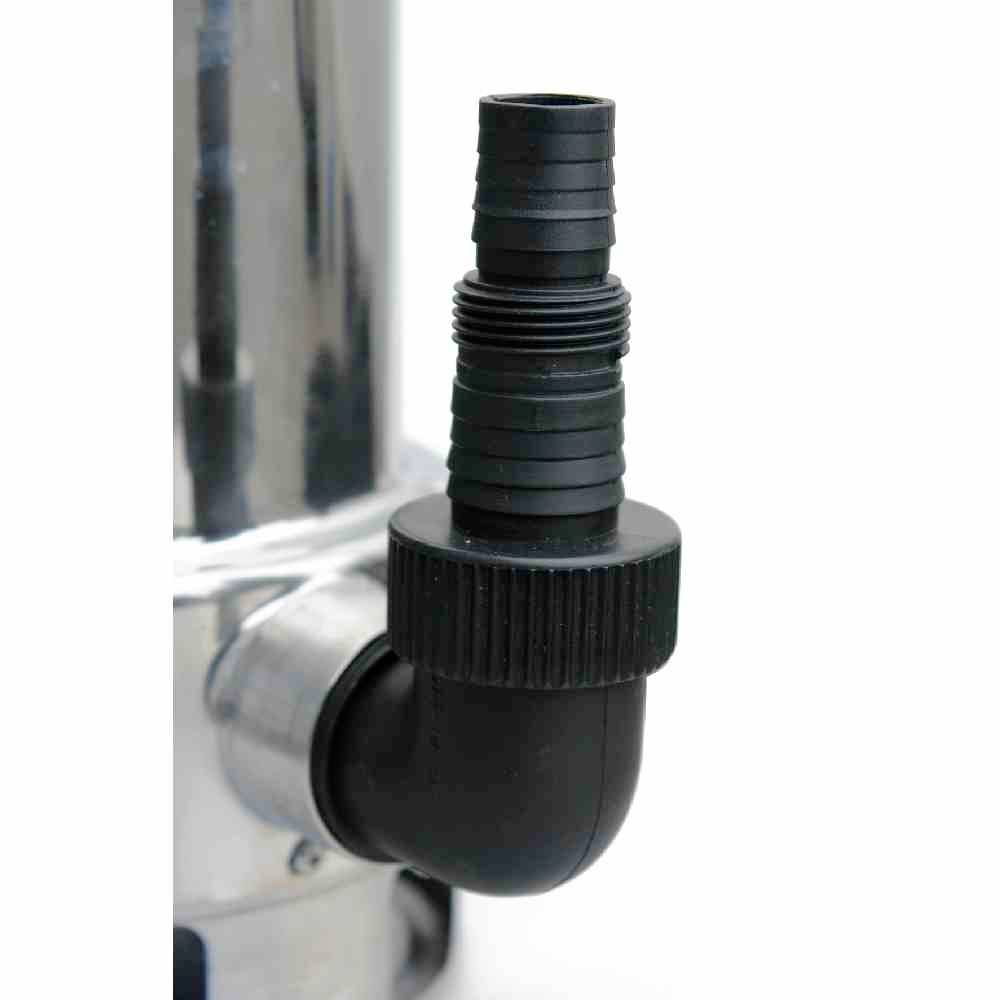

- Connection
1 1/2" female thread, 1 1/2" male thread, 32 mm, 1" male thread, 25 mm
- Max. size of solids
35 mm
- Immersion depth
7 m
- Max. cable length
10 m
- Length
245 mm
- Width
160 mm
- Height
460 mm
- Dim
(L x W x H) 245 x 160 x 460 mm
- Weight
7.7 kg
IPX8
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2749620 GÜDE 94604 GSX 1101 Effluent sump pump 19000 l/h 8 m
Description
For draining very dirty rooms, pits and garden waters.
This text is machine translated.
This text is machine translated.
Features
- With variable adjustable float switch10m connection cableWheel and shaft made of stainless steelMechanical sealThermal protectionWater level 110 mmmax. Grain size 35 mmmax. Water temperature 35 ° C.32 mm (1 1/2") IG
