GÜDE Air compressor 220/08/24 24 l 8 bar
EAN:
Part number:
Item no:
Highlights & Details
Compressor 220/08/24 oil-free 1.1 kW
- Boiler volume: 24 l
Technical specifications
- Protection type IP20eff. Delivery quantity 0 bar: 104 l/mineff. Delivery quantity 4 bar: 86 l/mineff. Delivery quantity 7 bar: 66 l/minmax. Pressure 8 barCable length 1.4 m.Noise rating LWA: 96 dB
- Product type
Air compressor
- No. of cylinders
1
1100 W
- Vaccum power
140 l/min
- Operation pressure
8 bar
- Rotational speed (max.)
2850 U/min
- Boiler volume
24 l
- Operating voltage
230 V
- Length
560 mm
- Width
310 mm
- Height
580 mm
- Weight
20 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2749608 GÜDE Air compressor 220/08/24 24 l 8 bar
Description
Compressor 220/08/24 oil-free 1.1 kW
This text is machine translated.
This text is machine translated.
Features
- Oil-free piston compressor with direct driveButtonPressure reducer - easy setting of the working pressureTank pressure and working pressure gauge1 Compressed air couplerSafety valve and condensate drain plugNon-return valveRelief valveConvenient carry handleIntegrated air filter
Scope of delivery
- Oil-free compressor with direct drive

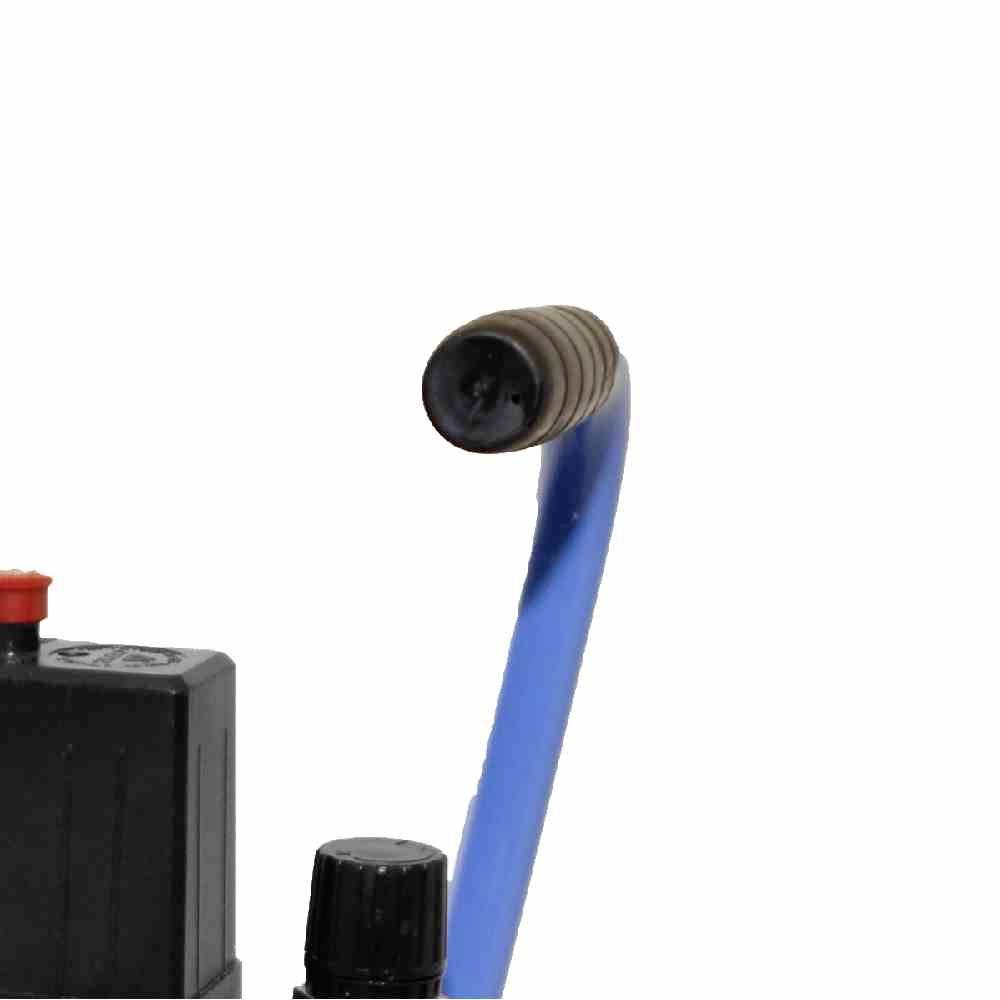

- Carrying handle
- Button

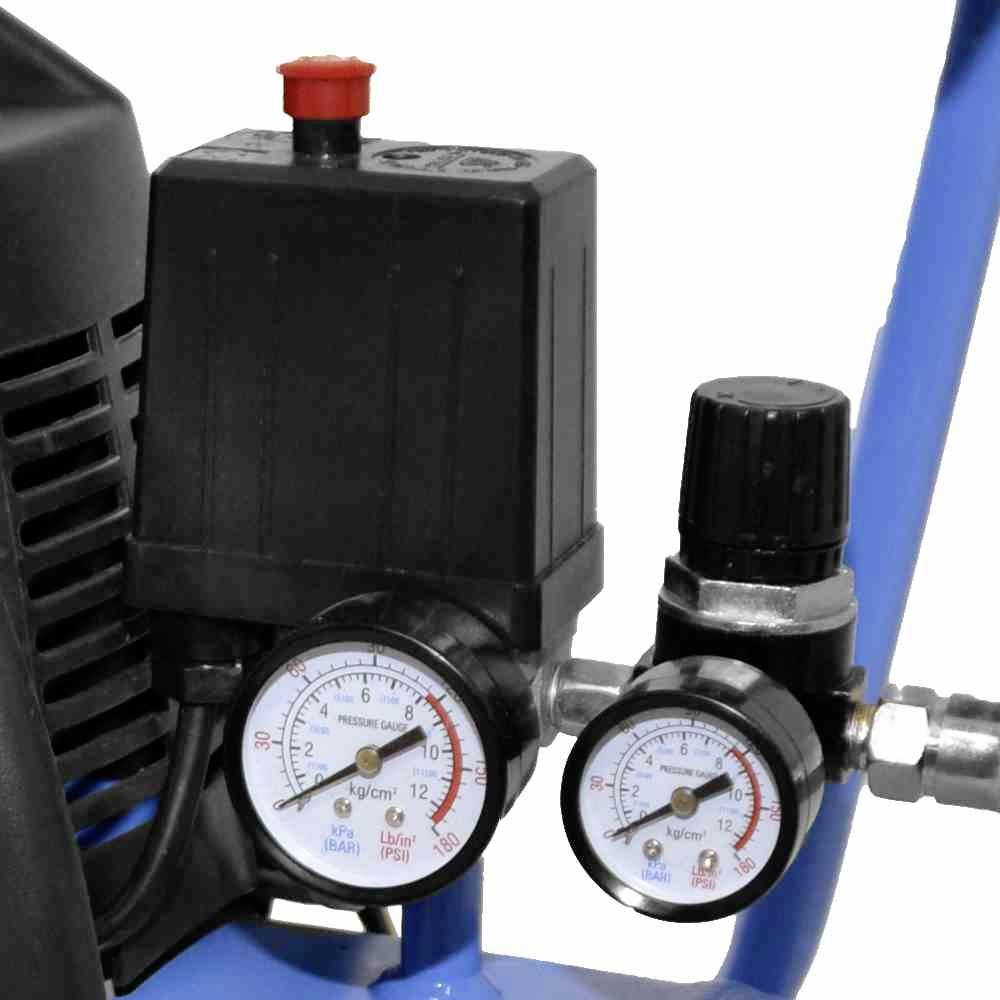

- 2 Manometer (vessel pressure and working pressure)
- Compressed air coupler
- Pressure Reducers
- Safety valve
- Non-return valve
- Condensate drain screw
- Integrated air filter
- Relief valve
- User manual.
