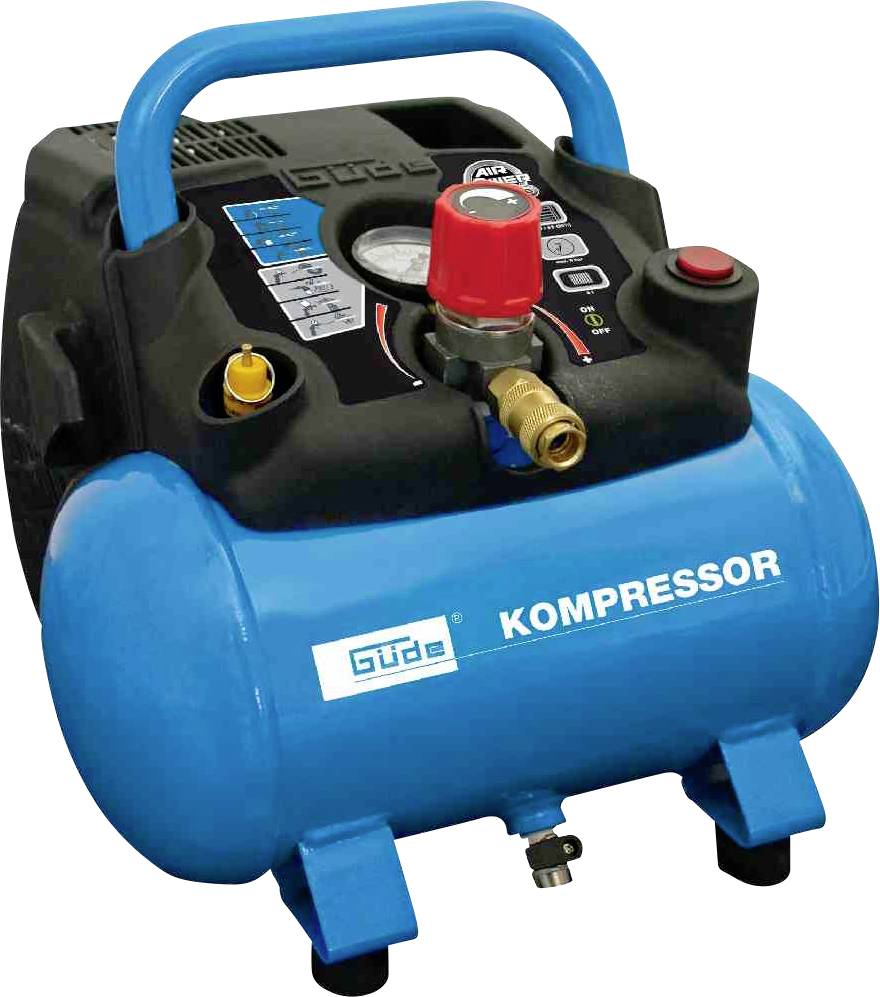

GÜDE Air compressor 6 l 8 bar
EAN:
Part number:
Item no:
Highlights & Details
AIRPOWER 190/08/6 230 V~50 Hz compressor
- Boiler volume: 6 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
1 pc(s)
1100 W
- Vaccum power
190 l/min
- Flow rate
145 l/min
- Operation pressure
8 bar
- Rotational speed (max.)
3400 U/min
- Boiler volume
6 l
- Operating voltage
230 V
- Length
340 mm
- Width
310 mm
- Height
350 mm
- Weight
8.5 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2381958 GÜDE Air compressor 6 l 8 bar
Description
Description:

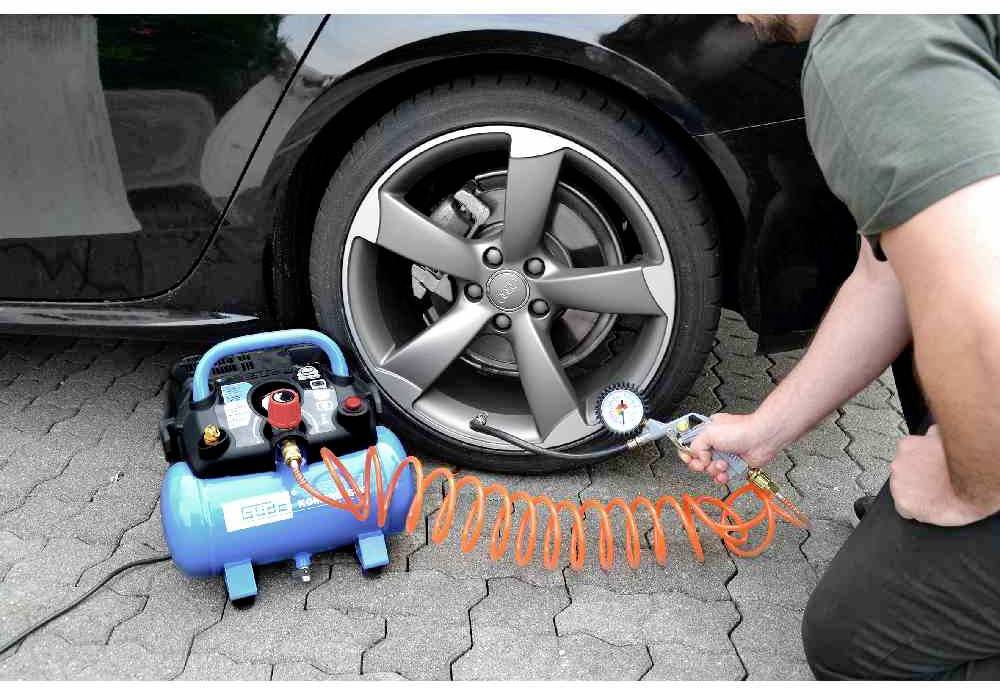

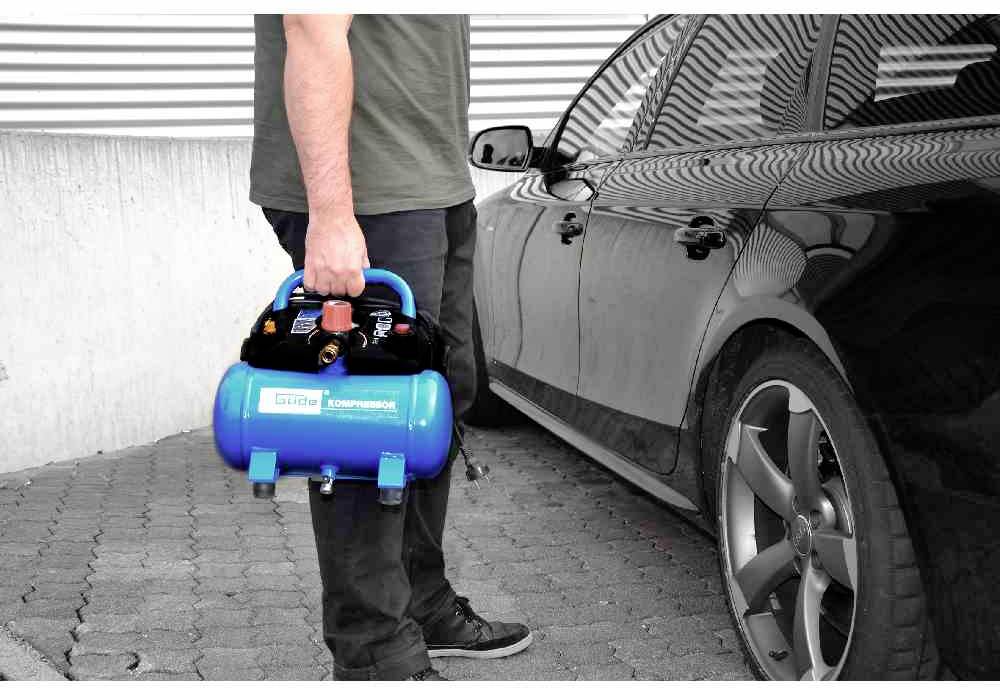

Oil-free 1-cylinder piston compressor with belt drive, 6 l air tank, carrying handle. Ready to connect with all fittings. Ideal device for service technicians for blowing out electrical systems, PC, Airbrush, Nagler and for inflating balls, tires etc. environmentally friendly and low maintenance.
Features

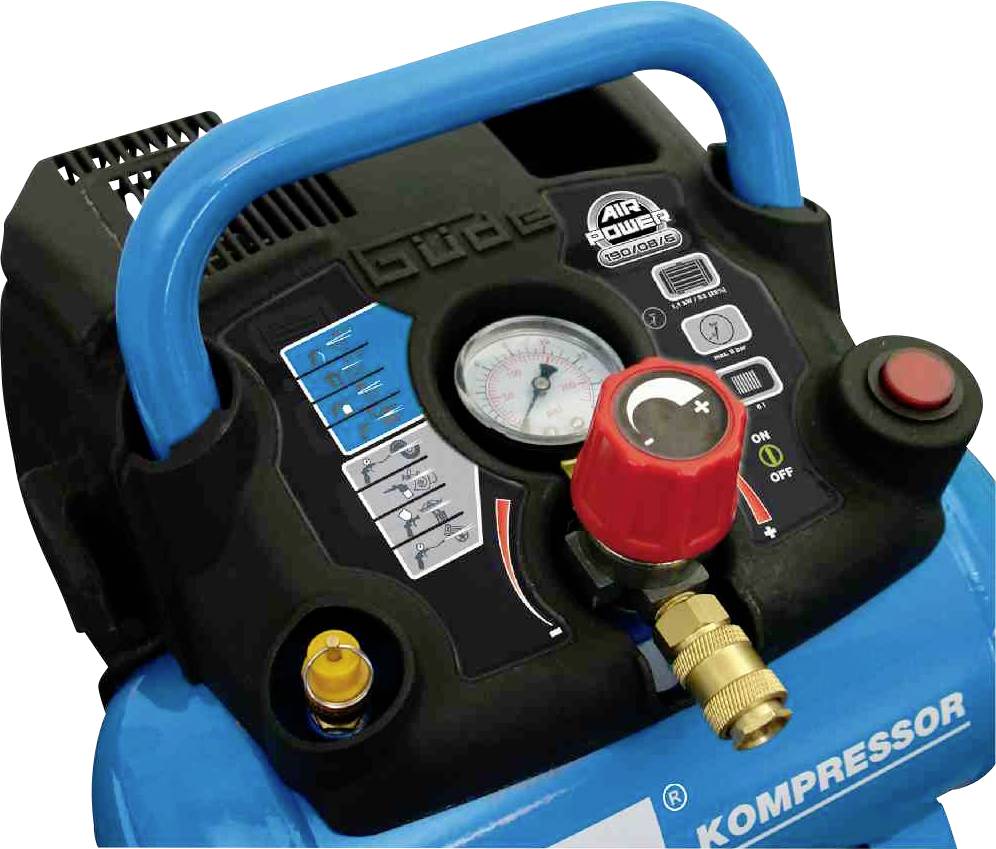

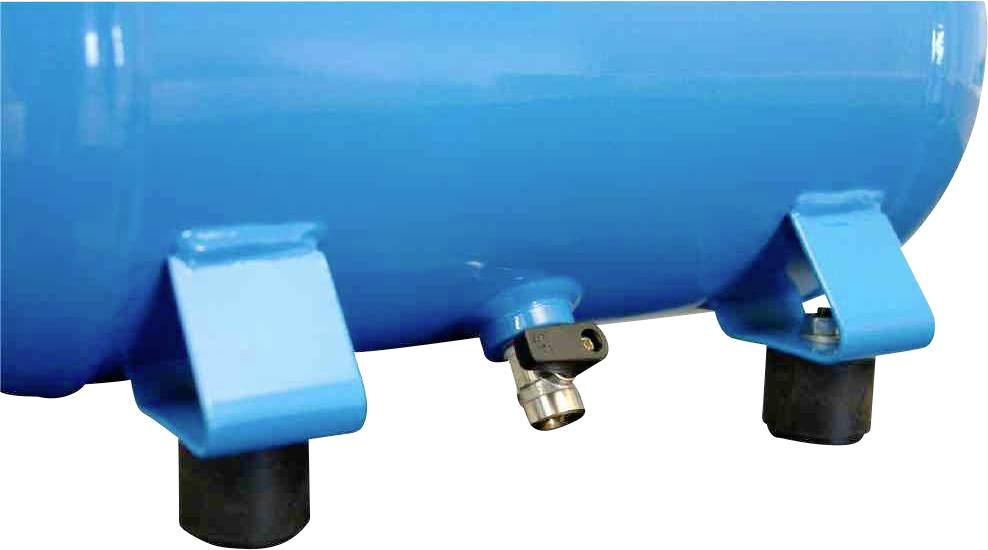

1 pressure gauge boiler pressure, pressure reducer, compressed air coupling, safety valve, condensation drain valve, On/off switch, integrated pressure switch, storage compartment, blow gun, 5 m spiral hose, Tire inflator, ball needle, bicycle valve adapter and adapter for air mattresses.
Connection/frequency 230 V~50 Hz
Protection class IP 20
Max. Power 1.1 kW/1.5 PS S3 (25%)
Engine speed: 3400 rpm
Cylinder / unit: 1/oil-free
Suction power: Approx. 190 l/min.
EFF. Delivery quantity: Approx. 145 l/min.
Max. Pressure 8 bar
Tank volume 6 l
Noise value specification: LWA 97 dB
Weight: 8.5 kg.
Dimensions L x W x H in mm: 340 x 310 x 350
This text is machine translated.
Oil-free 1-cylinder piston compressor with belt drive, 6 l air tank, carrying handle. Ready to connect with all fittings. Ideal device for service technicians for blowing out electrical systems, PC, Airbrush, Nagler and for inflating balls, tires etc. environmentally friendly and low maintenance.
Features
1 pressure gauge boiler pressure, pressure reducer, compressed air coupling, safety valve, condensation drain valve, On/off switch, integrated pressure switch, storage compartment, blow gun, 5 m spiral hose, Tire inflator, ball needle, bicycle valve adapter and adapter for air mattresses.
Connection/frequency 230 V~50 Hz
Protection class IP 20
Max. Power 1.1 kW/1.5 PS S3 (25%)
Engine speed: 3400 rpm
Cylinder / unit: 1/oil-free
Suction power: Approx. 190 l/min.
EFF. Delivery quantity: Approx. 145 l/min.
Max. Pressure 8 bar
Tank volume 6 l
Noise value specification: LWA 97 dB
Weight: 8.5 kg.
Dimensions L x W x H in mm: 340 x 310 x 350
This text is machine translated.
