Buy GW Instek 03ALCR10100S RLC circuit Digital Data logger Display (counts): 50000

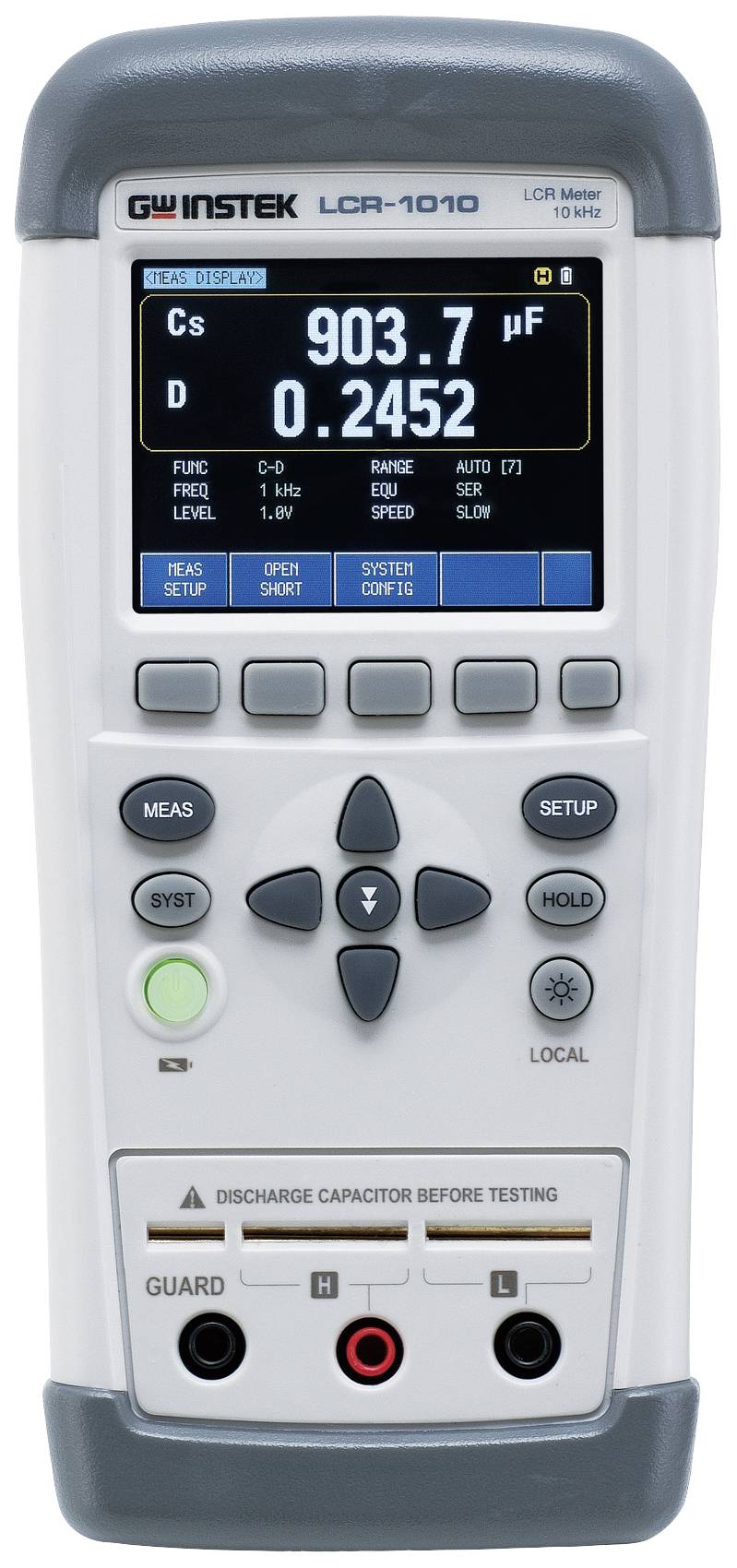

Digital LCR measuring device with display of capacitance, D-value and additional measurement readings. Contains function buttons and connections.

GW Instek 03ALCR10100S RLC circuit Digital Data logger Display (counts): 50000-1

1/2

Datasheet (PDF)

Dispatches on Mon, 2 Nov

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 382.35 / piece)

€ 382.35

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Output resistance 100 Ω
2.8 inch TFT touch LCD

Voltage reading range DC (min.): 1 V

Product type: RLC circuit

Voltage DC reading range (max.): 1 V

V AC reading range (min.): 0.3 V

V AC reading range (max.): 1 V

Reading range - resistance: 0.05 Ω- 10 MΩ

Reading range - capacity: 1 pF - 50 mF

Basic accuracy: 0.2 %

Frequency range: 50 Hz -10 kHz

Interfaces: 1x USB-C®

Height: 195 mm

Width: 90 mm

Length: 41 mm

Weight: 380 g

: Manufacturer's standards (no certificate)

Current reading: AC/DC

Type: 03ALCR10100S

Display: Digital

Display (counts): 50000

Dim: (L x W x H) 41 x 90 x 195 mm

Features: Data logger

Documents & Downloads

Datasheet

Datasheet 3031897 GW Instek 03ALCR10100S RLC circuit Digital Data logger Display (counts): 50000

User & Safety Instructions

User & Safety Instructions 3031897 GW Instek 03ALCR10100S RLC circuit Digital Data logger Display (counts): 50000

Description

GW Instek introduces the new LCR-1000 series, an LCR hand-held measurement device with automatic real-time test function. The series uses a TFT LCD and offers a basic accuracy of 0.2%. The user can choose whether to use the buttons or the touch screen. The high measurement accuracy and ease of use range is suitable for precision testing, including maintenance testing, component production, schools/research institutes, and even quality testing. The LCR-1000 series comprises 2 models. The LCR-1010 offers a testing frequency of up to 10 kHz. The series offers selectable test voltages (0.3/0.7/1.0Veff) and spare circuits (series/parallel) for an automatic measurement of capacity, inductance, resistance, reactance, impedance, Grade factor, loss factor, phase and DC resistance. The LCR-1000 series with 50,000 display values for main and auxiliary parameters and a basic accuracy of 0.2% supports 2 or 5-lead measurement. In addition, the series also offers a comparison function and a data storage function to meet the different test and measurement requirements for different types of components.
