GW Instek GCP-2525 (CE) Analog, Digital 25 MHz Digital storage (DSO) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,990.76 / piece)
€ 2,990.76
plus VAT.
14-day return policy included
Highlights & Details

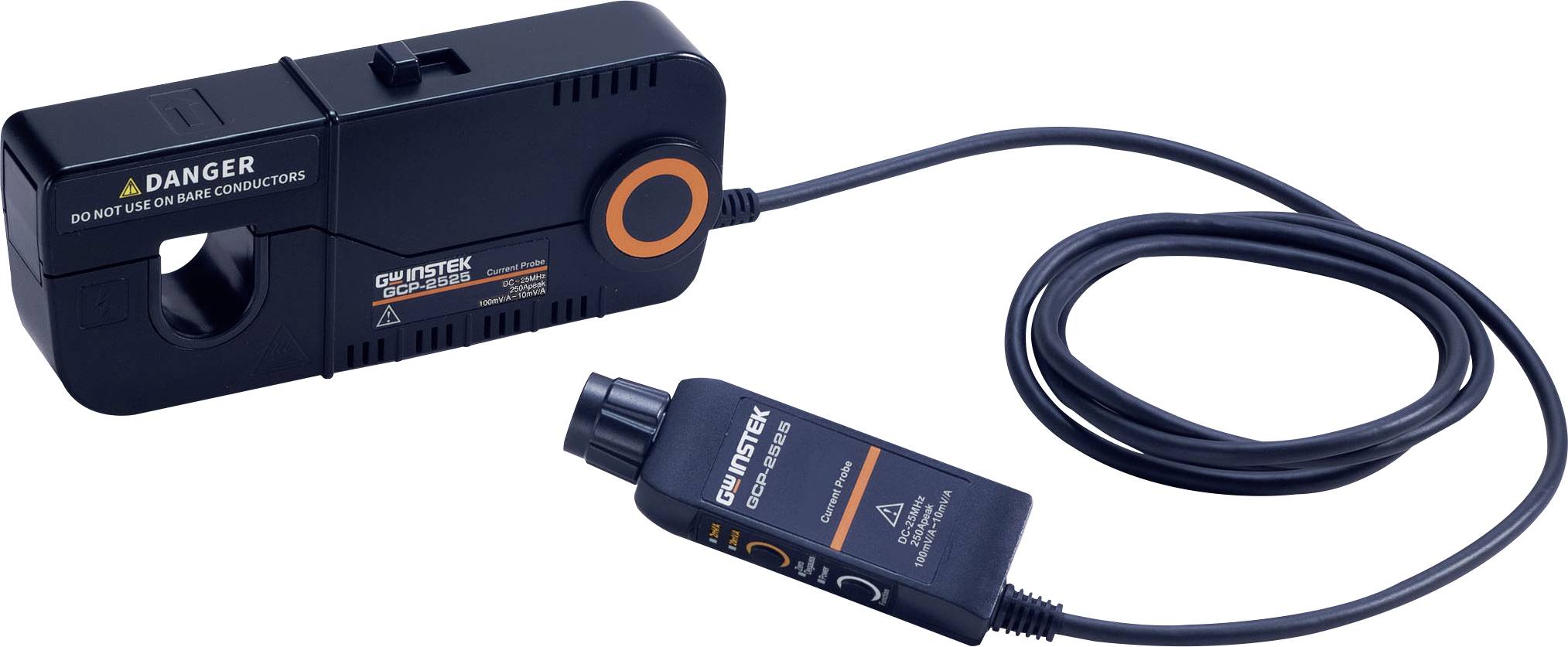

25MHz/170A AC/DC clamp-on ammeter
- 25 MHz
Technical specifications
- Max. DC + Peak AC (non-continuous): 250 A.
- Continuous maximum current (RMS): 170 Arms
- Minimum current 20 mA
- Conversion ratio: 10 mV/A (X100) and 100 mV/A (X10)
- Clamp diameter 20 mm
- Product type
Analog
- Bandwidth
25 MHz
- Oscilloscope features
Digital storage (DSO)
Manufacturer's standards (no certificate)
- Reading category
CAT II 600 V
CAT III 300 V
- Power supply (details)
DC 12V / 2A
- Dim
(L x W x H) 151.85 x 62.28 x 26.4 mm
- Weight
370
- Width
62.28 mm
- Height
26.4 mm
- Length
151.85 mm
- Type
GCP-2525 (CE)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3531101 GW Instek GCP-2525 (CE) Analog, Digital 25 MHz Digital storage (DSO) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3531101 GW Instek GCP-2525 (CE) Analog, Digital 25 MHz Digital storage (DSO) 1 pc(s)
Description

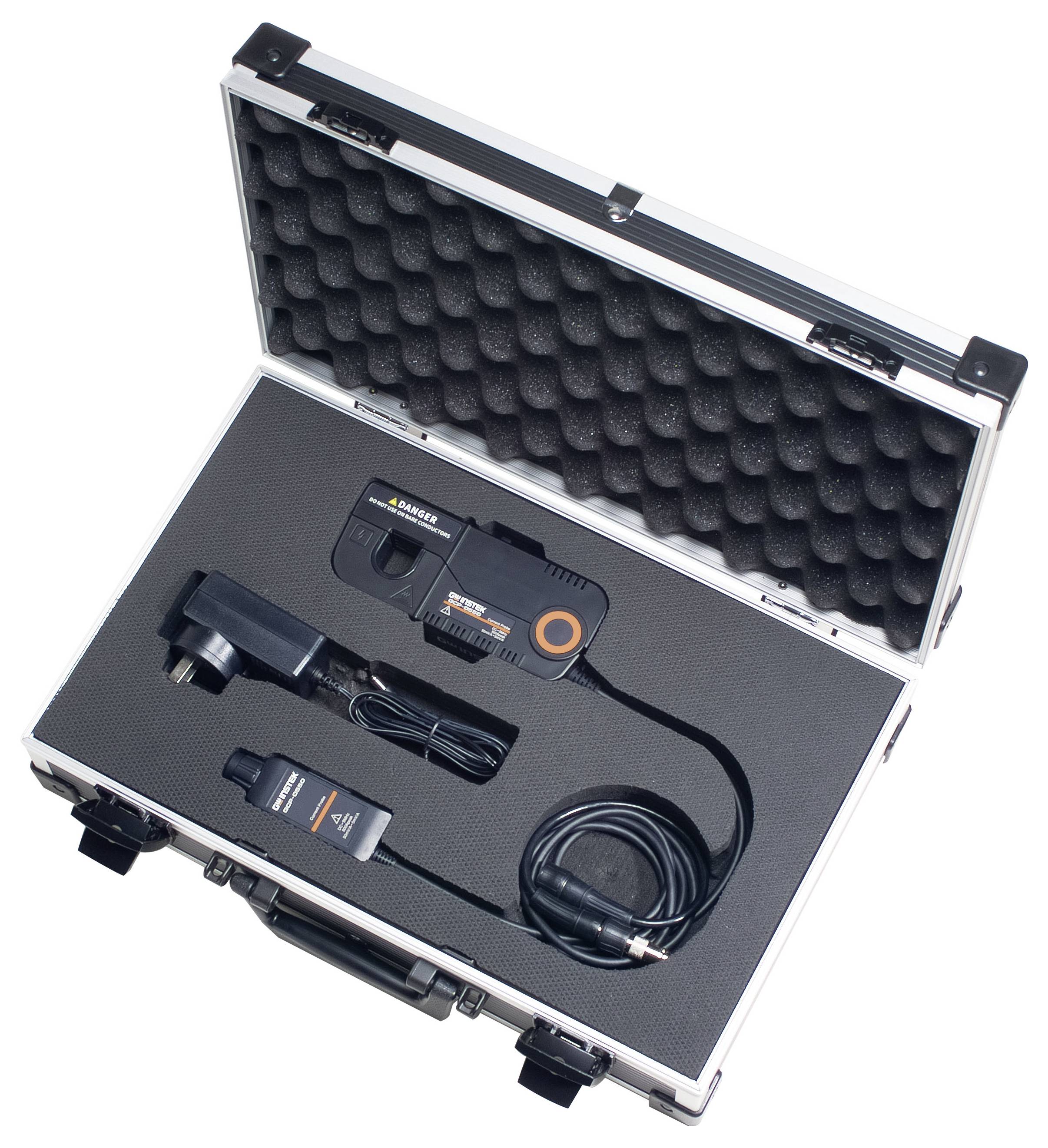

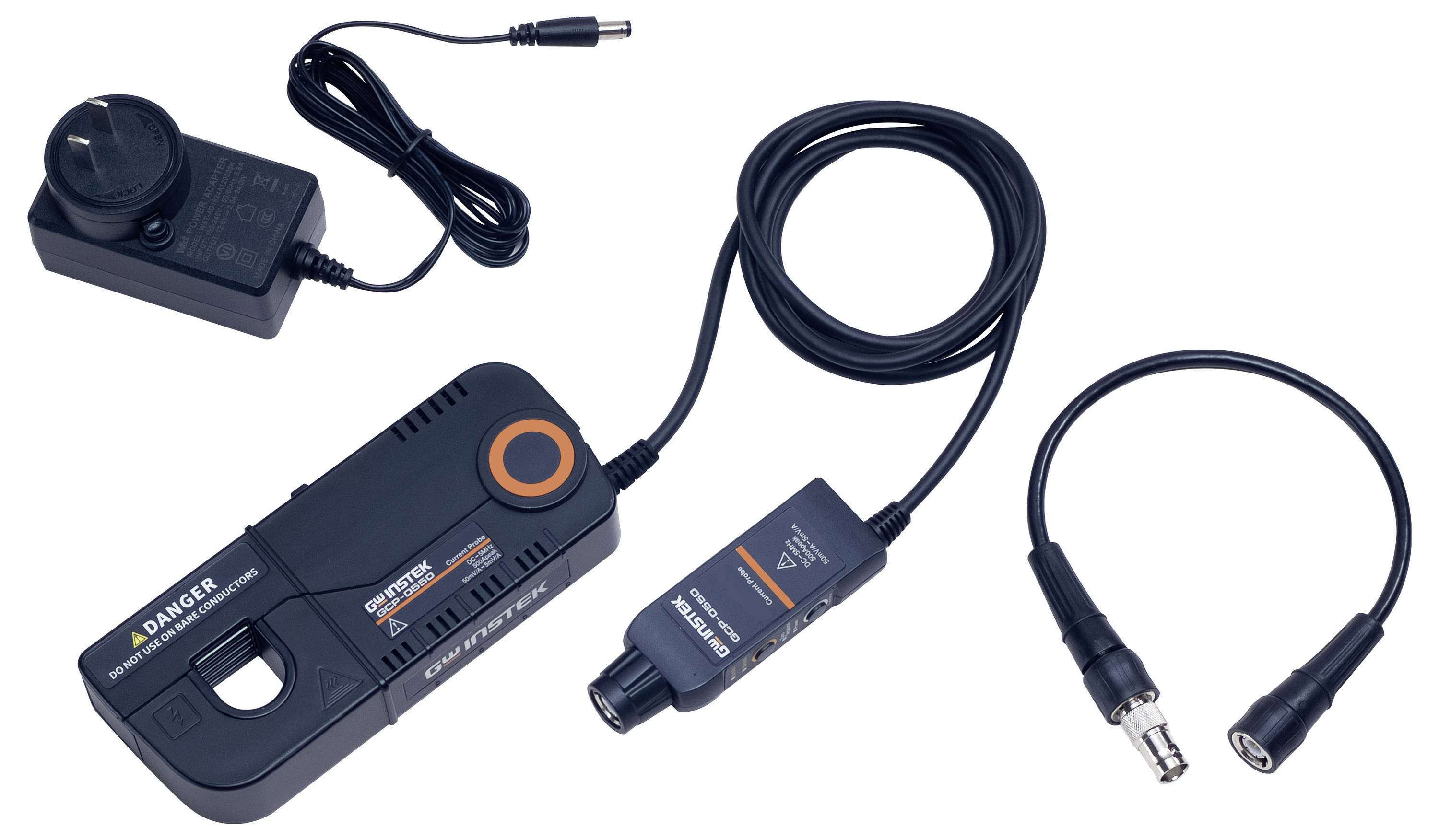

Scope of delivery
- 1 x clip-on ammeter
- 1 x power supply with interchangeable plugs
- 1 x interchangeable plugs (CN/US/UK/EU)
- 1 x BNC to BNC cable (with 50 Ohm connector)
