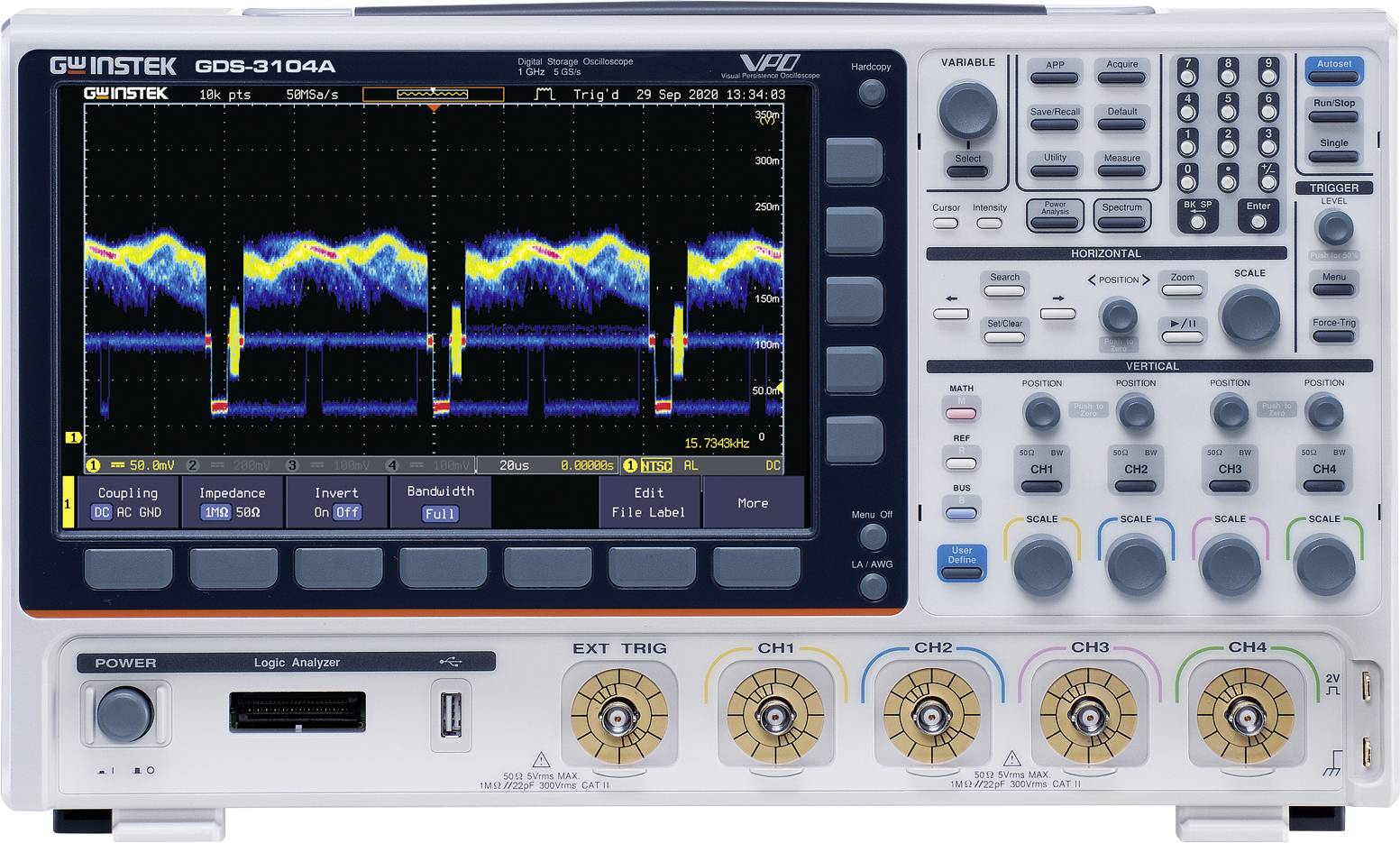

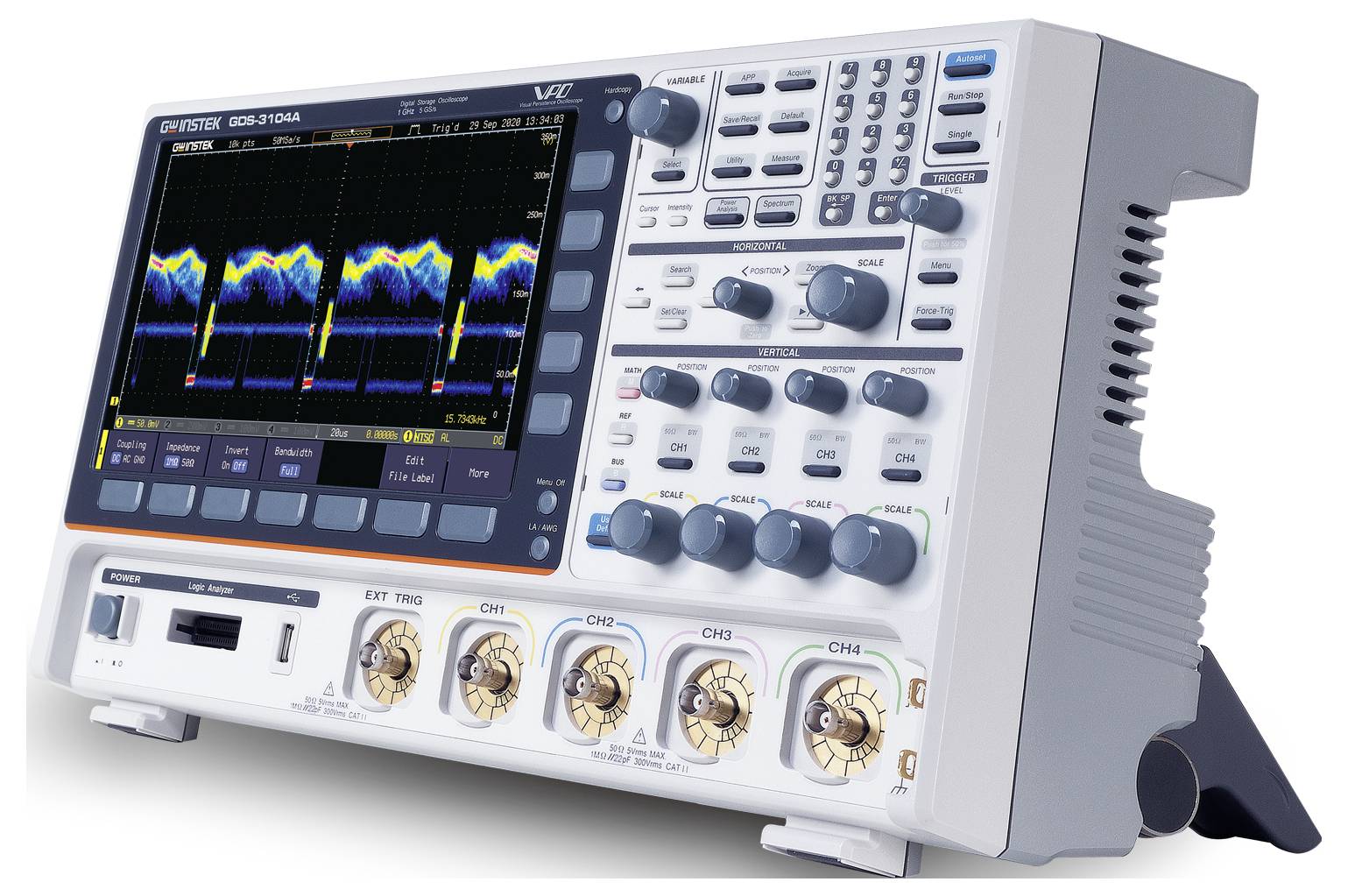

GW Instek GDS-3104A Digital 1 GHz 5 GS/s 200 MP 8 Bit 1 pc(s)

The GDS-3000A series of digital storage oscilloscopes are available in 1 GHz models with 2, 4 and 16 channel logic analyzer options. The series offers a storage capacity of up to 200 Mpts per channel, a sampling rate of 5 GSa/s (half-channels) or 2.5 GSa/s (total channels). The 10.2" TFT LCD display (259 mm) has a color display mode.

The GDS-3000A provides many features and specifications for oscilloscope measurement, including a memory depth of up to 200 Mpts per channel. Thanks to the large memory, the high sampling rate can be maintained even with low time settings. The waveform refresh rate is up to 200,000 WFM/s, and the segmented memory can capture and analyze up to 490,000 segments.

For precise measurements, the GDS-3000A has a fine-scale function. This enables the fine tuning of the vertical scale to cover the measuring range optimally and thus improve the measuring accuracy. The 10.2-inch (259 mm) display and high-resolution recording mode enable low-noise signals even when taking high bandwidth measurements.

In addition, the series offers input impedances of 1 MΩ and 50 Ω, which can be set depending upon the measuring requirement, in order to ensure an optimum impedance adjustment. The search function quickly finds the signals that correspond to the test conditions. With the cursor marking function, users can clearly read the voltage (or current), time and Delta data of each measurement point. The indicator function shows the measuring range in the corresponding section of the waveform.
