Buy GW Instek GPM-8213 Network diagnostics 1-phase

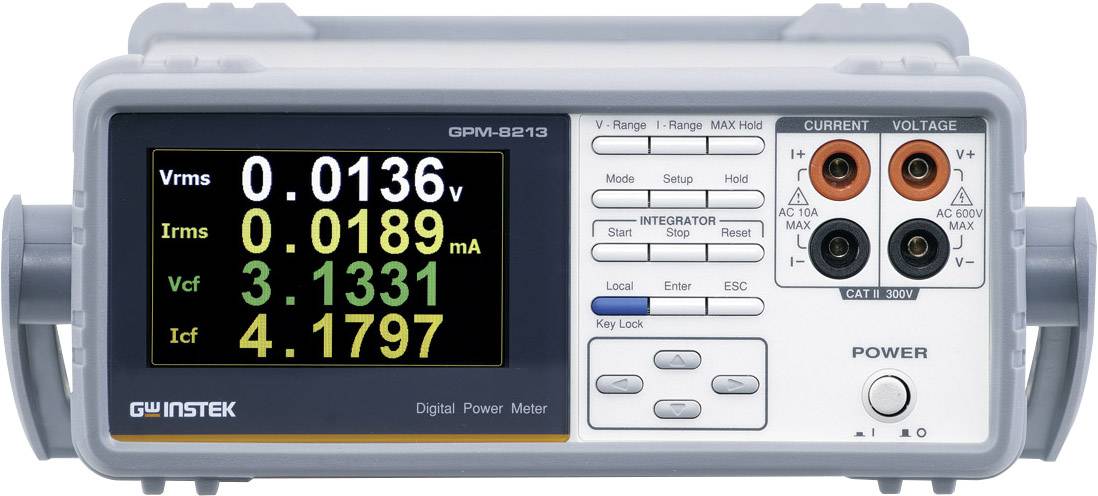

Digital performance measuring device with display, showing electrical measurement values such as Vrms, Irms, Vcf and If. Buttons and connections are visible.

A digital power measurement device with display shows Vrms as 0.0135V and Irms as 0.0190mA. Various connections and control elements are visible.

A digital performance measurement device with a display shows current and voltage readings. It has connection sockets and control buttons.

Back of an electronic measuring device with connections and warning label, including power, voltage, LAN, and RS232 ports.

1/4

Datasheet (PDF)

Fast track dispatch on Fri, 18 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 936.97 / piece)

€ 936.97

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Power measurement device GPM-8213

Two Data Display Modes
Standard: two main units of measurement + six next to measured variables
Display of test data from four different measuring points

Technical specifications

Bandwidth frequency: 45 Hz - 6 kHz
Nominal voltage: 600 Vrms
Nominal current 20 Arms
Impedance (voltage): 2.4 MΩ.

Product type: Network diagnostics

Display (details): TFT LCD 10.16 cm (4")

: Manufacturer's standards (no certificate)

Power supply (details): AC 100 to 240 V, 50 to 60 Hz

Dim: (L x W x H) 35 x 27 x 11 cm

Weight: 2.9 kg

Measurement type: 1-phase

Width: 27 cm

Height: 11 cm

Length: 35 cm

Interfaces: RS232C
USB
LAN

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1782001 GW Instek GPM-8213 Network diagnostics 1-phase

User & Safety Instructions

User & Safety Instructions 1782001 GW Instek GPM-8213 Network diagnostics 1-phase

Information

Information 1782001 GW Instek GPM-8213 Network diagnostics 1-phase

Description

The GW Instek GPM -8213 power meter is specially designed for single-phase (1P/2W) AC-power devices have been developed. Powerful functions such as 4" TFT-LCD, five-digit measuring display, 19 performance measurement parameters, integrated measuring function, high-precision voltage, current and power measurement, front and rear panel inputs and different communication connections must the user a clear, comfortable and accurate measurement of performance.
