GW Instek GPM-8310 Network diagnostics
EAN:
Part number:
Item no:
Datasheet (PDF)
3 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 1,542.02 / piece)
€
Only 3 Piece(s) available
Technical specifications
- Power supply (details)
100 - 240 V
- Dim
(L x W x H) 37.9 x 26.8 x 10.7 cm
- Weight
2.9 kg
- Height
10.7 cm
- Length
37.9 cm
- Width
26.8 cm
Manufacturer's standards (no certificate)
- Interfaces
USB
LAN
GPIB
- Product type
Network diagnostics
Documents & Downloads
Datasheet
Datasheet 2338484 GW Instek GPM-8310 Network diagnostics
User & Safety Instructions
User & Safety Instructions 2338484 GW Instek GPM-8310 Network diagnostics
Description

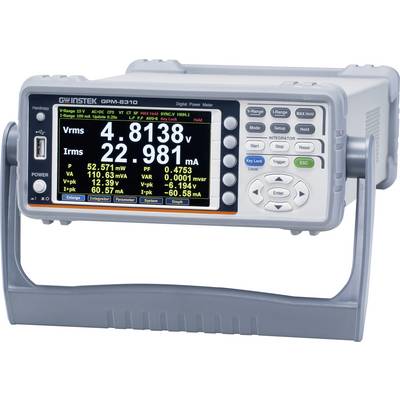

GW Instek GPM-8310 is a digital power meter for single-phase (1P/2W) AC power measurement. Features include DC, 0.1Hz~100kHz test bandwidth, 16 bit A/D and 300 kHz sampling rate. The device has a 5-inch TFT LCD screen with a five-digit measurement display and offers 25 parameters for power measurement and a high-precision measurement function. It also has waveform display capability (voltage/current/power), integration measurement capability, harmonics measurement and analysis of any order, input connections for external sensors and various communication interfaces, etc. to help users to make clear, convenient and accurate performance measurements. This power meter is among the products of the same category the most cost-effective power meter with the most complete functionalities.
This text is machine translated.
This text is machine translated.
Features
- Highly accurate measurement
- can display 10 measurement parameters (2 main measurements + 8 monitoring measurements)
- A simple oscilloscope mode is used to display waveforms for three parameters, including voltage, current and power.
