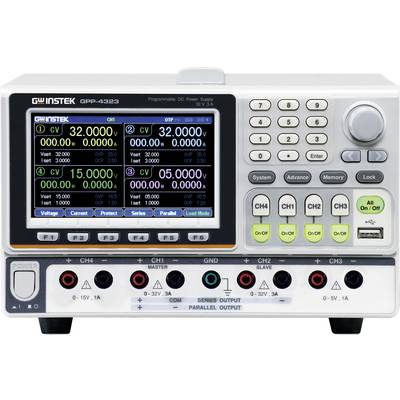

GW Instek GPP-4323 Bench PSU (adjustable voltage) 0 - 32 0 - 3 A RS232, USB programmable No. of outputs 4 x
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 735.29 / piece)
€ 735.29
plus VAT.
14-day return policy included
Highlights & Details
GW Instek lab power supply GPP-Series
- No. of outputs 4 x
- 0 - 32 / 0 - 3 A
- 0 - 32 V / 0 - 3 A
- 0 - 5 V / 0 - 1 A
- 0 - 15 V / 0 - 1 A
- RS232, USB
- programmable
Technical specifications
- Type
GPP-4323
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
4 x
- Technology
Linear regulated PSU
- Interfaces
RS232
USB
- Features
programmable
- Dim
(L x W x H) 312 x 213 x 145 mm
Manufacturer's standards (no certificate)
- Weight
7500 g
- Output voltage (max.)
32 V
- Output voltage (min.)
0 V
- Output voltage 2 (max.)
32 V
- Output voltage 2 (min.)
0 V
- Output voltage 3 (max.)
5 V
- Output voltage 3 (min.)
0 V
- Output voltage 4 (max.)
15 V
- Output voltage 4 (min.)
0 V
- Max. output current
3 A
- Output current (min.)
0 A
- Output current 2 (max.)
3 A
- Output current 2 (min.)
0 A
- Output current 3 (max.)
1 A
- Output current 3 (min.)
0 A
- Output current 4 (max.)
1 A
- Output current 4 (min.)
0 A
- Width
213 mm
- Height
145 mm
- Length
312 mm
- Residual ripple
Under 350 µVrms
- Max. temperature
40 °C
- Min. temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2111174 GW Instek GPP-4323 Bench PSU (adjustable voltage) 0 - 32 0 - 3 A RS232, USB programmable No. of outputs 4 x
User & Safety Instructions
User & Safety Instructions 2111174 GW Instek GPP-4323 Bench PSU (adjustable voltage) 0 - 32 0 - 3 A RS232, USB programmable No. of outputs 4 x
Conformity certificate
Conformity certificate 2111174 GW Instek GPP-4323 Bench PSU (adjustable voltage) 0 - 32 0 - 3 A RS232, USB programmable No. of outputs 4 x
Description
With the maximum output power of 217 W is the GPP-Series four models: GPP-1244 (0~6 0~32 V/A) for single-channel output and GPP -2323 for two-channel output (CH1: 0~32 V/0~3 A, CH2: 0~32 V/0~3 A), GPP -3323 for three-channel output (CH1: 0~32 V/0~3 A, CH2: 0~32 V/0~3 A, CH3: SUPPORTS 1.8V ensuring, 2.5V, 3.3V, 5.0 V/5A) and GPP-4277 for four-channel output (CH1: 0~32 V/0~3 A, CH2: 0~32 V/0~3 A, CH 3:0~5 V/0 ~ 1 A, CH4: 0~15 V/0~1 A). This series offers not only a high program resolution (1 mV/0.1MA) and re-read resolution (0,1mV/0.1MA), but also ≦ ≦ is characterised by an optimal noise behavior at low shaft lengths of 350 uVrms/2 mArms and a transient output power of ≦. For each channel is an independent Ausgangs-Ein/off switch.
This text is machine translated.
This text is machine translated.
Features
- 4.3" (10.9cm) TFT LCD display
- Supports setting value, measured value and output waveform display
- Charging function (CC, CV, CR mode)
- Resolution setting: 1mV/0.1mA; readback resolution: 0.1mV/0.1mA
- Low noise 350 Vrms/ 2mArms ≦
- Transient response time 50 s
- Tracking series and parallel function without additional external cabling
- Use of hardware for the implementation of overvoltage protection/over-current protection/over-temperature protection
- Delay function/output monitoring function/output recorder function
- Intelligent temperature controller fan effectively reduces noise
- Sequential output function and built-in 8-template waveforms
- The output recorder function records the output voltage and current parameters with a minimum recording interval of 1 second
- Provides 10 sets of memory for each sequence/delay/recorder/panel setting conditions.
- Standard: RS-232, USB, external inputs and outputs
- This text is machine translated.
Scope of delivery
- User manual · Power cord · 2x measuring lead GTL-203 A · 2x measuring lead GTL-204 A · 1x measuring lead GTL-201 A
