Buy GW Instek GSP-8800 (CE) Spectrum analyzer 8.0 GHz

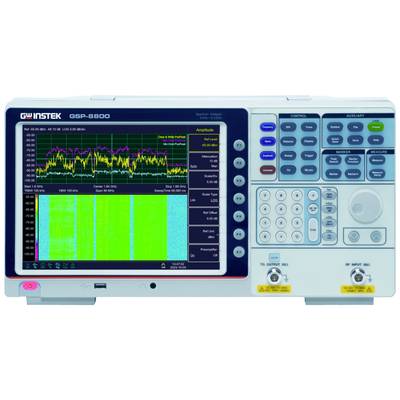

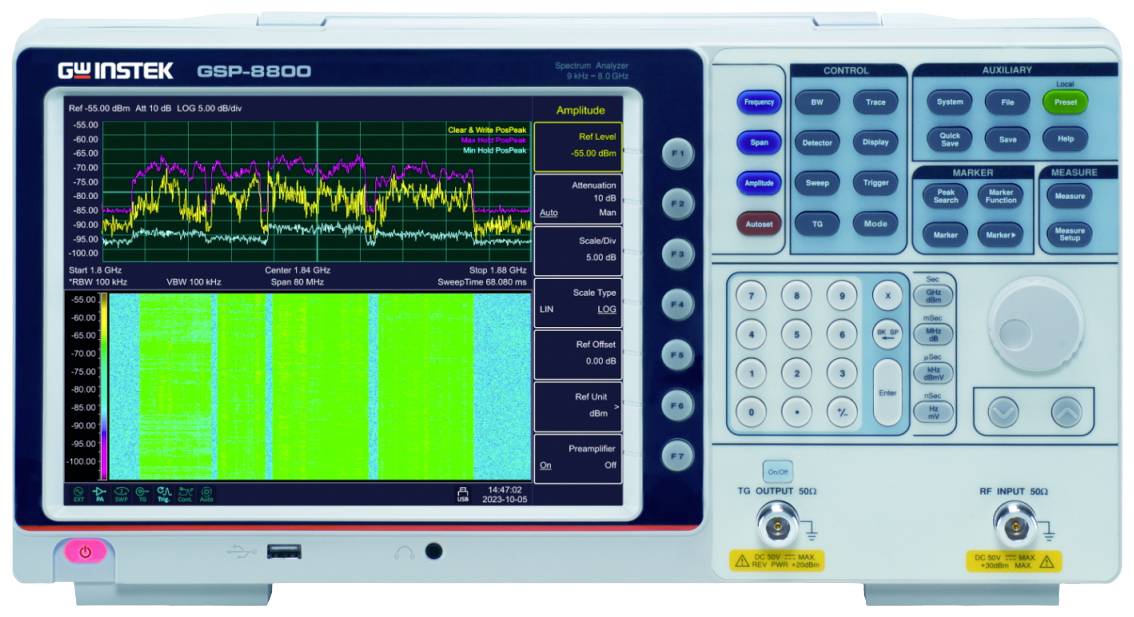

A spectrum analyser displays a coloured frequency diagram on the screen. Various control buttons are visible on the right side.

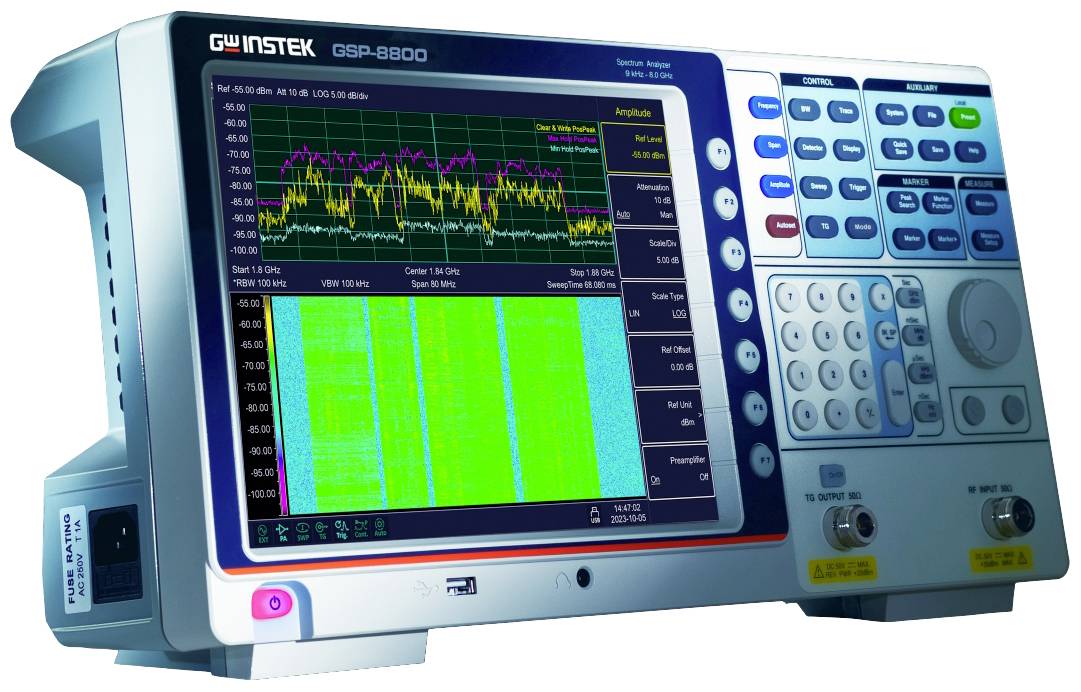

Electronic measuring device with screen displaying complex graphics and numbers. Control buttons on the right. Used for frequency analysis.

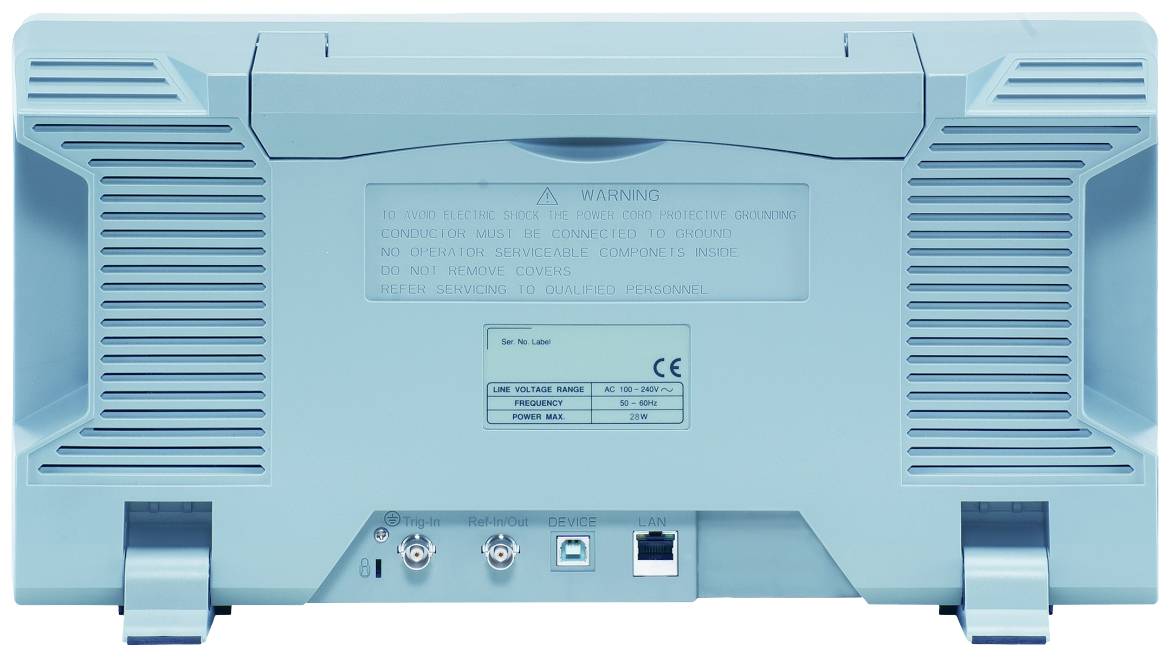

Back of an electronic device with connections and warning notices. Contains coaxial sockets, an Ethernet port, and power socket.

1/3

Datasheet (PDF)

Dispatches on Fri, 16 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 6,609.24 / piece)

€ 6,609.24

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Dimensions depth 115 mm
Power consumption: 28 W.
Display 10.4 " TFT LCD
Max. input voltage 50 V/DC

Product type: Spectrum analyzer

Bandwidth: 8.0 GHz

Dim: (W x H) 421 mm x 221 mm

Weight: 5 kg

Width: 421 mm

Height: 221 mm

Documents & Downloads

Datasheet

Datasheet 3098706 GW Instek GSP-8800 (CE) Spectrum analyzer 8.0 GHz

User & Safety Instructions

User & Safety Instructions 3098706 GW Instek GSP-8800 (CE) Spectrum analyzer 8.0 GHz

Description

The GSP-8000-series, the brand-new general spectrum analyzers by GW Instek, offers three frequency ranges, namely 8.0GHz, 3.8GHz and 1.8GHz. The series is suitable for teaching research, R&D verification and testing requirements of high frequency products during the production and development phase. The series offers 1Hz ~ 1MHz resolution bandwidth (RBW), 10Hz ~ 3MHz video bandwidth (VBW), - 104dBc/Hz phase noise, a 20dB preamplifier and the lowest background noise of - 160dBm/Hz (typical).

This text is machine translated.
