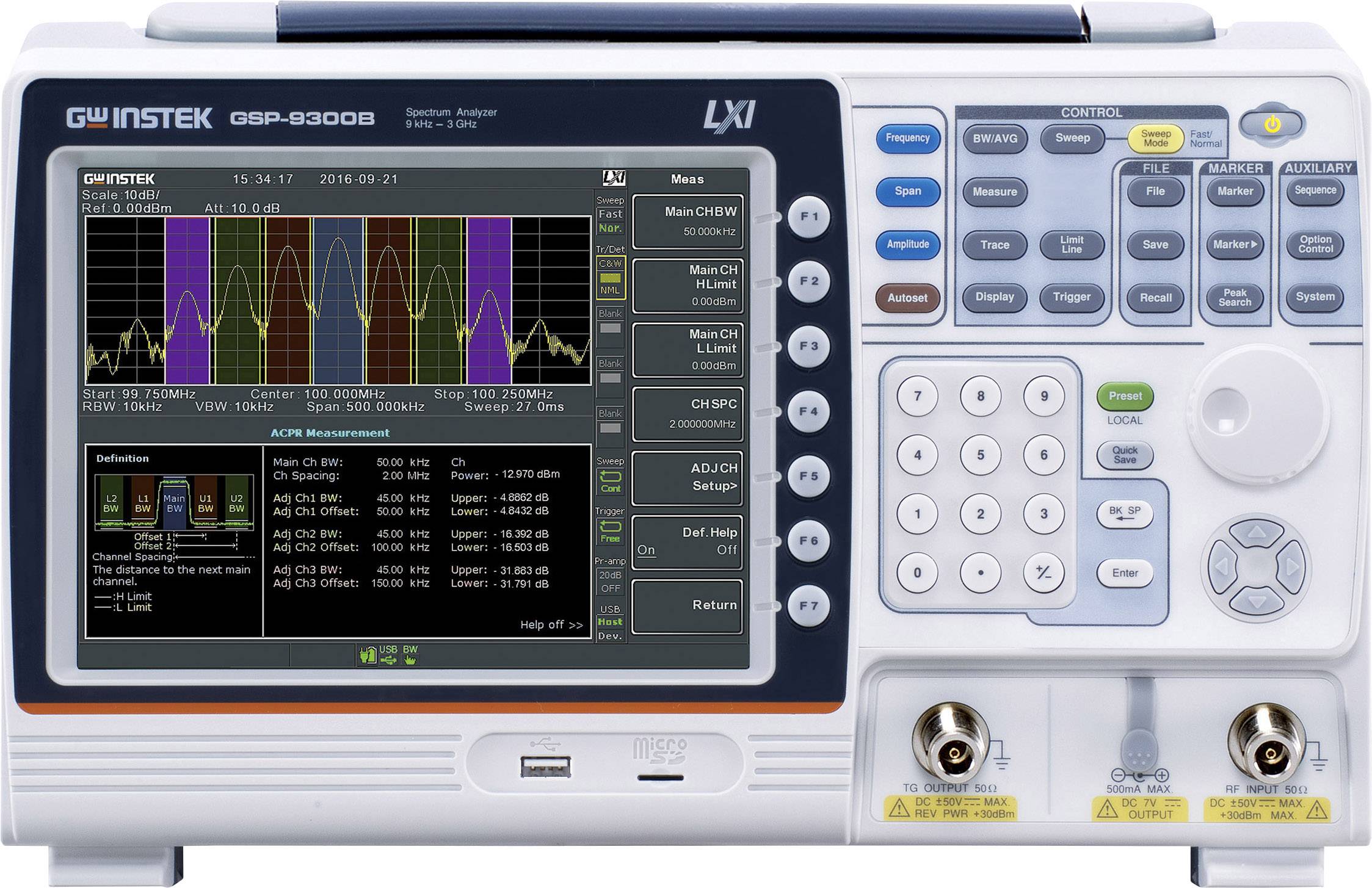

'Spectrum analyser with digital display, showing graphical lines and parameters for measurement technology, equipped with buttons and connectors.'

An oscilloscope displays multiple waveforms on a screen. On the right, various control buttons are used to operate the device.

'Oscilloscope with screen display of various measurement data and control elements. Suitable for electrical signal and waveform analysis.'

Back of an electronic device with various connection options, including VGA, DVI, and coaxial ports.

1/4

Dispatches on Tue, 29 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 4,088.24 / piece)

€ 4,088.24

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Spectrum analysis GSP-9300B-TG

Frequency Range: 9kHz ~ 3 GHz with Tracking generator
0.025ppm Frequency Stability and 1ppm aging Rate
Built-in Preamplifier, 50dB Attenuator, and Sequence Function
RBW: 1Hz ~ 1MHz

Technical specifications

Color Display: 21.3 cm, 800 x 600 pixels

Bandwidth: 3 GHz

No. of analogue inputs: 1

: Manufacturer's standards (no certificate)

Dim: (W x H) 350 mm x 210 mm

Weight: 4.5 kg

Width: 350 mm

Height: 210 mm

Interfaces: RS232
USB
USB host
DVI
LAN
microSD slot

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1601368 GW Instek GSP-9300BTG Manufacturer's standards (no certificate) 3 GHz

Description

GSP-9300B is a 3GHz spectrum analyzer to meet basic RF measurement requirements. It provides the frequency stability of 0.025ppm; the aging rate of 1ppm/year; a built-in preamplifier; the base noise of -149dBm/Hz, and more than 20 measurement applications, including AM/FM modulation signal analysis, signal channel analysis, and CATV parameter test. While collocating with TG option, GSP-9300B can conduct frequency response or power linearity tests for components.

Features

0.025 ppm frequency stability and 1 ppm aging rate
Built-in preamplifier, 50 dB attenuator and sequence function
RBW: 1 Hz ~ 1MHz
Sensitivity: -149 dBm/Hz (@ PreAmp on)
Built-in AM/FM demodulation & Analysis
Built-in P1 dB-point, harmonic, Channel Power, N dB bandwidth, OCBW, ACPR measurements, SEM, TOI, CNR, CTB, CSO, Noise Marker, Frequency Counter, Time Domain Power, Gated Sweep
Built-in Spektrogramm-, topography and dual view display modes.
